ZXMW  ER2020E ER2020H ODU IDU NR9150 HRU3D HRU3TD  Digital Microwave Radio Transmission System  Product Description

E-band Products

ZXMW ER2020E/H are designed based on ZTE's latest digital E-band transmission platform, support built-in Wi-Fi module, MPLS, IP routing, Segment Routing and SDN. They work on (71-76) / (81-86)GHz frequency band, with 62.5/125/250/500/750/1000/1500/2000 MHz (ETSI) channel spacing. 10 levels of coding & modulation (from 1/4 BW BPSK to 1024QAM) with ACM & AMB functionality provides high throughput and good avaiability.

ZXMW  ER2020E ER2020H ODU datasheet IDU NR9150 HRU3D HRU3TD

ZTE NP9150 TECHNICAL SPECIFICATIONS

• Easy Deployment: All-outdoor design, zero footprint installation; Both PoE and DC power supply are supported.

• High Capacity: 10 Gbps per channel, 20Gbps with XPIC. When combining with normal band microwave links (MBL), 20Gbps+ capacity can be reached.

• Long Distance: Industrial leading Tx power provide longer link distance - max. 22dBm Tx. power on ER2020E, Max. 26dBm on ER2020H. MBS technique makes big size antenna avaiable for long distance links.

• Rich Interfaces: 1xGE (e) with PoE + 1xGE (e) + 1x10GE (o)/25GE (o)/eCPRI + 3xGE (o)/10GE(o) /eCPRI，suitable for acces and aggregation scenario.

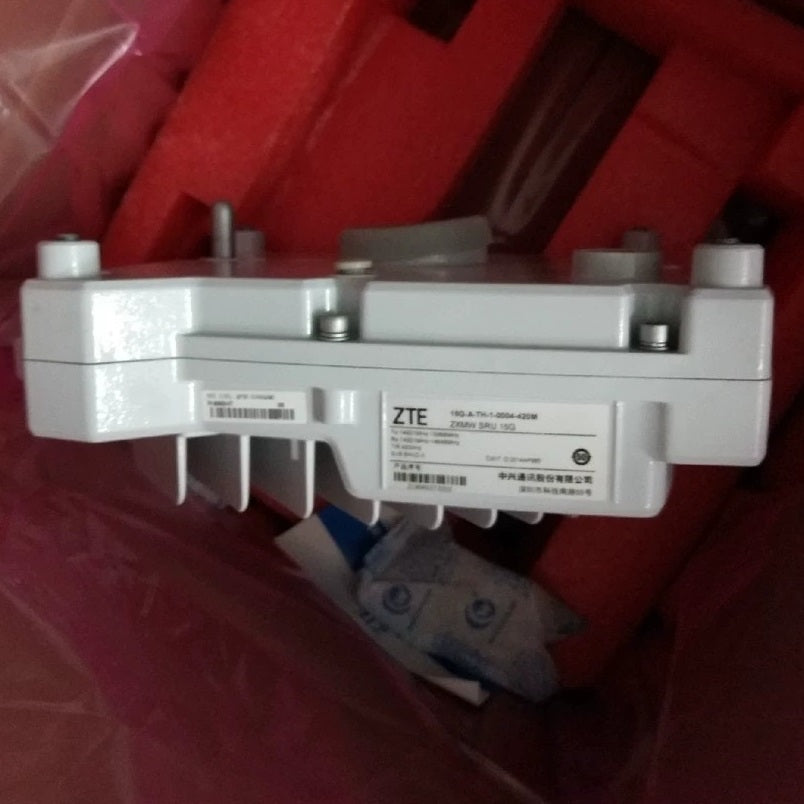

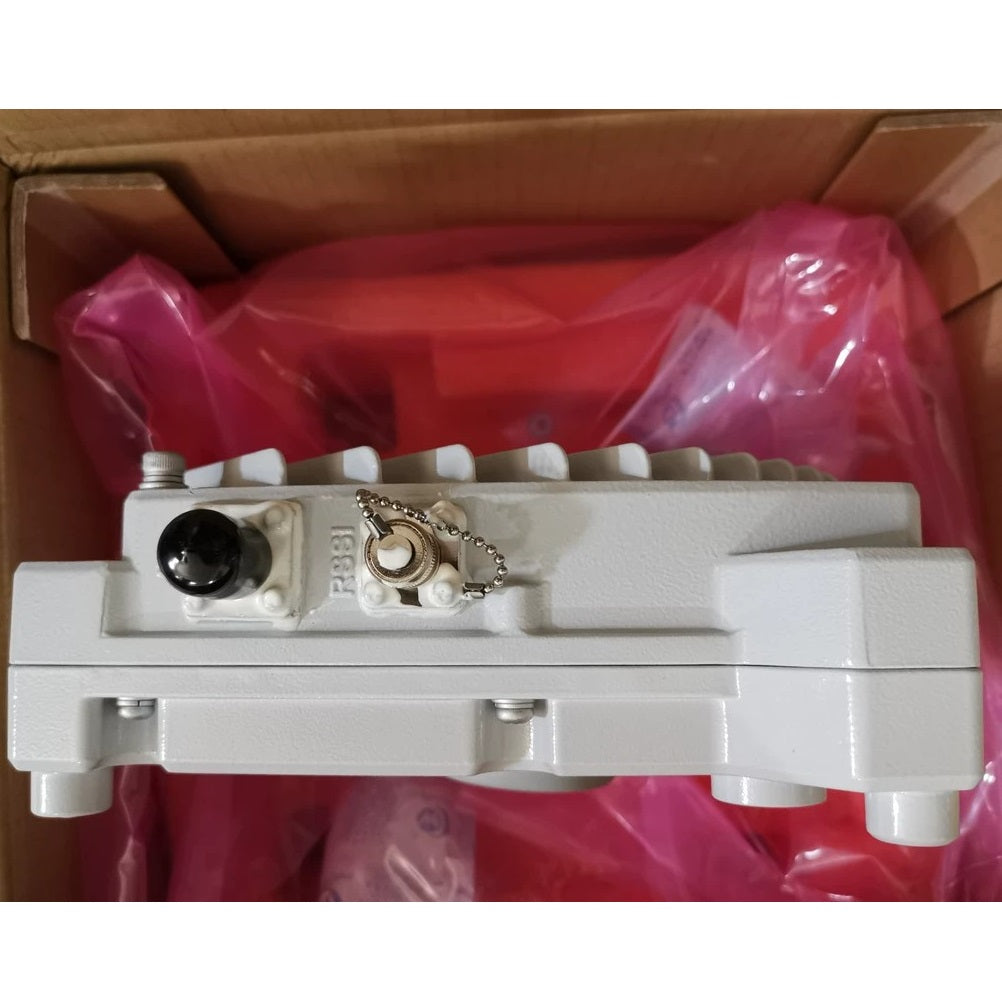

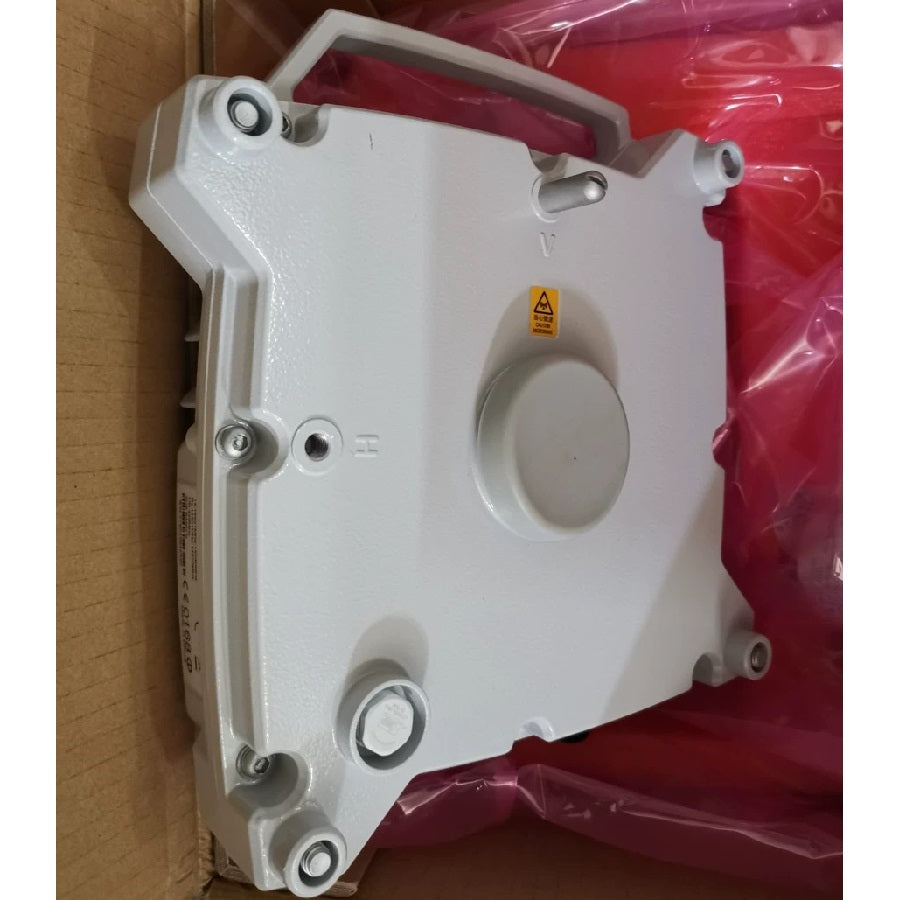

ZXMW SRU 15G-C-TH-1-0004-420M ODU QPSK-2048QAM
Tx:15201MHz-15349MHz
Rx:14781-MHz-14929MHz
T/R:420MHz
SUB BAND:C

ZXMW SRU 15G-A-TH-1-0004-420M ODU
Tx:14291MHz-15068MHz
Rx:14501-MHz-14648MHz
T/R:420MHz
SUB BAND:A

ZXMW SRU 15G-A-TH-1-0003-420M ODU
Tx:14291MHz-15068MHz
Rx:14501-MHz-14648MHz
T/R:420MHz
SUB BAND:A

ZXMW SRU 15G-D-TH-1-0003-420M ODU
Tx:14291MHz-15040MHz
Rx:14501-MHz-14620MHz
T/R:420MHz
SUB BAND:D

ZXMW SRU 15G-A-TL-1-0003-420M ODU
Tx:14501MHz-1648MHz
Rx:14921-MHz-15068MHz
T/R:420MHz
SUB BAND:A

ZXMW SRU 13G-C-TL-1-0004-266M ODU
Tx:12835MHz-12919MHz
Rx:13101-MHz-13185MHz
T/R:266MHz
SUB BAND:C
