Product:
Rectifier Module
Model:
Rectifier Module ZXD3000 (V5.5) 53.5V 3000W
Description:
ZXDU68 53.5V 3000W Rectifier Module ZXD3000 (V5.5) power supply
Price:
Regular price
$1,700.00 USD
ZXDC48 FB101 -48V 100A lithium iron phosphate batteryZXD3000 V5.0 DTU 180000011285
ZXD3000 V5.1 623202002101 V1.0
ZXD3000(V5.1 R02) 22901970XXXX
ZXD3000 V5.5 R02 DTU 180000403582
ZXD3000 V5.5 R03 180000409566
ZXD3000 V5.6 180000339153
ZXD3000 V5.8 180000433096
ZXD3000 V6.0(R03)210097 892258
ZTE ZXD1500(V4.2) 50A Rectifier 502020000001
ZTE ZXD030 S480 Rectifier Module 502020000002
ZTE ZXD2400(V4.2) 50A Rectifier 120750010038
The ZXD3000 rectifier is used in a communications system. It converts AC input power to DC output power. The rated output voltage and rated output power of the ZXD3000 rectifier is 53.5 V and 3000 W, respectively.
In most cases, the ZXD3000 rectifier is used together with a power supply system. As the core power unit, it determines the input and output indexes of the entire power supply system. The ZXD3000 rectifier can be widely used in the power supply systems of communications devices including switch devices and base station
ZXD3000 Short Brief:
The ZXD3000 (V5.0) rectifier automatically adjusts its operational status according to the
AC input voltage.
The input features include the under-voltage protection, over-voltage protection, and power limit.

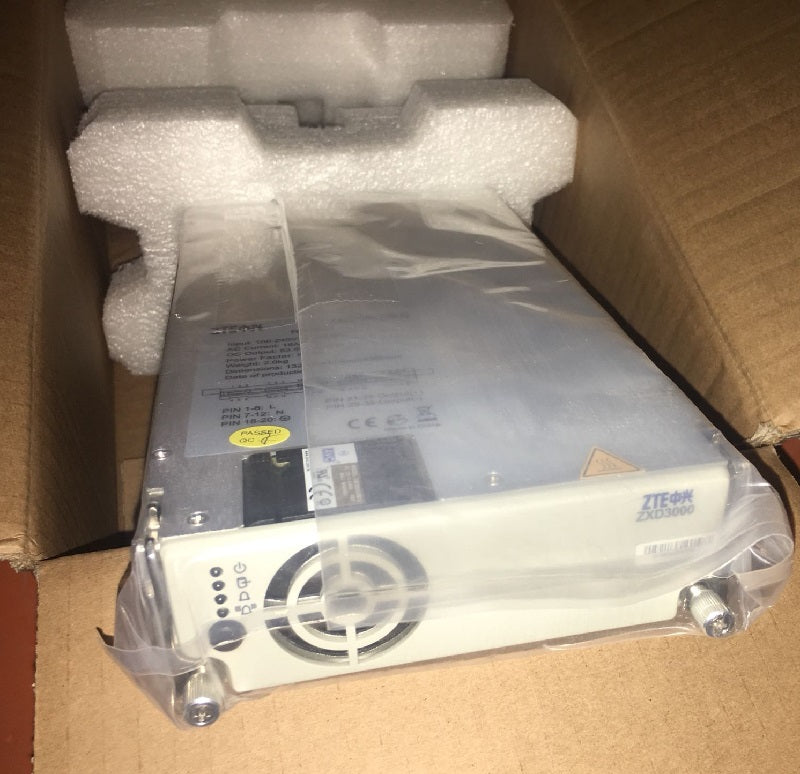

ZXD3000 rectifier external view
ZXD3000 Descriptions of the Functions of Each Component
|
No. |
Component |
Function Description |
|
1 |
Fan |
Dissipates heat in the ZXD3000 rectifier. |
|
2 |
Indicator |
Indicates the operating status of the ZXD3000 rectifier. |
|
3 |
QUY button |
After the ZXD3000 rectifier is installed in the DC power supply system, you can press the QUY button. The operating information and fault information of the ZXD3000 rectifier is displayed on the monitoring unit of the DC power supply system. You can enter the parameter setting menu and modify the ID address of the ZXD3000 rectifier. |
|
4 |
Wrench |
Holds the ZXD3000 rectifier during installation or removal, and fixes it to slots. |
|
5 |
Ventilation hole |
Helps heat dissipation in the ZXD3000 rectifier. It cannot be covered by anything. |
|
6 |
Interfaces |
Electrical and signal interfaces, including the AC input interface, DC output interface and hot-pluggablecharging interface. |

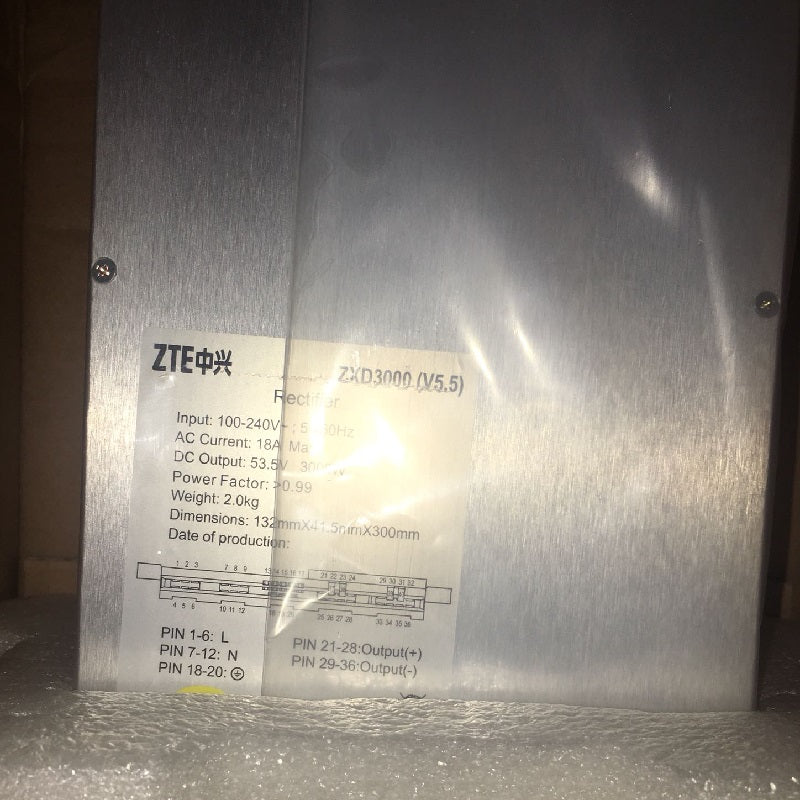

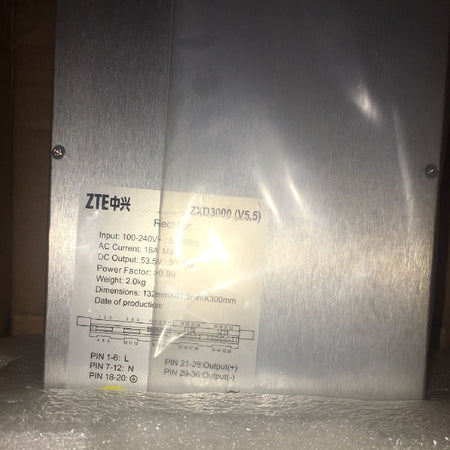

ZXD3000 Dimensions: 41.5 mm (Height) × 132 mm (Width) × 300 mm (Depth). ZXD3000 rectifier. Weight: 2 kg.
ZXD3000 Technical Specifications
ZXD3000 AC Input Properties
|
Property |
Description |
|
Input mode |
Single-phase three-wire system (L/N/PE) |
|
Input voltage |
l Rated input voltage: 100 V–240 V l Input voltage: 85 V–295 V |
|
Maximum input current |
18 A |
|
Frequency |
l Rated frequency: 50 Hz/60 Hz l Frequency range: 45 Hz–66 Hz |
|
Input PF |
≥ 0.998 (under rated input and output power) |
ZXD3000 DC Output Properties
|
Property |
Description |
|
Maximum output power |
3000 W (with the input voltage between 176 V and 295 V, and the environmental temperature between -40 °C to +55 °C) |
|
Rated output voltage |
53.5 V |
|
Adjustable range of the output voltage |
42 V–59.5 V through the monitoring unit of the DC power supply system |
|
Limited output current |
5 A–58 A through the monitoring unit of the DC power supply system |
|
Efficiency |
l Peak efficiency: ≥ 96% l Efficiency at rated load: ≥ 95% |
|
Regulated voltage precision |
≤ ±0.6% |
