Product:

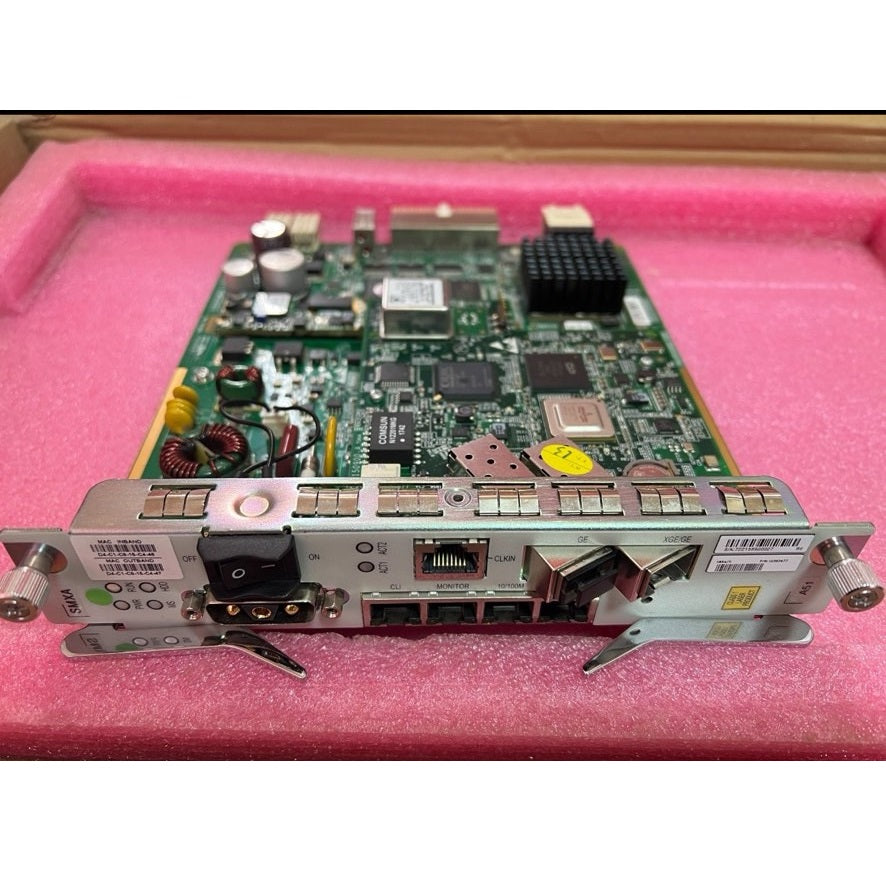

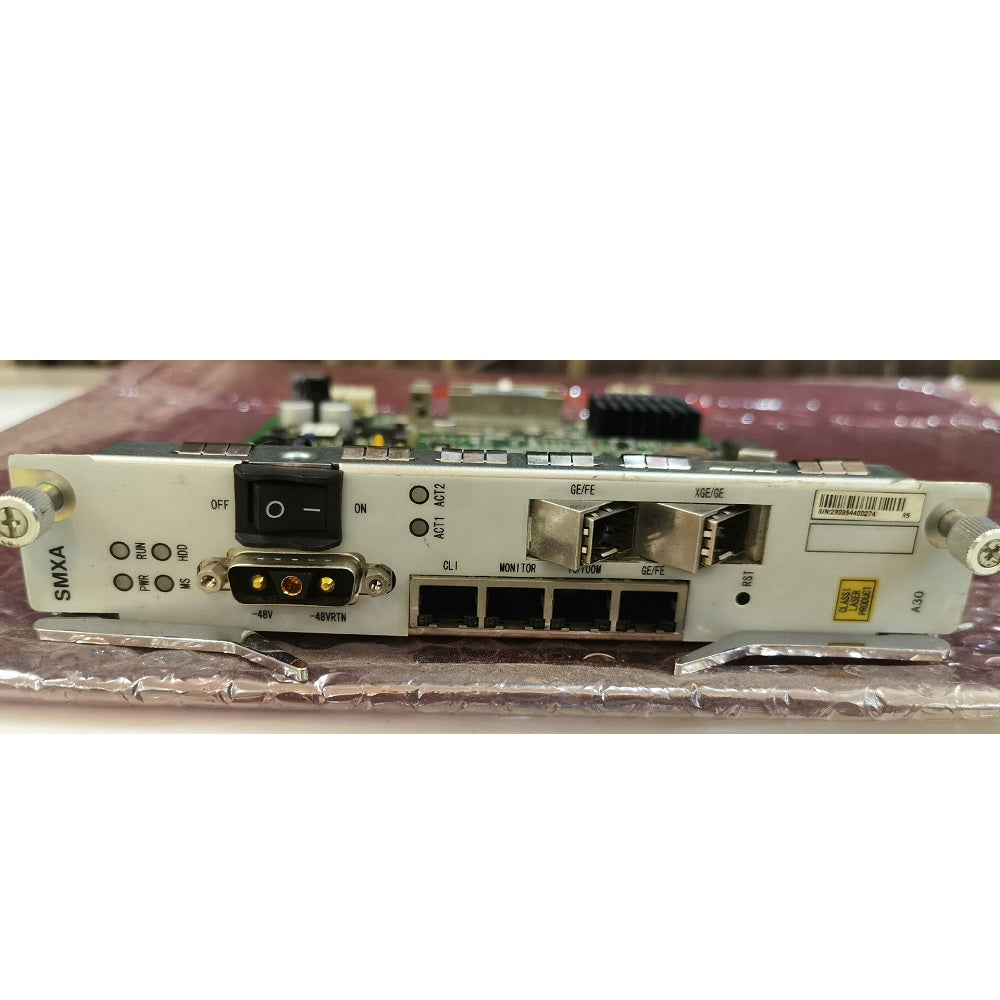

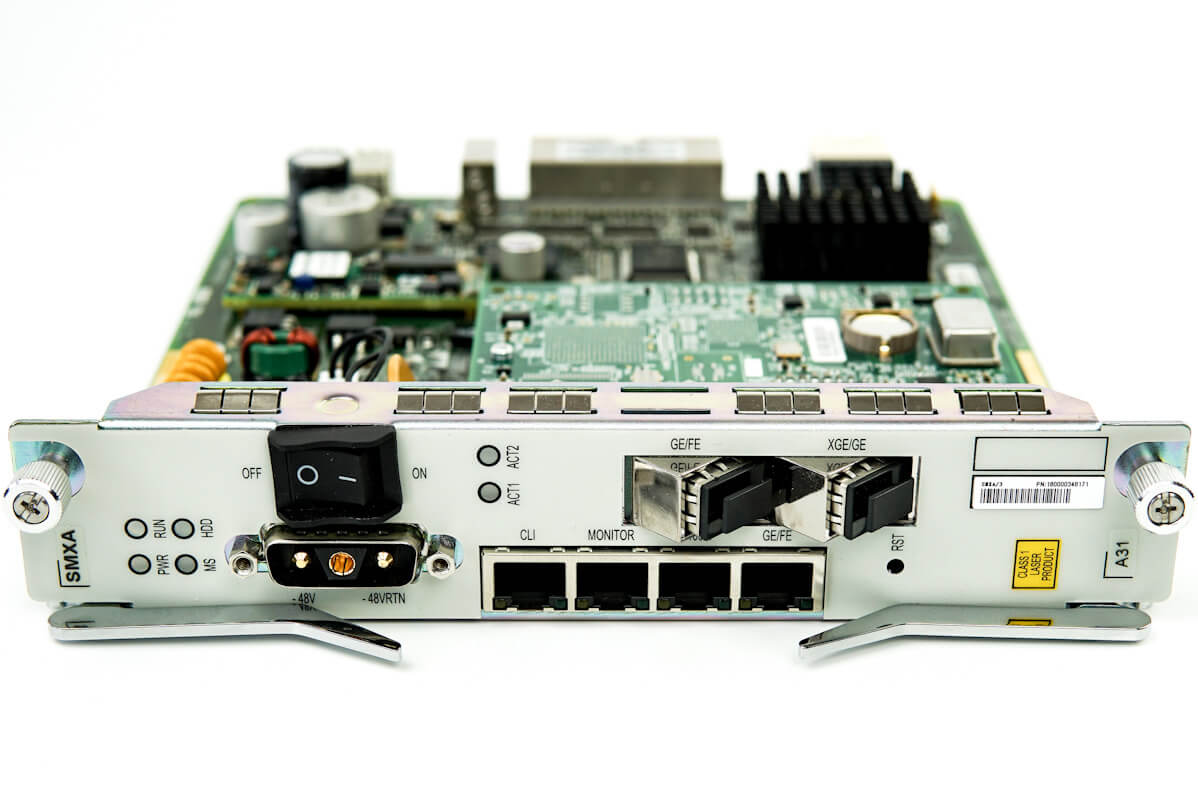

ZXA10 C320 SMXA/3 A30 A31 SMXA/5 A51
Model:
SMXA/3 A30 A31 SMXA/5 A51 Main control card
Description:
ZXA10 C320 SMXA/3 A30 A31 SMXA/5 A51 Main control board 10G uplink board DC power board
Price:
Regular price
$1,500.00 USD
ZXA10 C320 SMXA/3 A30 A31 SMXA/5 A51 Main control board 10G uplink board DC power board
ZXA10 C320 OLT Product Specification
|
Model |
ZXA10 C320 |
|
Backplane capacity |
420 Gbit/s |
|
Switching capacity |
84 Gbit/s |
|
Number of service cards |
2 (GPON/P2P/XG-PON1) |
|
Number of combined control cards |
2 |
|
Number of power supply cards |
1 |
|
Number of uplink cards |
1 (10GE/GE/FE/E1/T1) |
|
Maximum number of GPON subscribers |
4096 |
|
Management Interfaces |
CLI, SSH, SNMP, telnet |
|
Power |
-48 V (DC), 230V (AC) |
|
Working temperature and humidity |
-25°C – +55°C, 5% – 95% |
|
Split Ratio |
up to 1:128 |
|
Range |
20-60 km |
|
Maximum attenuation |
SFP B+ 28 dB, SFP C+ 32 dB |
|
Dynamic Bandwidth Allocation |
NSR-DBA, SR-DBA |
|
Support |
FEC, AES128, SCB, OLS |
|
Dimensions |
86.1 mm (height) x 482.6 mm (width) x 270 mm (depth) |
|
Power Supply |
Dual DC: 48V/60VAC: 100V~240V |
|
Cabinet |
Indoor: 2200mm x 600mm x 300mm standard cabinet Outdoor: EC90EB, EC70E |
|
Main- Control Switching Card SMXA |
Panel interfaces: 1*10GE/GE(optical)+1*GE/FE(Optical)+ 1*GE/FE(electrical) port+ 1*management FE+ 1*environment detecting port Ethernet uplink port: MAX. 2*10GE+4*GE or 6*GE |
|
Service Card (2 slots) |
GTGO(8*GPON) /GTGH(16*GPON)/FTGK(48*P2P)/GTXO(8*XG-PON1) |
| ZXA10 C320 main control board SMXA/5(SMXA+UCDC5) integrated with 1-port GE SFP and 1-port 10GE SFP+ uplink. | |
| Item | SMXA/5 |
| Switching Capacity | 128 Gbit/s |
| MAC address table | 32K |
| Power consumption(W) | Static: 27 |
| maximum: 36 | |
| typical: 32 | |
| Dimensions(mm) | 200.25 (H)× 37 (W) × 225 (D) |
| Weight(kg) | 1.031 |
| ZXA10 C320 main control board SMXA/3(SMXA+UCDC3) integrated with 1-port GE SFP and 1-port 10GE SFP+ uplink. | |
| Item | SMXA/3 |
| Switching Capacity | 128 Gbit/s |
| MAC address table | 32K |
| Power consumption(W) | Static: 22 |
| maximum: 30 | |
| typical: 27 | |
| Dimensions(mm) | 200.25 (H)× 37 (W) × 225 (D) |
| Weight(kg) | 0.993 |
| ZXA10 C320 main control board SMXA/1(SMXA+UCDC1) integrated with 2-ports GE SFP uplink. | |
| Item | SMXA/1 |
| Switching Capacity | 128 Gbit/s |
| MAC address table | 32K |
| Power consumption(W) | Static: 18 |
| maximum: 22 | |
| typical: 23 | |
| Dimensions(mm) | 200.25 (H)× 37 (W) × 225 (D) |
| Weight(kg) | 0.982 |
