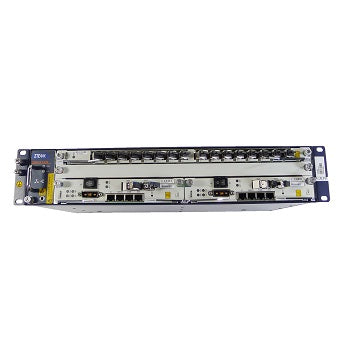

Product: ZXA10 C300 C350 C320 OLT
Model: ZXA10 C300 C350 C320 OLT Optical Acces
Description: ZXA10 C300 C350 C320 OLT Optical Access Hardware Description Card specifications List
Price:
$1,500.00 USD
Get In Touch

ZXA10 C300 C350 C320 OLT Optical Access Hardware Description

ZXA10 C300/C350/C320 Card specifications List
Card Type Name Description Function

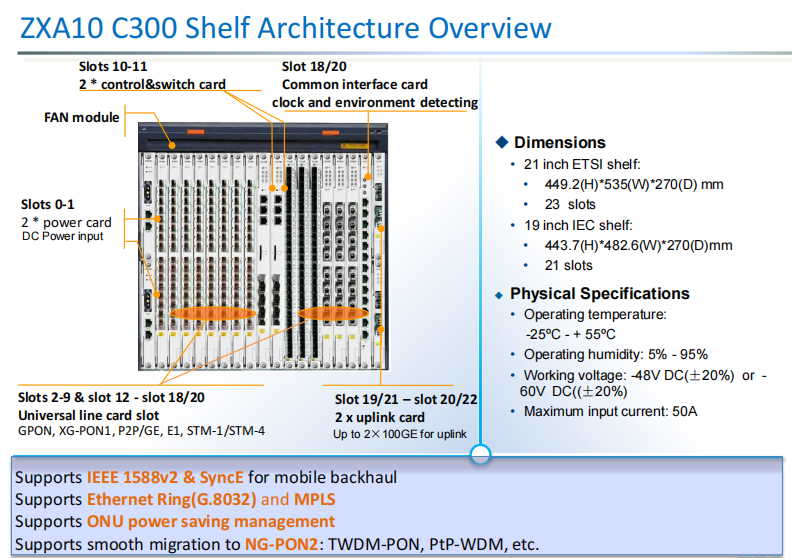

Switching and control card SCXN Type-N switching and control card ZXA10 C300/C350 switching and control card
1 out-of-band NM interface
1 serial interfac
1 SD card interface
4 GE uplink interfaces
SCTM Type-T switching and control card ZXA10 C300/C350 switching and control card
1 out-of-band NM interface
1 serial interface
1 SD card interface
4 10GE uplink interfaces
1 mirroring interface
SCXM Type-M switching and control card ZXA10 C300/C350 switching and control card
1 out-of-band NM interface
1 serial interfac
1 SD card interface
SCXL Type-L switching and control card ZXA10 C300/C350 switching and control card
1 out-of-band NM interface
1 serial interfac
1 SD card interface

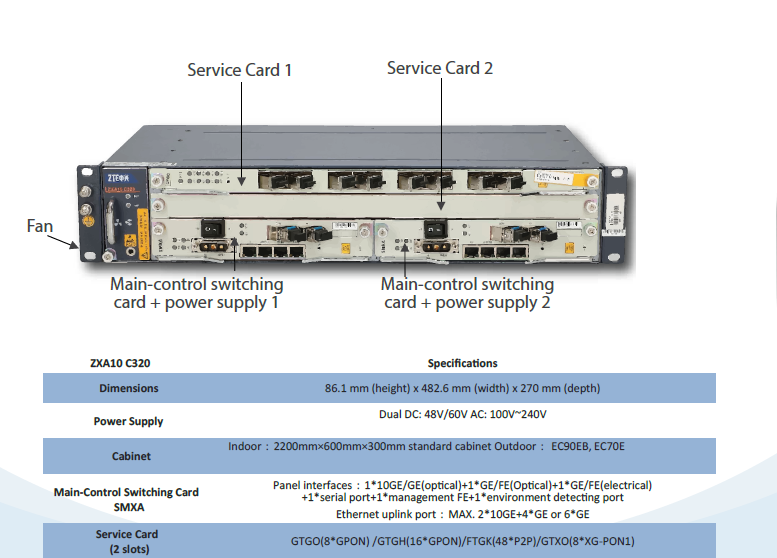

SMXA Type-L switching and control card ZXA10 C320 switching and control card
1 out-of-band NM interface
1 serial interfac
1 monitor interface
1 GE uplink electrical interface
The GE optical interface is available when a UCDC/1 daughter card is installed. The GE optical interface can be modified to a 10GE optical interface with a UCDC/3 daughter-card is installed. 1 GE optical interface and 1 10GE optical interface are available when a UCDC/5 daughter card is installed.
Clock daughter card CKWSA Clock daughter card Clock daughter card for SCXN
Ethernet uplink card XUTQ 4-port 10GE optical interface Ethernet uplink card 4 10GE optical interfaces
XUVQ 4-port 10GE optical interface Ethernet uplink card 4 10GE optical interfaces Supports SynE and IEEE 1588
HUTQ 2-port 10GE and 2-port GE optical interface Ethernet uplink card 2 10GE and 2 GE optical interfaces
HUVQ 2-port 10GE and 2-port GE optical interface Ethernet uplink card 2 10GE and 2 GE optical interfaces Supports SynE and IEEE 1588
GUFQ 4-port GE optical interface Ethernet uplink card 4 GE optical interfaces
GUSQ 2-port GE optical and 2-port GE electrical interface Ethernet uplink card 2 GE/FE optical and 2 GE electrical interfaces
Uplink daughter card UCDC/1 2-port GE uplink daughter card for SMXA 2 GE optical interfaces
UCDC/3 1-port 10GE and 1-port GE uplink daughter card for SMXA 1 GE and 1 10GE optical interfaces
UCDC/5 1-port 10GE and 1–port GE uplink daughter card for SMXA 2 GE optical interfaces supports SynE and 1588v2
PON interface card GTGO 8-port GPON interface card 8 GPON interfaces
GTGH 16-port GPON interface card 16 GPON interfaces
GTXO 8-port XG-PON1 interface card 8 XG-PON1 interfaces
GTBO 8-port GPON/XG-PON1 interface card 8 GPON/XG-PON1 interfaces
GTTO 8-port XGS-PON interface card 8 XGS-PON interfaces
ETGO 8-port EPON interface card 8 EPON interfaces
ETGH 16-port EPON interface card 16 EPON interfaces
ETXD 2-port asymmetric 10G-EPON interface card 2 10G-EPON interfaces
ETTO 8-port symmetric/asym- metric 10G-EPON inter- face card 8 10G-EPON interfaces
Ethernet interface card FTGK 48-port P2P Ethernet interface card 48 GE/FE optical interfaces
GDFO 8-port GE optical Ethernet interface card 8 GE/FE optical interfaces
TDM interface card CTLA STM-N TDM interface card 2 STM-1 or 1 STM-4 interface
CTBB 32-channel E1 balanced TDM interface card 32 E1 balanced interfaces
CTUB 32-channel E1 unbalanced TDM interface card 32 E1 unbalanced interfaces
CTTB 32-channel T1 balanced TDM interface card 32 T1 balanced interfaces
Common interface card CICG Common interface card, supports clock processing, environment monitoring, and OAM. 2 BITS/1PPS+TOD clock input interface
1 BITS/1PPS+TOD clock output interface
1 out-of-band NM interface
1 pulic serial port
1 temperature sensor interface
1 humid sensor interface
1 smog sensor interface
CICK Common interface card, supports clock/time processing, environment monitoring, and OAM. 1 liquid sensor interface
1 entrance control sensor interface
1 digit input interface
1 digit output interface
Power card PRWG 4.5U power interface card ZXA10 C300/C350 power card
PRWH 4.5U power interface card 1 power interface
2 RJ-45 interfaces (reserved)
PRAM AC power card ZXA10 C320 AC power card
1 AC power interface
1 battery interface
1 temperature sensor interface
Fan control card FCWB Fan control card ZXA10 C300 fan control card Supports single line fan box
FCWD ZXA10 C300 fan control card Supports dual line fan box
FCWR ZXA10 C350 fan control card
F2U ZXA10 C320 fan control card
Backplane MWIA/R ZX10 C300 19-inch backplane ZXA10 C300 10U 19-inch backplane
MWIA
MWEA/R ZX10 C300 21-inch backplane ZXA10 C300 10U 21-inch backplane
MWEA

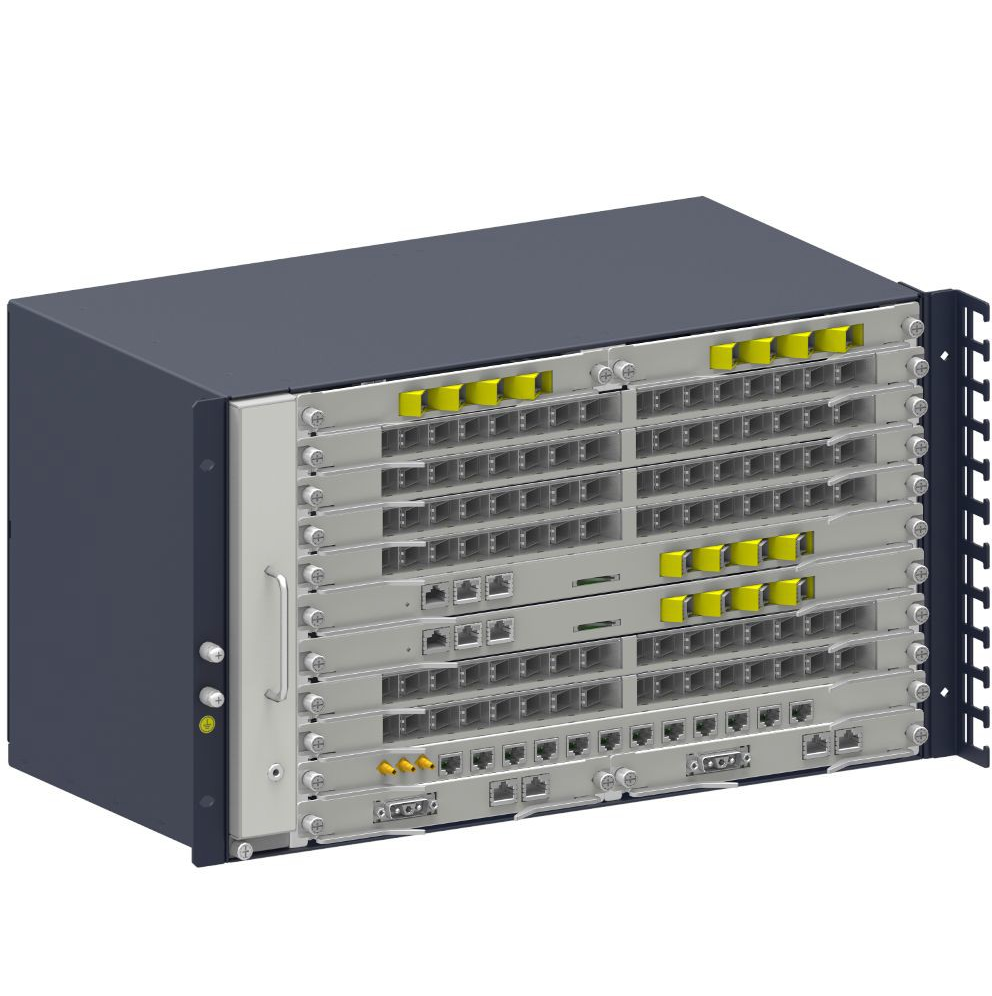

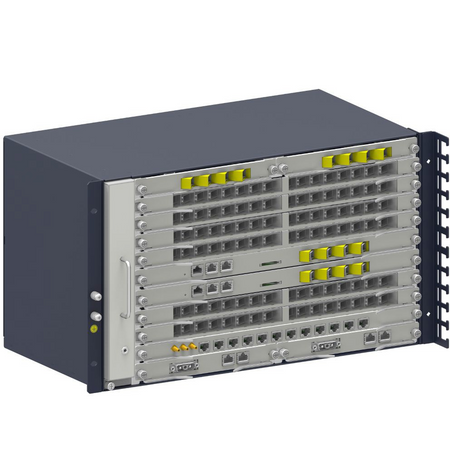

MWRV 6U 19-inch backplane ZXA10 C350 6U 19-inch backplane
MWMT 2U 19-inch backplane ZXA10 C320 2U 19-inch backplane
