ZTE R8882 R8881 MM6212 6101 RRU Power connector plug zte rru power plug power cable connector 5G Engineering Accessories with 2Pin 3Pin 4Pin

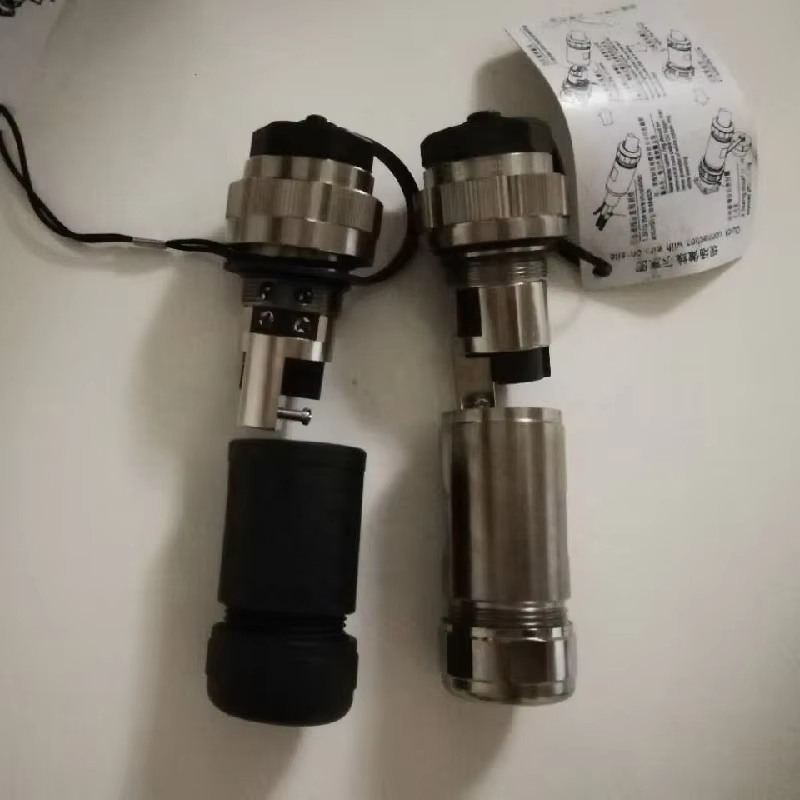

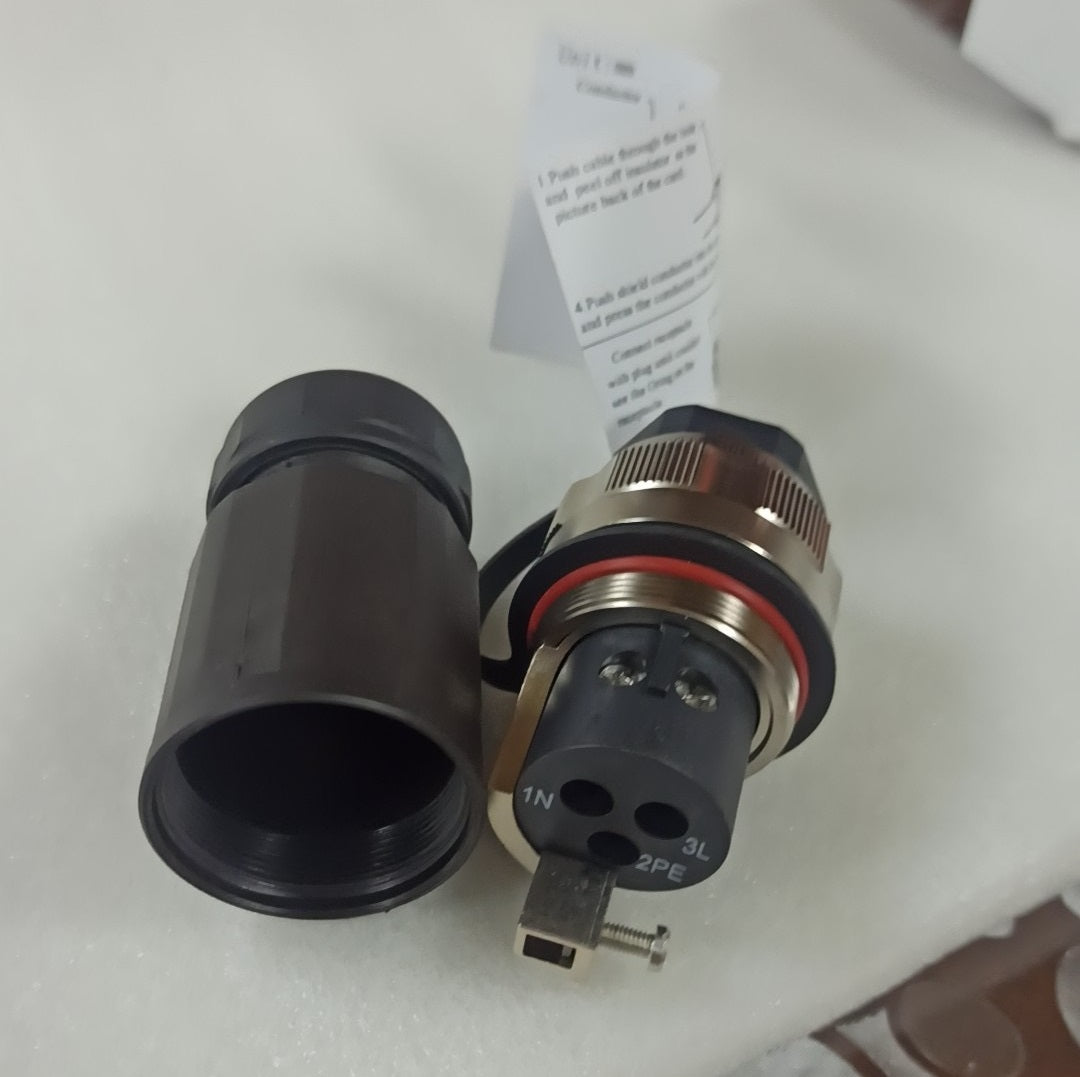

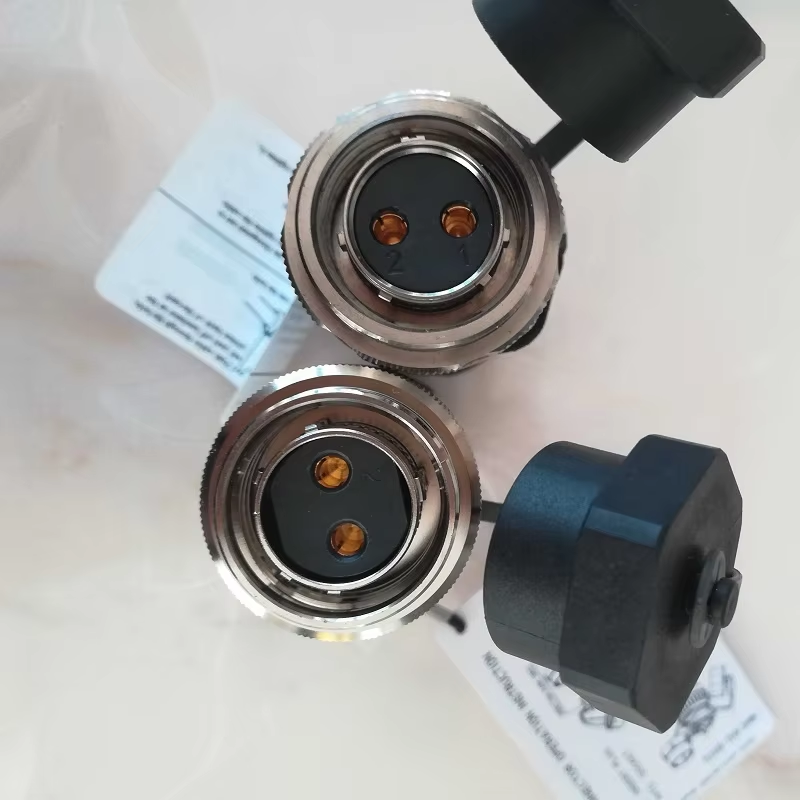

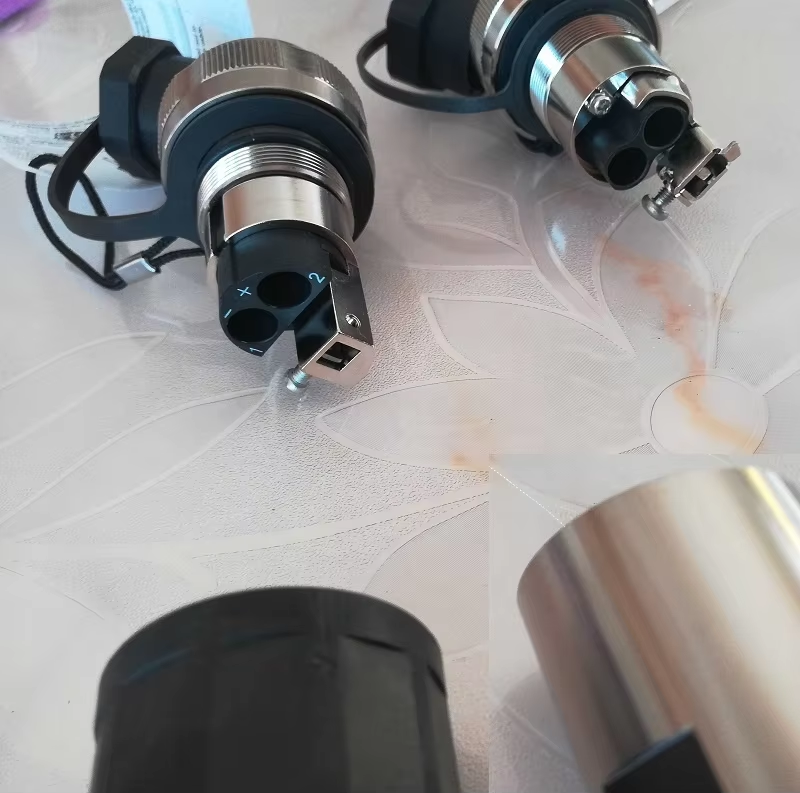

ZTE 48V connector (R8882 R8881 Mm6212 6101 RRU plug connector) is used to connect power cables

Model number: CT48-2T

Model number: SY030-2PT
Model number: SY030-2ST0

Model number: SY030-2ST0-A

Model number: SY030-2ST0-B

Part number: SY030-2SHZ, PWR-96880-023-V1.0 L=0.14M RoH86

Model number:SY030-3PHZ0

Model number: SY030-3ST0

1. General information
This technical specification contains customer's technical and functional requirements for the supplier and
The volume of goods supplied. Within the framework of this technical specification, it is planned to supply the ZTE 48v connector
(R8882 r8881 mm6212 6101 RRU plug connector) to maintain and maintain radio access network for purposes
To ensure compatibility with existing equipment for the production of ZTE (RRU r8882 r8881)
2. Specifications:
2.1. ZTE 48v connector (r8882 r8881 mm6212 6101 RRU plug connector) is used to connect power cables
External radio blocks. The connector is quick and easy to install outdoors, has a degree of protection IP67 for 2-
Wired system, for cables with a section of conductors from 2x2,5 (mm²) to 2x16 (mm²).
2.2 range of cable diameters: 7mm (minimum cable diameter), 21,5mm (max. Cable diameter)
2.3. Cable cross section: from 2,5 (mm²) to 16 (mm²).
2.4. Article: 042130200025
2.5. Nominal current: 30A (DC)
2.6. Nominal voltage: 60V (AC)
2.7. Test voltage: 1500V r.m.s. (50Hz)
2.8. Insulation resistance: ≥5000 MΩ (normal); ≥100 MΩ (suffocating)
2.9. Contact resistance: ≤1.25 mΩ
2.10. Compliance with directive: RoHS

2.11. The supplied material must be new, factory-ready and well-packaged
For its transportation to the customer without damage.
2.12. The supplied products must comply with the product diagram, according to Appendix 1 to the vehicle.
3. Mechanical characteristics:
3.1. Insertion force (single pin): 44.52n
3.2. Separation force (single pin): 1.39n
3.3. Retention capacity (single pin): 1.39n

Cable diameter range: 7 mm (minimum cable diameter), 21.5 mm (maximum cable diameter)
Cable cross-section: from 2.5 (mm²) to 16 (mm²).
Part number: 042130200025
Rated current: 30A (DC)
Rated voltage: 60V (AC)
Test voltage: 1500V r.m.s. (50Hz)
Insulation resistance: ≥5000 MΩ (normal); ≥100 MΩ (suffocating)
Contact resistance: ≤1.25 mΩ

4. Material and surface treatment:
4.1. Contacts (qsb4-3) contact area: AU (gold) 0.3(µm) Micron.
4.2. Shell (hpb59-1) ni (nickel) p12 ~ 25(µm) Micron.
4.3. Shell coating: zinc injection molding, ni (nickel).
4.4. Back cover (trailer) PA66 black color according to UL94v-0
4.5. Insulator: PBT, according to ul94v-0
4.6. Coating: silicone rubber, according to UL94V-0
5. Working environment:
5.1. Working temperature: -55 °C ~ + 115 °C
5.2. Humidity: 90% ~ 95%, 40 ± 2 °C
5.3. Concussion: acceleration 490 meth. sec², semi-sinusoidal retention-11 sec, contact time 1(µs)
5.4. Vibration: 10 (Hz) ~ 2000 (Hz), acceleration 147 M. sec², contact time 1(µs)
5.5. Test Method (salt spray) according to iec60950-22 of claim 8.3, the base is not corroded; according to
GB/T2423. 18-2000, after a 96-hour salt spray test on a non-corrosion contact surface.
6. Structure and dimensions:
6.1. Maximum plug size: F 36.4x100 (mm)
6.2. Wire size: According to UL2464 11AWG-2C, UL2464 9AWG-2C OP UL2464 7AWG-2C (F 11mm ~ F 18mm)
7. Packaging requirements (conservation):
7.1. Outer packing: Carton, inner: bubble film.
7.2. Storage conditions: ambient temperature-10 °C ~ + 40 °C, 85% humidity, no acidity,
Alkalinity and other gaseous impurities.
8. Introduction to the material:
8.1. Mating: Couple with sy030-2phz0 (plug)
8.2. Specification: Q/LKS. J(02)232-2011
8.3. End: Screw Mount
