ZTE 48V 100A ZXD5000 V2.0 Rectifier Module  ZXDU88 S402 Telecom power supply

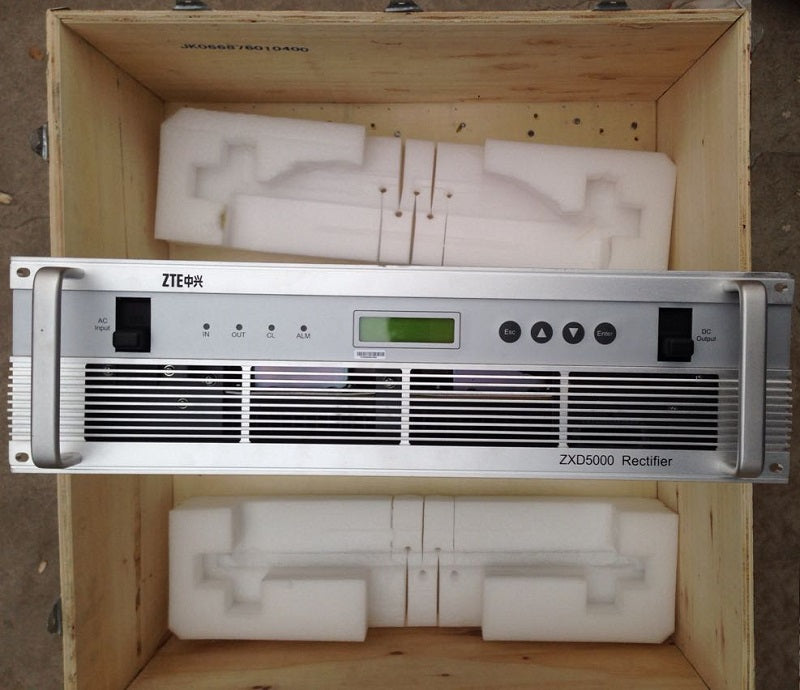

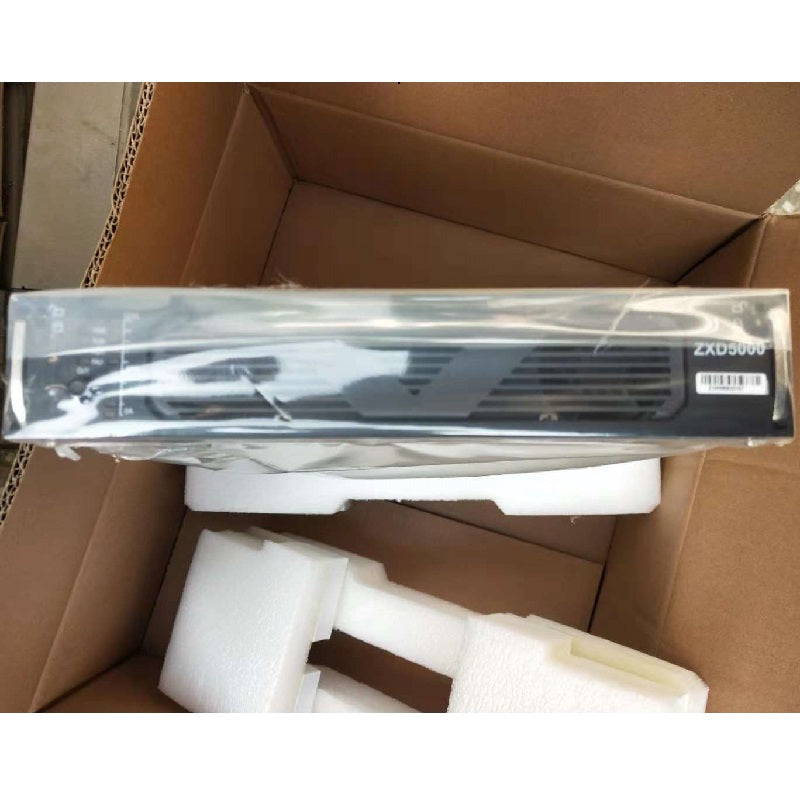

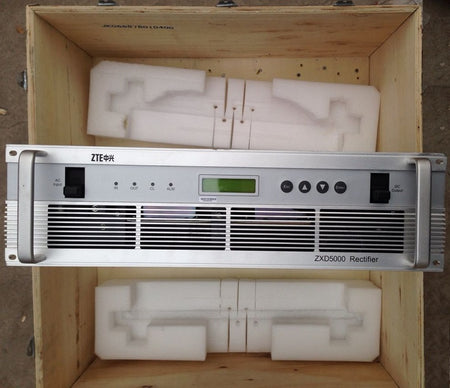

ZTE ZXD5000 rectifier is a large capacity communication power supply switch rectifier, complete AC to DC output conversion. The rated AC input is 380V(line voltage), the rated output voltage is 53.5V and the rated output power is 6000w.
The ZXD5000 rectifier is usually combined in the communication power supply system to power a variety of large and medium-sized switching equipment, mobile base stations and other communication equipment. The ZXD5000 rectifier can also be separated from the power supply system and used separately in parallel.
2.2 Product Features
The ZXD5000 rectifier has the following characteristics:
High efficiency and energy saving
→    Efficiency up to 96.2%.
→   Advanced modular design. With automatic flow sharing
→   Low standby loss and light load loss, green energy saving.

 Compactresting volume
→   Industry-leading power density.
→   Small size, light weight, single phase 0| capacity expansion of all 3000A.
High reliability
→    Safety and electromagnetic compatibility
meet the relevant international standards.

→ The document supports hot swap function.
→ Ac input power grid wide range (260V-530V line voltage). Guest 380V/480V drying system.

Intelligent control, flexible networking

→ Advanced DSP digital control ,flexible control ,high system consistency, low cost,easy debugging and system upgrade

→ realize SMNP and IP monitoring network

weight: 25KG

Dimensions: 466mmX482mmX132mm

ZXD3000 V5.1 623202002101 V1.0
ZXD3000(V5.1 R02)  22901970XXXX
ZXD3000 V5.5 R02 DTU 180000403582
ZXD3000 V5.5 R03  180000409566
ZXD3000 V5.6 180000339153
ZXD3000 V5.8 180000433096
ZXD3000 V6.0(R03)210097 892258
ZTE ZXD1500(V4.2) 50A Rectifier 502020000001
ZTE ZXD030 S480 Rectifier Module 502020000002
ZTE ZXD2400(V4.2) 50A Rectifier 120750010038
