Product:
SRU 03030HAT 03030GED
Model:

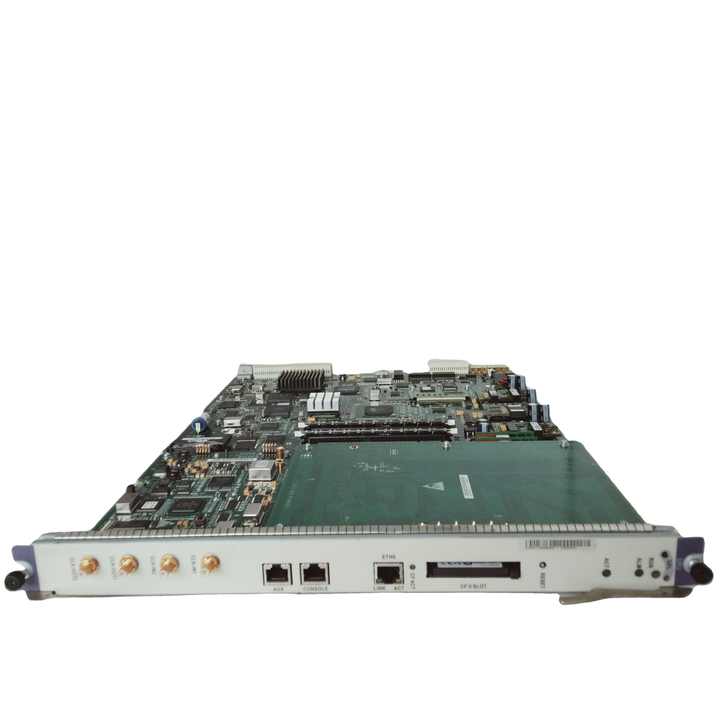

SRU 03030HAT 03030GED CR52SRUA1 Processing Unit core circuit board for system management UGW9811
Description:
SRU 03030HAT 03030GED CR52SRUA1 Processing Unit (SRU) is the core circuit board for system management UGW9811 use for PGP-8
Price:
Regular price
$6,800.00 USD
Enterprise Firewall SRU 03030HAT 03030GED CR52SRUA1 Processing Unit (SRU) is the core circuit board for system management UGW9811 use for PGP-8 subrack CoreNetwork
A subrack is a mandatory device and houses UGW9811 boards, including the Switching Route Units (SRUs), Switching Fabric Units (SFUs), Service Processing Units (SPUs), and Line Processing Units (LPUs).
The UGW9811 supports PGP-16, PGP-X8, and PGP-X16 subracks
The Switch and Route Processing Unit (SRU) is the core circuit board for system management. The SRU collects routing information and generates route tables. As the switching center of packets of the UGW9811, the SRU functions as an operation and maintenance agent of the system.
|
Item |
Specifications |
|---|---|
|
BOM |
03030HAT 03030GED (03030GED is an earlier BOM number and identifies the same board as 03030HAT.) |
|
Dimensions (width x depth x height) |
36 mm x 520 mm x 400 mm (1.42 in. x 20.47 in. x 15.75 in.) |
|
Typical power consumption
NOTE:
It is the power consumption when the ambient temperature is 25°C (77°F) and the service traffic is 50% of the capacity. |
76 W |
|
Maximum power consumption
NOTE:
It is the power consumption when the ambient temperature is 50°C (122°F) and the service traffic is 100% of the capacity. |
90 W |
|
Heat dissipation |
90 W |
|
Weight |
4.3 kg (9.48 lb) |
|
Interface Name |
Connector Type |
Description |
|---|---|---|
|
ETH0 (10M/100M/1000M BASE-TX auto negotiation) |
RJ45 |
Used to connect the system network workstation. This interface has the LINK and ACT indicators. |
|
ETH1 |
- |
It is a reserved interface, cannot be used. |
|
Console interface |
RJ45 |
Used to connect the console for system configuration. |
|
AUX interface |
RJ45 |
The AUX interface is unavailable. |
