Product:
SFUD200C SFUI-200-C
Model:
SFUD200C SFUI-200-C 03054300 03030MUW WP22SFU200C Switch Fabric Unit C
Description:
SFUD200C SFUI-200-C 03054300 03030MUW WP22SFU200C Switch Fabric Unit C UGW9811 PGP-X16
Price:
Regular price
$6,800.00 USD
Enterprise Firewall SFUs SFUD200C SFUI-200-C 03054300 03030MUW WP22SFU200C Switch Fabric Unit C UGW9811 PGP-X16 subrack CoreNetwork

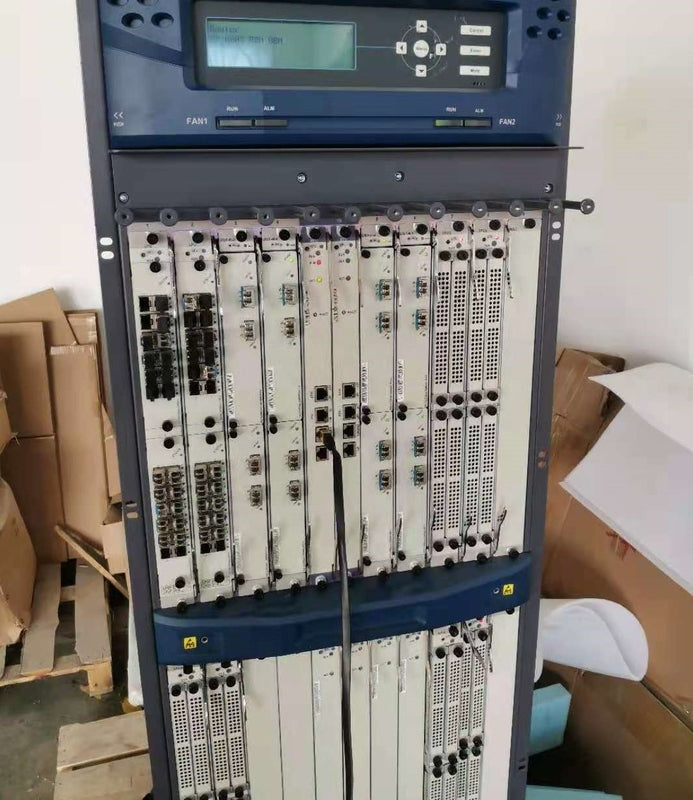

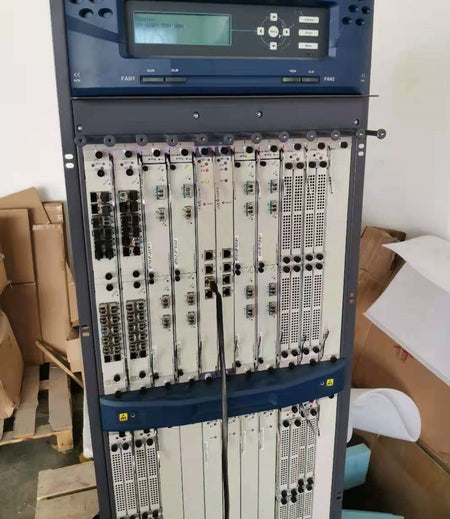

A subrack is a mandatory device and houses UGW9811 boards, including the Switching Route Units (SRUs), Switching Fabric Units (SFUs), Service Processing Units (SPUs), and Line Processing Units (LPUs).
The UGW9811 supports PGP-16, PGP-X8, and PGP-X16 subracks
The Switch Fabric Unit (SFU) onthe PGP-X16 switches data for the entire system. This ensures a non-blocked switching network.
The 200 Gbit/s switch fabric unit C (SFU200C) uses an unblocked switching network to switch service data for the entire system.
The PGP-X8 subrack has three SFUs, which work in 2+1 load sharing mode.
The three SFUs process services in load sharing mode. If an SFU is faulty or replaced, the other two SFUs automatically take over the services on the SFU, ensuring that the services are not interrupted.
The SFU200C can be used only in the PGP-X8 subrack.
|
Item |
Description |
|---|---|
|
BOM code |
03054300 03030MUW (03030MUW is an earlier BOM number and identifies the same board as 03054300.) |
|
Dimensions (width x depth x height) |
36 mm x 520 mm x 400 mm (1.42 in. x 20.47 in. x 15.75 in.) |
|
Typical power consumption
NOTE:
It is the power consumption when the ambient temperature is 25°C (77°F) and the service traffic is 50% of the capacity. |
65 W |
|
Maximum power consumption
NOTE:
It is the power consumption when the ambient temperature is 50°C (122°F) and the service traffic is 100% of the capacity. |
80 W |
|
Heat dissipation |
80 W |
|
Weight |
3.82 kg (8.42 lb) |
