Product:
Optix Rtn900 Microwave Radio ODU IDU
Model:
Optix RTN905 RTN910, RTN950A, RTN950, RTN980L
Description:
OptiX RTN 910 OptiX RTN 950 OptiX RTN 905 OptiX RTN 905e OptiX RTN 910A OptiX RTN 950A OptiX RTN 980
Price:
Regular price
$2,500.00 USD
Optix Rtn905 Microwave Radio ODU IDU Connection outdoor IF Cable, PGND ODU,Power Cable ,E1 Cable,Ethernet Cable ,XPIC Cable,IF jumper,Fiber Cable,NMS/COM Cable,Pin Assignment Network Cable,External Alarm Cables,
RTN 900
RTN 900 series microwave provide various traffic interface,support unifiedplatform for TDM/Hybrid/Packet microwave and routing function It ownsadvantage such as easy configuration,easy installation,naturally coupledwith GSM/UMTS/LTE wireless network construction,andoriented forfurthernetwork evolution.
Optix RTN 900 seies products including RTN905/RTN 950/RTN 950A/
RTN 980:

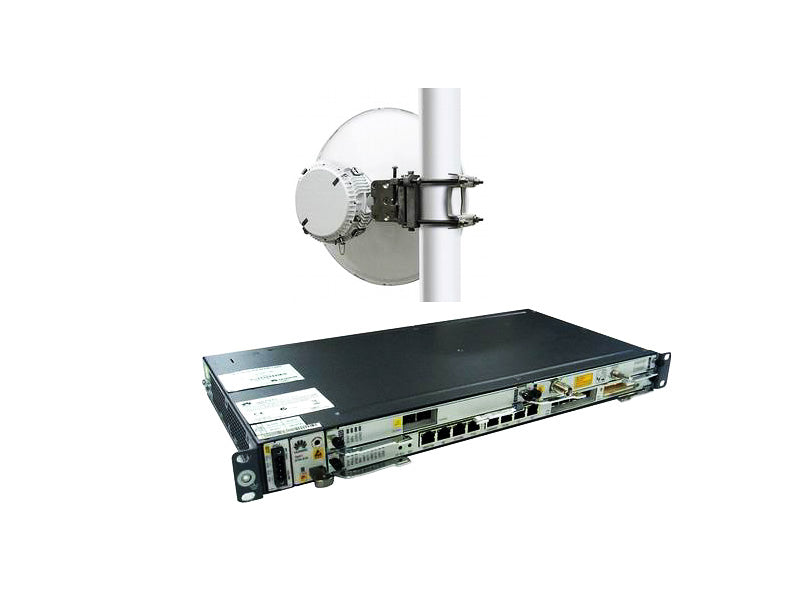

▶RTN 905
RTN 905 is 1U compacted design pizzabox,support up to 2 RF directions.It located on tail site of mobile backhaul network,directly work withGSM/UMTS/LTE wireless base station with various E1/STM-1*/FE/GEtraffic interfaces.

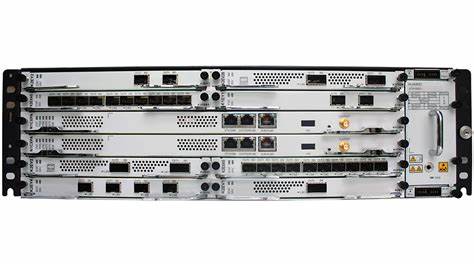

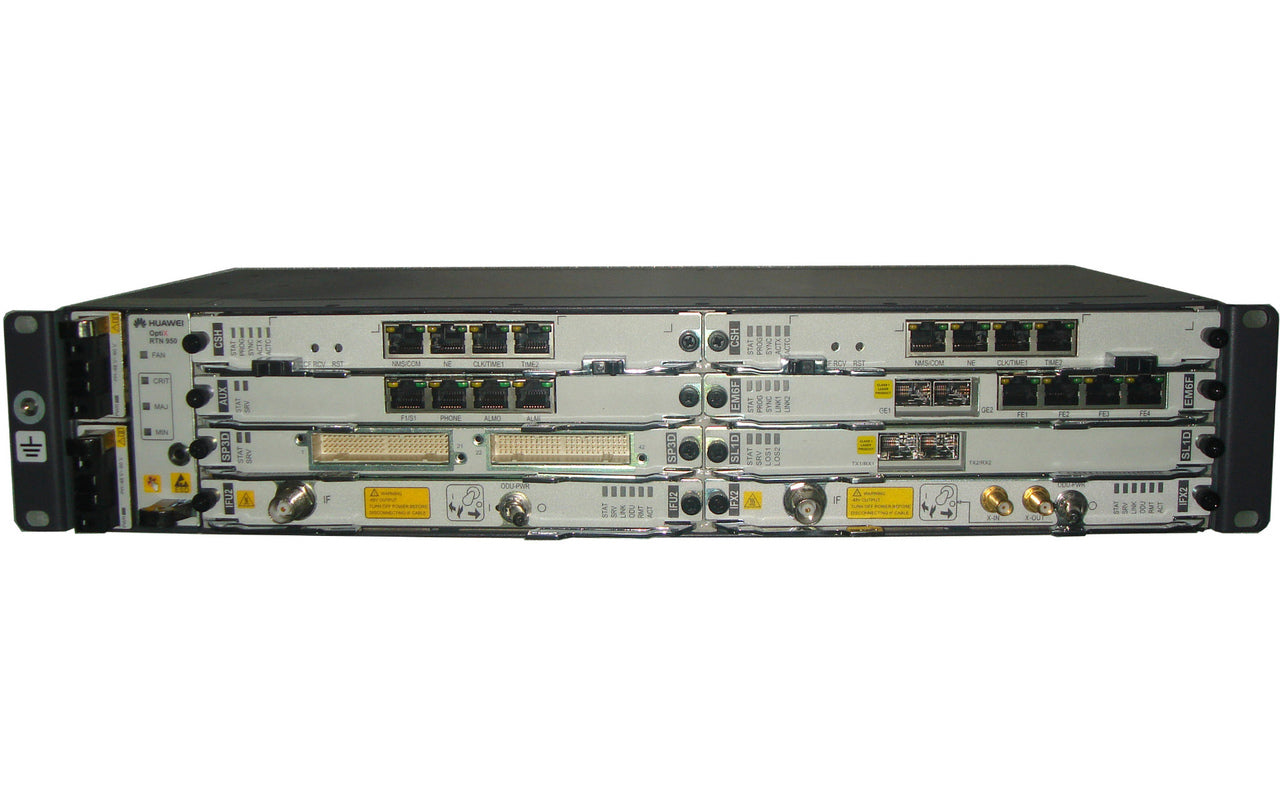

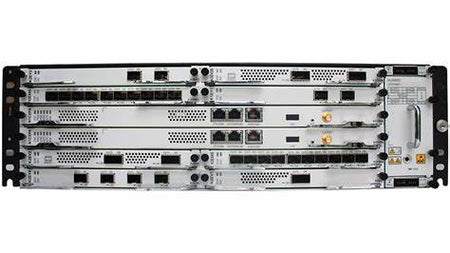

▶RTN 950/RTN 950A
RTN 950 and RTN 950A base on modular chassis architecture,support upto 6 RF directions.They locate on aggregation site of mobile backhaulnetwork and focus on dedicated application scenarios:RTN 950 providehigher reliability with control module redundancy,while RTN 950A integratedmore traffic interface over single control module,means simplicity of hard-ware configuration
▶RTN 980
RTN 980 is based on the same platform with RTN 950/RTN 950A,sharing
most of themodularcards It locateson the core site of mobile backhaulnetwork,support up to 14 RF directions.
Outdoor ATN905 can be wall and pole mounted. Indoor ATN905 can be installed in outside premises, street cabinets, indoor cabinets or just on a desk.
| RTN 905 | RTN 950 | RTN 950A | QH0 | ||
| Frequency | 6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42GHz | ||||
| Channel Space | 3.5/7/14/28/40/50/56MHz | ||||
| RF Direction | fU/2RF | 2U/6RF | 2U/6RF | 5U/14RF | |
| Swich Capacit | 8 Gbps | 10 Gbps | 10 Gbps | 22 Gbps | |
| TDM crossing | Max 4×4VC-4 | 32x32VC-4 | 32×32VC-4 | 128x128VC-4 | |
| Link Aggregation | 2 links | 4linke | 2-4links | 2- inke | |
| Control Redundancy | |||||
| CES E1 | Optlon card | ||||
| IEEE 1588v2 | |||||
| USB Startup | |||||
| L3 VPN | |||||
| H-QOs | |||||
| Enviroment | Temperature:IDU-5℃-+60°℃;ODU-33℃-+55℃;Humidity:IDU5%-95%;ODU 5%-100% | ||||
| Power | -38.4 V～-72 V | ||||
| IDU Weight | 2.7kg | 5.4kg | 5.4kg | 15.4kg | |
RTN950 020RAR SL91CSH CSH
RTN950 020VVT SL91ISU2 ISU2
RTN950 020RBJ SL91IFU2 IFU2
RTN950 020VVW SL91ISX2 ISX2
RTN950 021PFK SL91ISV3 ISV3
RTN950 020RDK SL9D00EM6T01 EM6T
RTN950 21030531 SL9D00EM6F EM6F
RTN950 020SWY SL91SP3SA SP3S
RTN950 TNH1SP3DA01 SP3D
RTN950 SL91SL1D02 SL1D
RTN950 022TLJ SLF2CSHO CSHO
RTN950 020SBE SLA1CSHAA CSHA
RTN950 020VWW SLB1CSHN CSHN
RTN950 020WDS SLA1CSHDB CSHD
RTN950 020WQV SLB1PIU PIU 140
RTN950 020BRS 030LKH TND1FAN RTN950 FAN
SL91EM6TA EM6TA Board
03021PKH Board ETH EG4P 0ETH Board EG4P
03030LKH Board FAN RTN950 0FAN Board Spare Parts Huawei OptiX FAN for RTN950
02310BES Board FAN RTN980L 0FAN Board Microwave Accessory FAN card for RTN980L
03021PFK Board IF ISV3 0IF Board MW-RTN Board Huawei SL91ISV3
03053149 Board ETH EM6F 0ETH Board MW-RTN_IDU Huawei Optix RTN900,SL91EM6F,03020SCF
03022VHK Board IF ISM6 0IF Board IDU Common Cards Accessories Board,SL91ISM6,03022VHK
02113690 QWMB0OMBAC00 OMB Cabinet (Ver.C, 220V/110V AC)
