Product:
OptiX OSN9800 U64
Model:
OptiX OSN9800
Description:
OptiX OSN9800 U64 U32 U16 OSN9800 M24 M12 M05 OSN9800 P32 P32C
Price:
Regular price
$7,500.00 USD
OptiX OSN9800 U64 U32 U16 OSN9800 M24 M12 M05 OSN9800 P32 P32C
ETP48200-B2A1 ETP4860-B1A2
Intended for 100G and beyond 100G optical networks, the OSN 9800 U64 Standard/U32 Standard subrack is a next-generation large-capacity OTN product that integrates ASON, OTN, and packet functions. It is applicable to various networks, including super-backbone, backbone, and metro networks.
Intended for 100G and beyond 100G optical networks, the OSN 9800 U64 Enhanced/U32 Enhanced subrack is a next-generation large-capacity OTN product that integrates ASON, OTN, and packet functions. It is applicable to various networks, including super-backbone and backbone networks.
| OptiX OSN 9800 U64 equipment | |
| Parameter | Specifications |
| Dimensions (H x W x D) | 2200 mm (86.6 in.) x 600 mm (23.6 in.) x 600 mm (23.6 in.) |
| Weighta | 9800 U64 Standard: 180 kg (396.8 lb.) |
| 9800 U64 Enhanced: 200 kg (440.9 lb.) | |

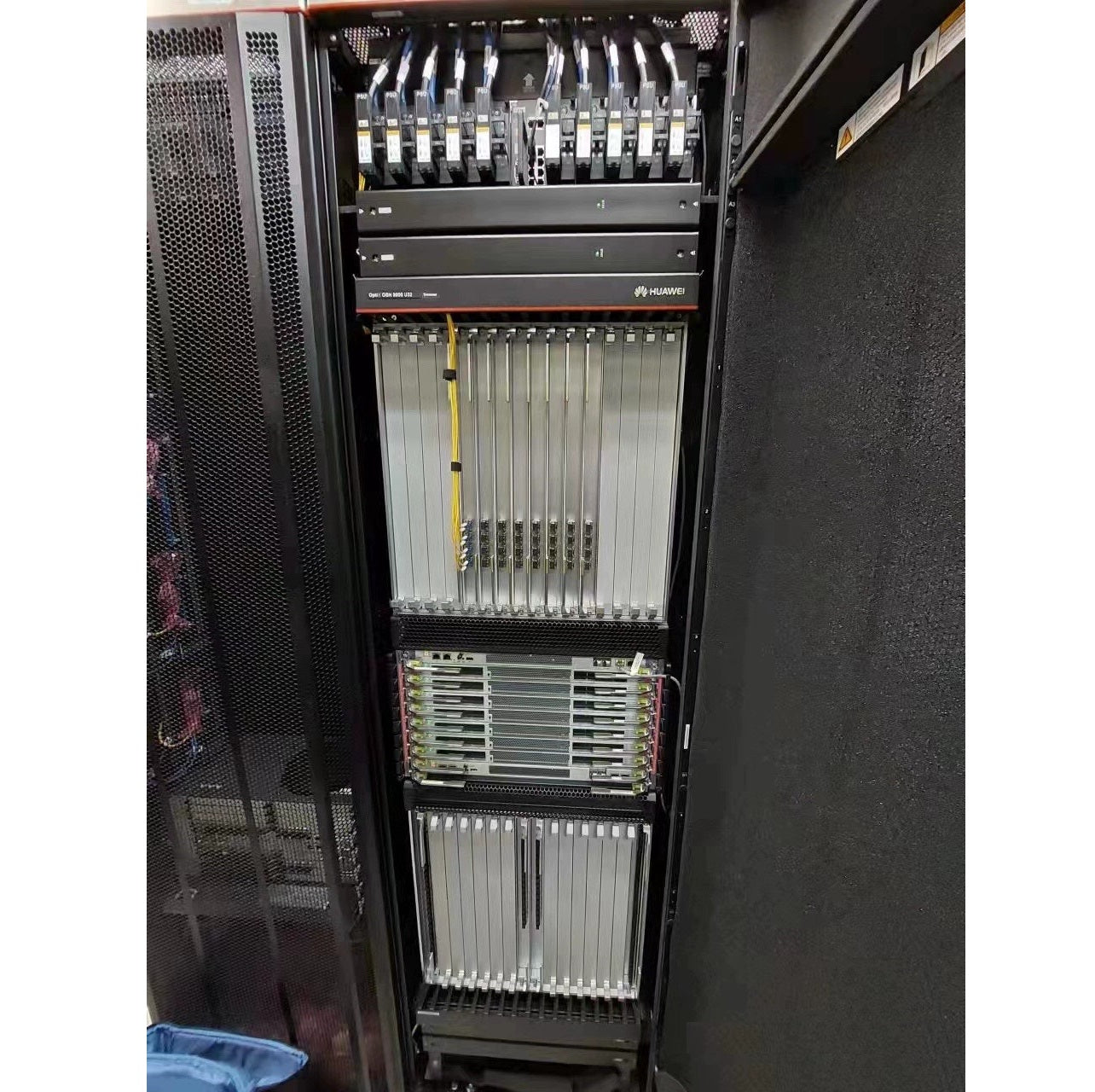

| OptiX OSN 9800 U32 subrack | |
| Parameter | Specifications |
| Dimensions (H x W x D) | 1900 mm (74.8 in.) x 498 mm (19.6 in.) x 295 mm (11.6 in.) |
| Weighta | 9800 U32 Standard: 68 kg (149.9 lb.) |
| 9800 U32 Enhanced: 70 kg (154.3 lb.) | |
|
OptiX OSN 9800 U16 central cluster chassis |
|
| Item | Mechanical Specifications |
| Dimensions (H x W x D) | 847 mm (33.3 in.) x 442 mm (17.4 in.) x 295 mm (11.6 in.) |
| Weight a | 40 kg (88.2 lb) |
|

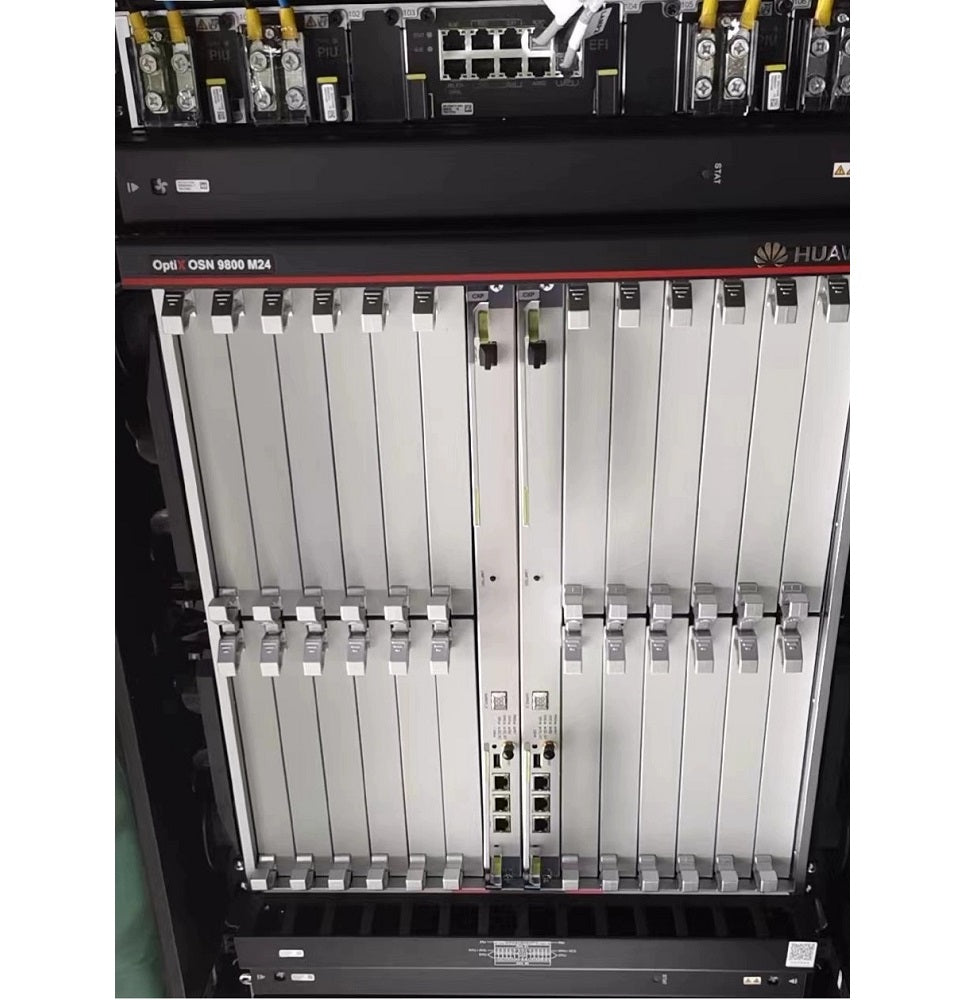

The next-generation M series subracks feature large capacity, optical-electrical integration, and small size. The M series subracks apply to integrated bearing scenarios, such as broadband video, mobile backhaul, enterprise private line, and DCI, and provide an optimal end-to-end transmission solution from the backbone layer, aggregation layer, to access layer. OptiX OSN9800 M24 |
|
| Parameter | 9800 M24 Specifications |
| Dimensions (H x W x D) | 747.2 mm (29.4 in.) x 442 mm (17.4 in.) x 295 mm (11.6 in.) |
| Weighta | 26.49 kg (58.4 lb.) |
| Standard working voltage | –48 V or –60 V DC power input |
| Operation Environment | Long-term running operation temperature: 0°C to +45°C |
| Short-term running operation temperatureb: -5°C to +50°C | |
| Mounting option | Mounted in a 19-inch or 21-inch cabinet |

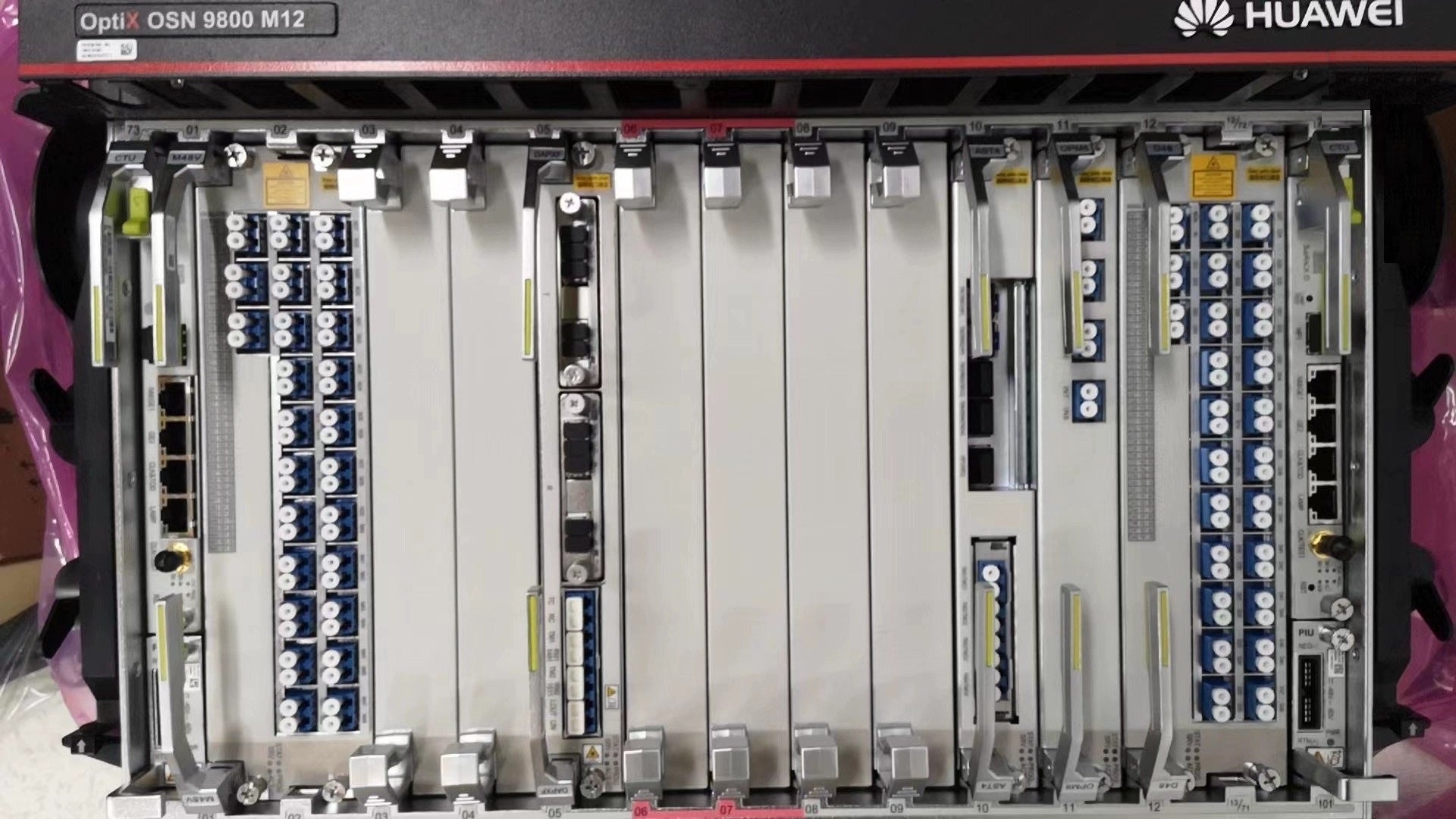

| OptiX OSN9800 M12 | |
| Parameter | 9800 M12 Specifications |
| Dimensions (H x W x D) | 347.2 mm (13.7 in.) x 442 mm (17.4 in.) x 295 mm (11.6 in.) |
| Weighta | 12.2 kg (26.9 lb.) |
| Standard working voltage | –48 V or –60 V DC power input |
| Operation Environment | Long-term running operation temperature: 0°C to +45°C |
| Short-term running operation temperatureb: -5°C to +55°C | |
| Mounting option | Mounted in a 19-inch or 21-inch cabinet |
| OptiX OSN9800 M05 | |
| Parameter | 9800 M05 Specifications |
| Dimensions (H x W x D) | 177 mm (6.99 in.) x 442 mm (17.4 in.) x 290 mm (11.4 in.) |
| Weighta | 10 kg (22 lb.) |
| Standard working voltage | DC power input Standard working voltage: –48 V or –60 V DC power input |
| AC power input Standard working voltage: 110 V AC or 220 V AC power input | |
| High-voltage DC power input Standard working voltage: 240 V HVDC | |
| Operation Environment | Long-term running operation temperature: 0°C to +50°C |
| Short-term running operation temperatureb: –5°C to +55°C | |
| Mounting option | Mounted in a 19-inch or 21-inch cabinet |
|
The OSN 9800 P32/P32C subrack is an ultra-large capacity all-optical cross-connect product. It is mainly used at the backbone core layer and metro aggregation layer. It works with the OSN 9800/1800 to build a complete E2E WDM/OTN backbone transmission solution, achieving transparent and ultra-large capacity transmission. OptiX OSN 9800 P32 equipment |
|
| Item | Mechanical Specifications |
| Dimensions (H x W x D) | 1390 mm (54.7 in.) x 496 mm (19.5 in.) x 315 mm (12.4 in.) |
| Weighta | 82 kg (180.8 lb.) |
| Standard working voltage | –48 V or –60 V DC power input |
| Operation Environment | Long-term running operation temperature: 5°C to +40°C |
| Short-term running operation temperatureb: -5°C to +45°C | |
| Mounting option | Mounted in an ETSI 300 A63B cabinet |
| OptiX OSN 9800 P32C equipment | |
| Item | Mechanical Specifications |
| Dimensions (H x W x D) | 897 mm (35.3 in.) x 442 mm (17.4 in.) x 316 mm (12.4 in.) |
| Weighta | 48.5 kg (106.9 lb.) |
| Standard working voltage | –48 V or –60 V DC power input |
| Operation Environment | Long-term running operation temperature: 0°C to +45°C |
| Short-term running operation temperatureb: -5°C to +50°C | |
| Mounting option | 19-inch cabinetsc |
| 21-inch ETSI cabinets, such as A63B or A66B | |
