Product:
OSN9800 M05 M12 M24 Board
Model:
OptiX OSN9800
Description:
OptiX OSN9800 M05 M12 M24 service boards Description
Price:
Regular price
$7,600.00 USD
OptiX OSN9800 P32C subrack with DC power supplies (14 slots for service boards)
OptiX OSN9800 P32C subrack with DC power supplies (24 slots for service boards)
OptiX OSN9800 P32 subrack with DC power supplies (32 slots for service boards)
OSN9800 M05 subrack runs on DC power input, AC power input or high-voltage DC power input.
OptiX OSN 9800 M12 subrack

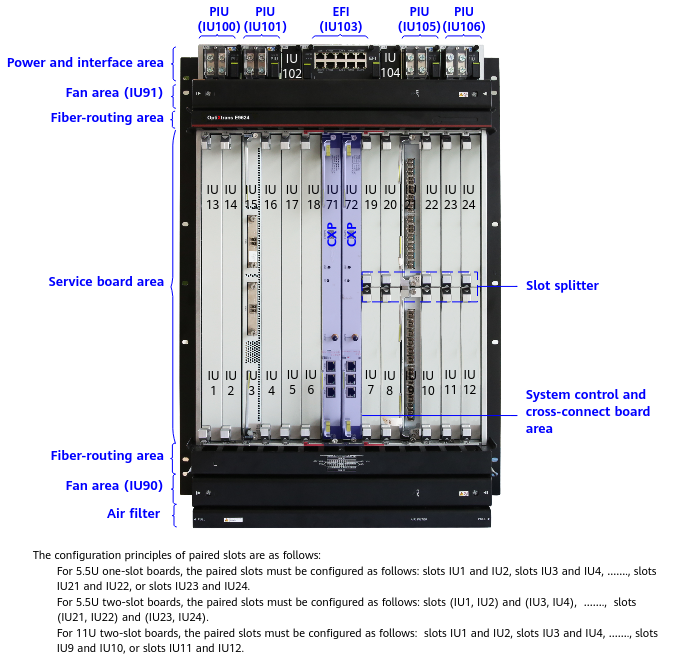

OptiX OSN 9800 M24 subrack (1:1 cross-connect mode)
| Optical Transponder Units | |
| Board | Description |
| TN11LDC | 2 x 100 Gbit/s Service Multiplexing into OTUC2 Wavelength Conversion Board |
| TN12LDC | |
| TN11LQCP | 4*100Gbit/s or 16*10Gbit/s Service Programmable Wavelength Conversion Board |
| TN12LDX | 2 x 10 Gbit/s wavelength conversion unit |
| TN11LOA | 8 x Any-rate MUX OTU2 wavelength conversion board |
| TN12LOG | 8 x Gigabit Ethernet unit |
| TN12LOM | 8-port multi-service multiplexing & optical wavelength conversion board |
| TN13LQM | 4-channel multi-rate (100 Mbit/s to 2.5 Gbit/s) OTU1 wavelength conversion board |
| TN12LSC | 100 Gbit/s wavelength conversion board |
| TN13LSC | |
| TN15LSC | |
| TN17LSC | |
| TN18LSC | |
| TN19LSC | |
| TN17LSCM | 100 Gbit/s Wavelength Conversion Board |
| TN11LSQ | 40 Gbit/s wavelength conversion board |
| TN15LSXL | 40 Gbit/s wavelength conversion board |
| TN12LSX | 10 Gbit/s wavelength conversion board |
| TN13LSX | |
| TN14LSX | |
| TN11LTX | 10-Port 10 Gbit/s Service Multiplexing & Optical Wavelength Conversion Board |
| TN12LTX | |
| TN15LTX | |
| TN17LTX | |
| TN12LWXS | Arbitrary rate (16 Mbit/s to 2.5 Gbit/s) wavelength conversion board (single fed and single receiving) |
| TN12TMX | 4-channel STM-16/OC-48/OTU1 asynchronous MUX OTU2 wavelength conversion board. |
| TN52TOM | 8 x multi-rate ports service processing board |
| Regeneration Boards | |
| Board | Description |
| TN52ND2 | 2 x 10G line service processing board |
| TN55NO2 | 8 x 10G Line Service Processing Board |
| TN53NQ2 | 4 x 10G Line Service Processing Board |
| TN54NS3 | 40G line service processing board |
| TN55NS3 | |
| TN56NS3 | |
| TN54NS4 | 100G line service processing board |
| TN56NS4 | |
| TN57NS4 | |
| TN58NS4 | |
| TN59NS4 | |
| TN54HSNS4 | 1 x 100G Line Service Processing Board |
| Submarine Boards | |
| Board | Description |
| TN97ASE | Extended C-band Amplified spontaneous emission board with pump protection |
| TN97D48 | 48-channel demultiplexing board |
| TN97ERPC | extended C-band enhanced Raman processing board |
| TN97FIU | Fiber interface board |
| TN51HBA | Extended C-band high-power booster amplifier board |
| TN97ITL | interleaver board (Extended C-band) |
| TN51LMU | Line Monitor Unit |
| TN97M48V | 48-channel multiplexing board with VOA |
| TN97MD2 | 2-port Multiplexing and Demultiplexing Board (Extended C Band) |
| TN97OAU2 | Extended C-band optical booster unit with pump protection |
| TN97OBU2 | Extended C-band optical booster unit with pump protection |
| TN97OPM8 | 8-channel flexible bandwidth optical power monitor board (Extended C-band) |
| TN51ROP | Extended C-band Remote optical pump processing Board |
| TN51RPC | Extended C-Band forward Raman processing board |
| TN97RPC | Extended C band backward Raman processing board |
| TN97TD20 | 20-port tunable demultiplexing board (extended C band) |
| TN97TM20 | 20-ports flexible and tunable wavelength multiplexing board (Extended C-band) |
| TN96WSD9 | 9-ports flexible wavelength selective demultiplexing board (Extended C-band) |
| TN96WSM9 | 9-port flexible wavelength selective multiplexing board (extended C band) |
| Optical Multiplexer and Demultiplexer Boards | |
| Board | Description |
| TN11D40 | 40-port demultiplexer board |
| TN12D40 | |
| TN17D40 | |
| TN97D48 | 48-channel demultiplexing board |
| TN11M40 | 40-port multiplexer board |
| TN12M40 | |
| TN11M40V | 40-port multiplexer board with VOAs |
| TN12M40V | |
| TN17M40V | |
| TN97M48V | 48-channel multiplexing board with VOA |
| TN11ITL | TN11ITL04: interleaver board (C Band) |
| TN11ITL06: Interleaver board (Extended C-band) | |
| TN12FIU | Fiber interface unit |
| TN13FIU | |
| TN14FIU | |
| TN15FIU | |
| TN16FIU | |
| TN11SFIU | Fiber interface unit for synchronous timing |
