Product:
OSN9800 P32
Model:
OSN9800 P32C
Description:

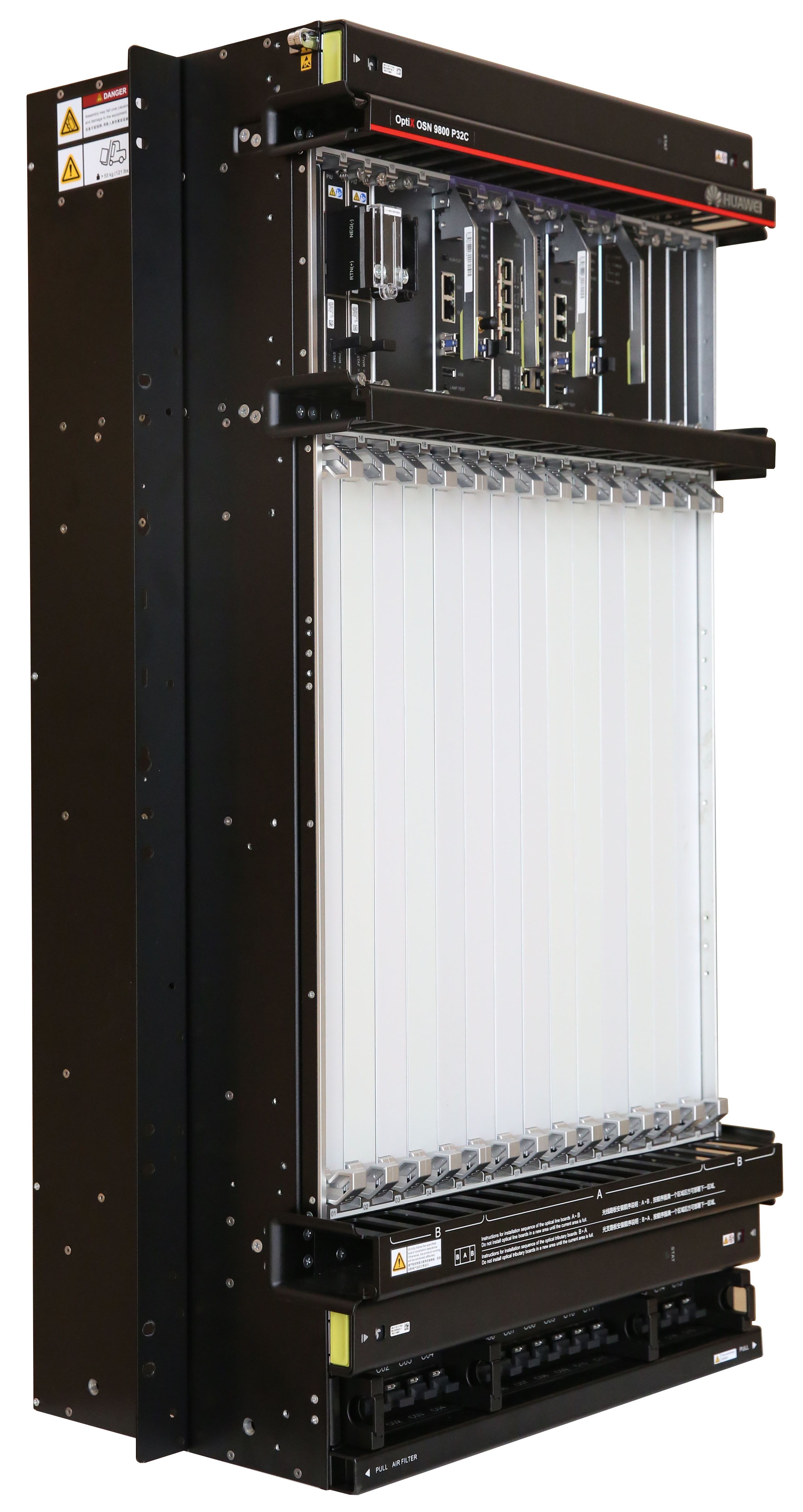

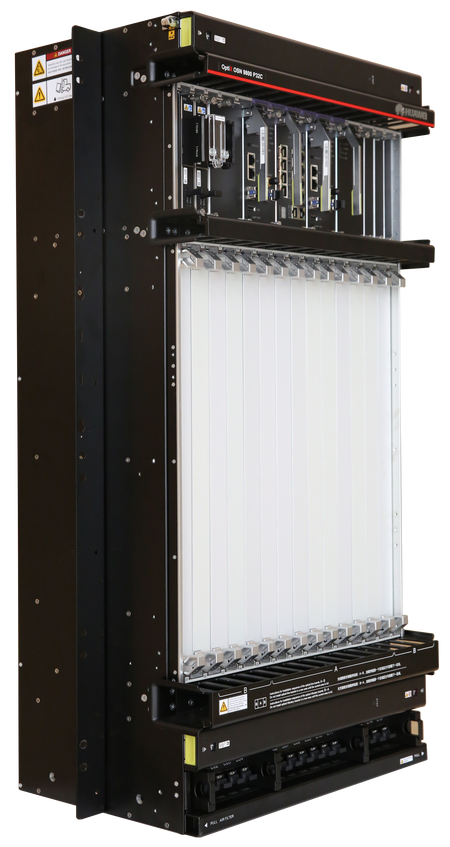

OptiX OSN9800 P32 OptiX OSN9800 P32C subrack
Price:
Regular price
$7,500.00 USD
OSN 9800 P32/P32C subrack is an ultra-large capacity all-optical cross-connect product. It is mainly used at the backbone core layer and metro aggregation layer. It works with the OSN 9800/1800 to build a complete E2E WDM/OTN backbone transmission solution, achieving transparent and ultra-large capacity transmission.
The specifications are as follows:
| Specifications | OSN 9800 P32 | OSN 9800 P32C | |
| Product appearance |
|
|
|
| Subrack dimensions | 1390 mm (H) x 496 mm (W) x 315 mm (D) | 897 mm (H) × 442 mm (W) × 316 mm (D) | |
| Suitable cabinet | 21-inch cabinets (ETSI 300 cabinets, such as A63B) | 19-inch cabinets | |
| 21-inch cabinets (ETSI 300 cabinets, such as A63B) | |||
| Max. number of service board slots | 32 | 14 x 11 U slots | |
| 20 x 5.5 U slots + 4 x 11 U slots | |||
| Switching capability | 1 to 32-degree reconfigurable optical add/drop multiplexer (ROADM) | 1 to 28 degrees at two-subrack cascading | |
| 1 to 14 degrees at one subrack | |||
| N/A | N/A | ||
| Max. number of wavelengths | Fixed grid: 120 wavelengths@50 GHz grid | Fixed grid: 120 wavelengths@50 GHz grid | |
| Flexible grid: The maximum number of wavelengths is related to the width of the flex channel. | Flexible grid: The maximum number of wavelengths is related to the width of the flex channel. | ||
| Channel spacing | Fixed grid: 50 GHz grid/100 GHz grid | Fixed grid: 50 GHz grid/100 GHz grid | |
| Flexible grid: Channel spacing is configurable, and the minimum can be set to 6.25 GHz. | Flexible grid: Channel spacing is configurable, and the minimum can be set to 6.25 GHz. | ||
| Center wavelength range | DWDM system: 1524.50 nm to 1572.06 nm (Super C band) | DWDM system: 1524.50 nm to 1572.06 nm (Super C band) | |
| Topology | Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring, and mesh | Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring, and mesh | |
| Redundancy and protection | Network level protection | Optical line protection | Optical line protection and intra-board 1+1 protection |
| Equipment level protection | Power supply redundancy, fan redundancy, communication control and clock processing unit redundancy | Power supply redundancy, fan redundancy, communication control and clock processing unit redundancy | |
| Optical power management | ALC, IPA | ALC, IPA | |
| Easy O&M | Optical Doctor (OD) system, Fiber Doctor (FD) system | Optical Doctor (OD) system, Fiber Doctor (FD) system | |
| Synchronization | Physical clock | Physical clock | |
| IEEE 1588v2 | IEEE 1588v2 | ||
| ITU-T G.8275.1 | ITU-T G.8275.1 | ||
| ITU-T G.8273.2 | ITU-T G.8273.2 | ||
| High-precision clock synchronization | High-precision clock synchronization | ||
| ASON | Optical-layer ASON | Optical-layer ASON | |
| Power supply | Nominal working voltage: | Nominal working voltage: | |
| -48 V DC/-60 V DC | -48V DC/-60V DC | ||
| Working voltage range: | Working voltage range: | ||
| -48 V DC: -40 V to -57.6 V | -48 V DC: -40 V to -57.6 V | ||
| -60 V DC: -48 V to -72 V | -60 V DC: -48 V to -72 V | ||
| Operation environment | Subrack temperature: | Subrack temperature: | |
| Long-term operation: 5°C (41°F) to 40°C (104°F) | Long-term operation: 0°C (32°F) to 45°C (113°F) | ||
| Short-term operationa: -5°C (23°F) to 45°C (113°F) | Short-term operationa: -5°C (23°F) to 50°C (122°F) | ||
| Relative humidity: | Relative humidity: | ||
| Long-term operation: 5% to 85% | Long-term operation: 5% to 85% | ||
| Short-term operationb: 5% to 90% | Short-term operationb: 5% to 90% | ||
| Mean Time To Repair (MTTR) | 1 hoursb | 1 hoursb | |
| NOTE: | |||
| Average time for only fault locating, board replacement, device restart, and service recovery, excluding component preparation and transportation time. | |||
| Mean Time Between Failure (MTBF) | 64.37 yearsb | 64.37 yearsb | |
| Availability | 0.999992906b | 0.999992906b | |
