Product: M210D TNG1M210D TNG1M210D TNG1M210DS06
Model: OptiX OSN9800 M05 M24 M12
Description: 10 x ANY-rate MUX 2 x OTU2 Wavelength Conversion boards Description
Price:
$7,600.00 USD
Get In Touch

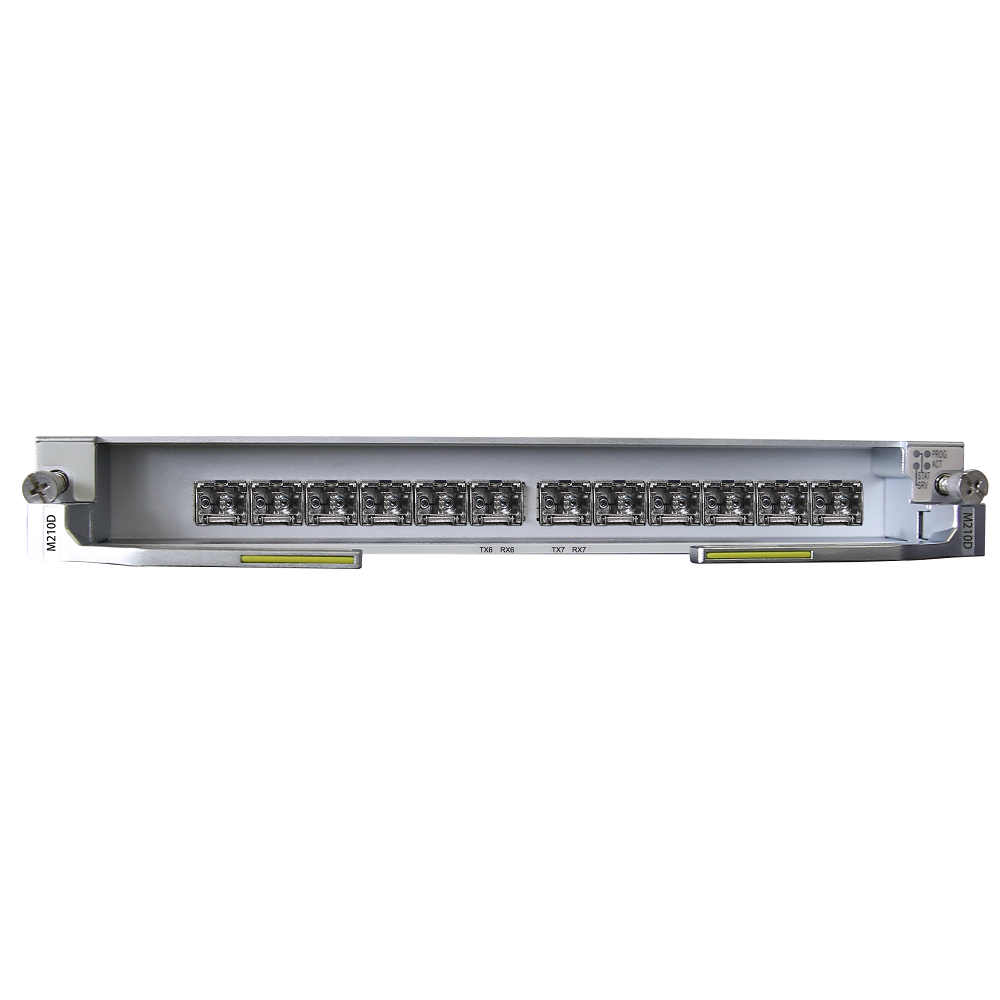

OptiX OSN9800 M210D TNG1M210D TNG1M210D TNG1M210DS06 10 x ANY-rate MUX 2 x OTU2 Wavelength Conversion board

The TNG1M210D board has two variants:TNG1M210D and TNG1M210DS06. The two variants are interchangeable.

Board

Adaptation Module

TNG1M210D
  • TSFP+-Extended C Band-9.95 to 11.3Gbps with CDR--1dBm-3dBm--16dBm-LC-SMF-40km-RCD@C80:1 to 4Span -15 to 45km,5 to 8Span 5 to 50km,9 to 14Span 10 to 55km is supported on the line side.
  • 1000BASE-T-SFP Module,RJ45 Electrical Module,Auto Negotiate,Longest Transmission Distance 100m,-40~85-003 is not supported on the client side.

TNG1M210DS06
  • TSFP+-Extended C Band-9.95 to 11.3Gbps with CDR--1dBm-3dBm--16dBm-LC-SMF-40km-RCD@C80:1 to 4Span -15 to 45km,5 to 8Span 5 to 50km,9 to 14Span 10 to 55km is not supported on the line side.
  • 1000BASE-T-SFP Module,RJ45 Electrical Module,Auto Negotiate,Longest Transmission Distance 100m,-40~85-003 is supported on the client side.



M210D TNG1M210D TNG1M210D TNG1M210DS06 Specifications

Board Item Unit Value
TNG1M210D Dimensions (H x W x D) mm 237.10×30.50×220.00
Dimensions (H x W x D) in. 9.34×1.20×8.67
Weight kg 1.6
Weight lb. 3.53
Typical Power Consumption W 80
Maximum Power Consumption W 84
