Product: M604S TNG1M604S TNG1M604ST32 TNG1M604ST33
Model: OptiX OSN9800 M05 M24 M12

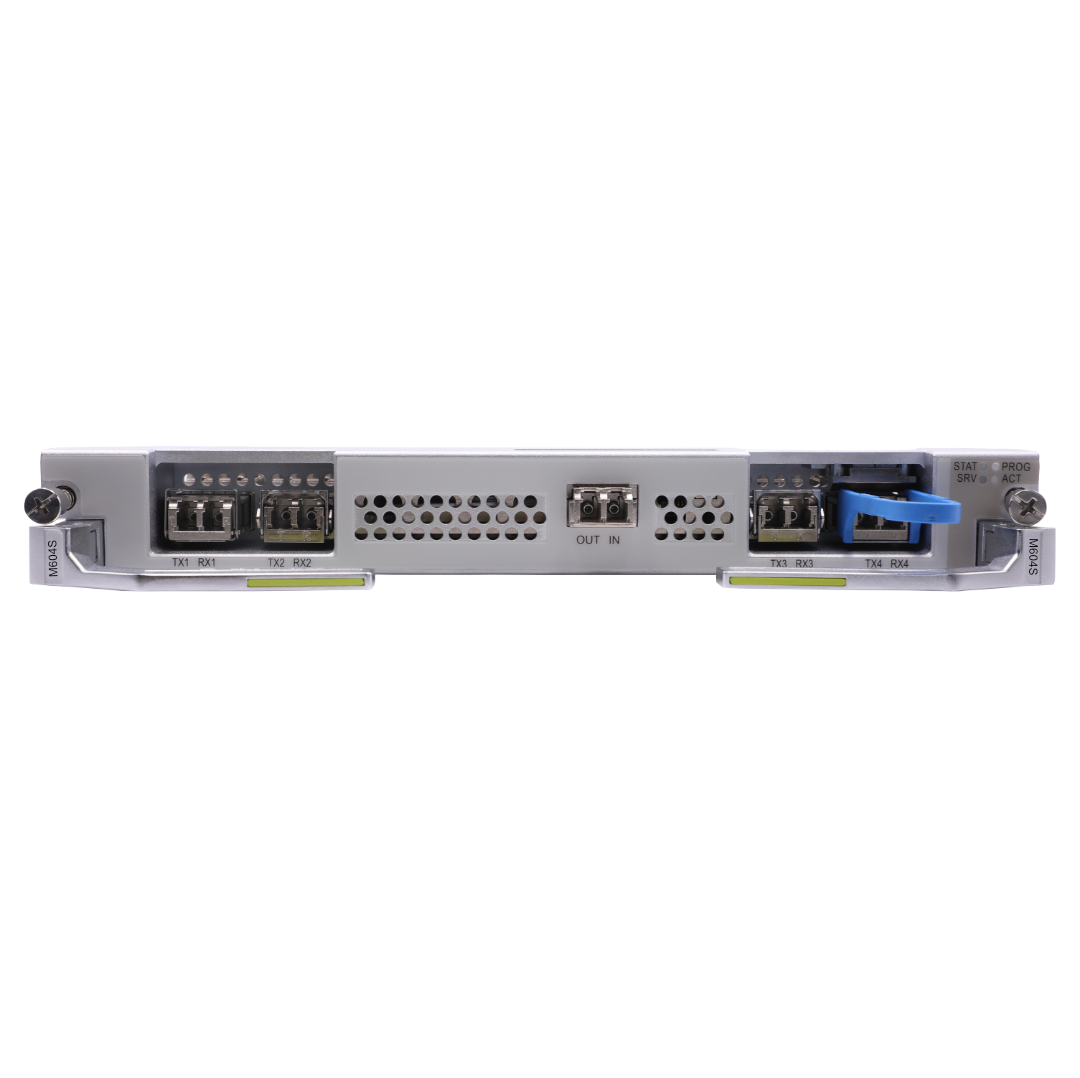

Description: 1 x 400Gbit/s or 4 x 100Gbit/s Service Multiplexing Into 1 x 200G/400G Programmable Wavelength Conversion Board
Price:
$7,600.00 USD
Get In Touch

OptiX OSN9800 M05 M24 M12 M604S TNG1M604S TNG1M604ST32 TNG1M604ST33

1 x 400Gbit/s or 4 x 100Gbit/s Service Multiplexing Into 1 x 200G/400G Programmable Wavelength Conversion Board

Board

Adaptation Module

TNG1M604ST32

400G MicroT32 (SLHC,SDFEC2@ 200G QPSK/400G 16QAM/etc.,Flex rate, Coherent, Tunable, Super C band,Flex grid)-High Optical Power is supported on the line side.

TNG1M604ST33

400G MicroT33(ULHA,SDFEC2@200G QPSK/400G 16QAM/etc.,Coherent,Tunable,Super C band, Flex grid)-High Optical Power is supported on the line side.



Specifications

Board Item Unit Value
TNG1M604S Dimensions (H x W x D) mm 237.10×30.50×220.00
Dimensions (H x W x D) in. 9.34×1.20×8.67
Weight kg 2.68
Weight lb. 5.91
Typical Power Consumption W 135
Maximum Power Consumption W 143



Mapping relationship of the TNG1M604S board

Board

Matching Device

Matching System Control Board - Cross-Connect Board

Initial Version of the Matching System Control and Cross-Connect Board
TNG1M604S 9800 M05
  • TME1CTU
  • TME2CTU
 V100R020C10SPC200
TME3CTU V100R020C10SPC300
9800 M12
  • TMF1SCC
  • TMF2SCC
 V100R020C10SPC200
TME3CTU V100R020C10SPC300
9800 M24
  • TNG1CXP (1:1 mode)
  • TNG1CXP-TNG3CXCS01 (1:3 mode)
  • TNG1CXP-TNG3CXCS02 (1:3 mode)
  • TNG3CXP (1:1 mode)
  • TNG3CXP-TNG3CXCS02 (1:3 mode)
 V100R020C10SPC200
  • TNG4CXP (1:1 mode)
  • TNG4CXP-TNG3CXCS02 (1:3 mode)
 V100R021C00SPC200

RTU

Name Description Remarks
LNSDRTUM01 Line Capacity RTU for 200G+ MSA Port (Per 100G) By default, the capacity of each WDM-side port on the board is 100G. One RTU item is required for every 100G capacity increase.
LNSDRTUQ01 Client Port Enable RTU for 100G QSFP Port By default, no client-side port can be used on the board. One RTU item is required for every client-side 100G QSFP28 port.
LNSDRTUC05 Client Port Enable RTU for 400G Port By default, no client-side port can be used on the board. One RTU item is required for every client-side 400G port.
