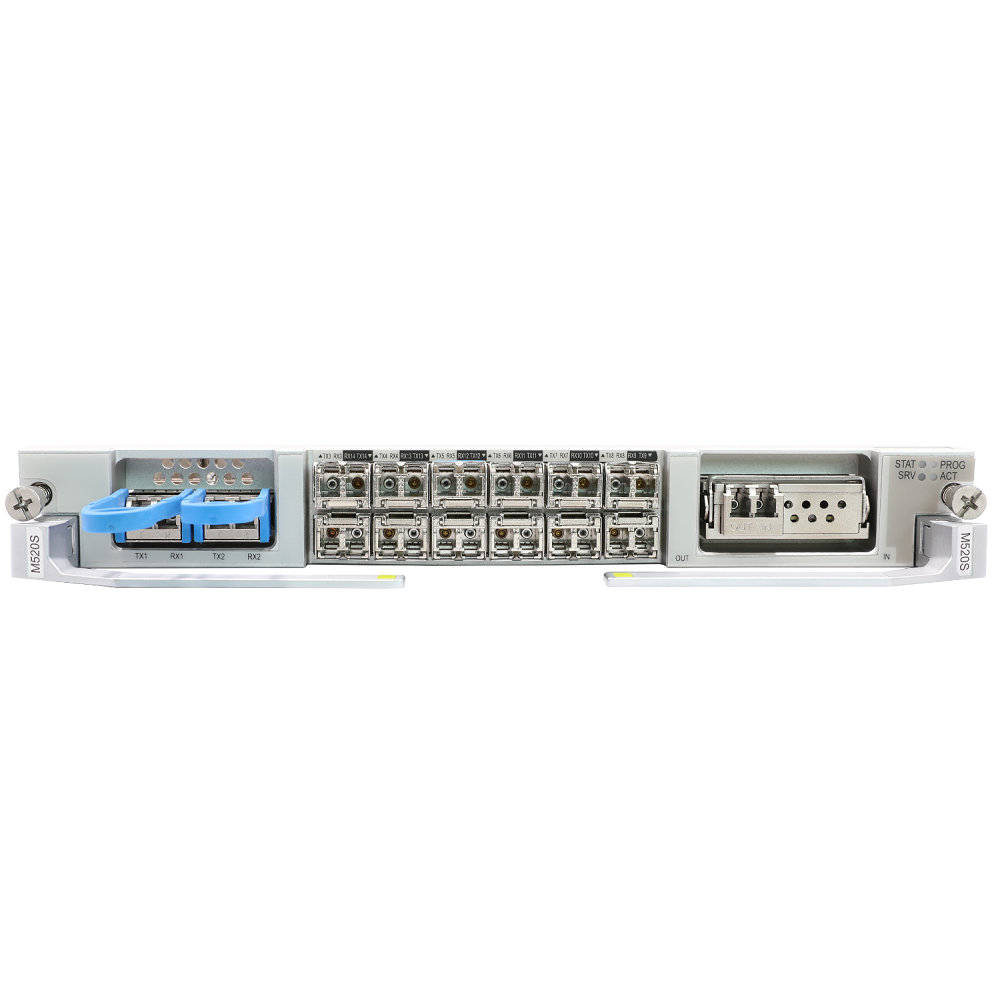

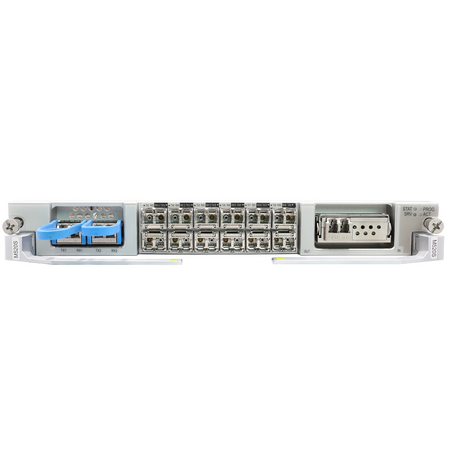

Product: M520SM TNG1M520SM TNG1M520SM01 TNG1M520SM06

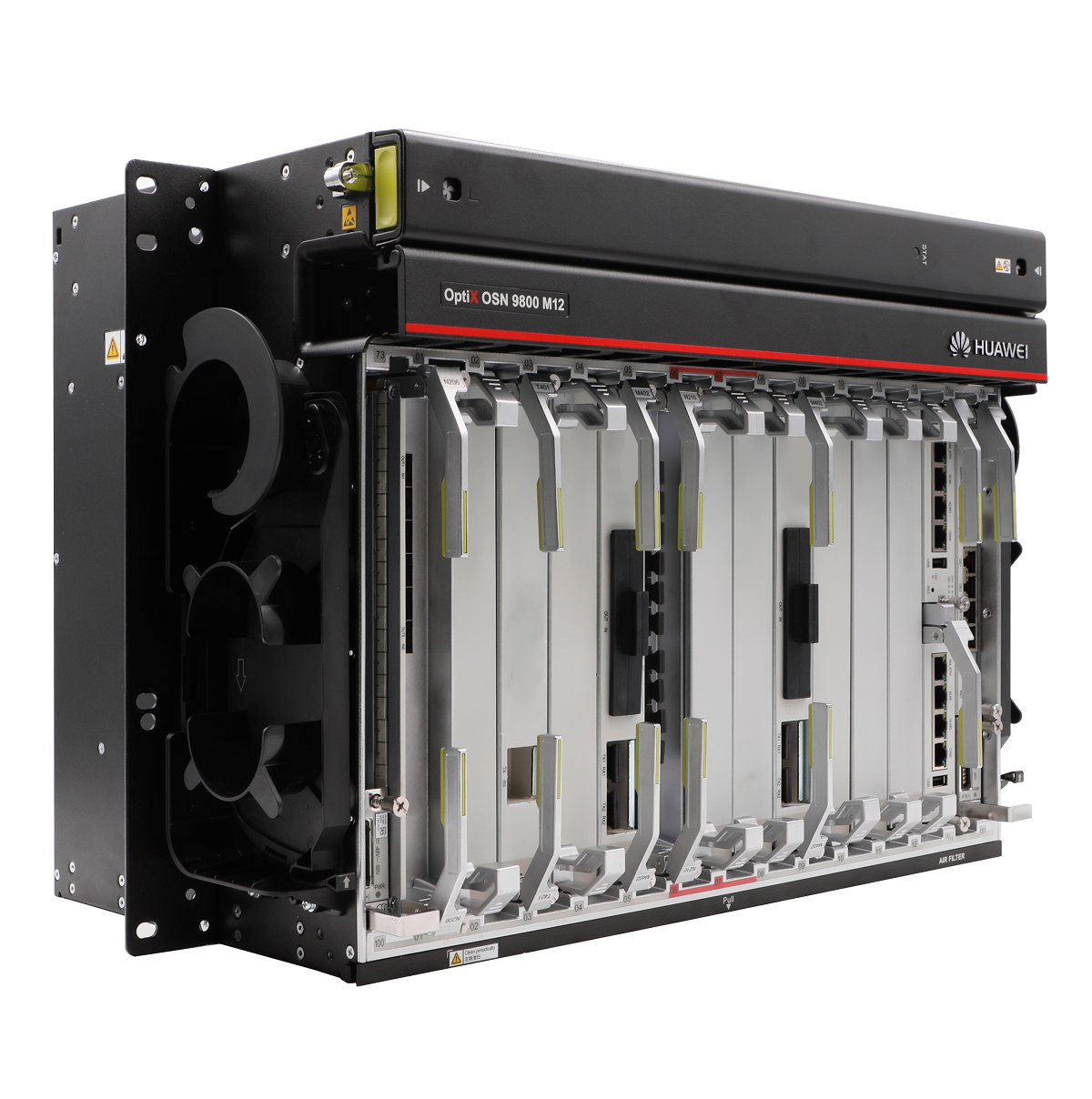

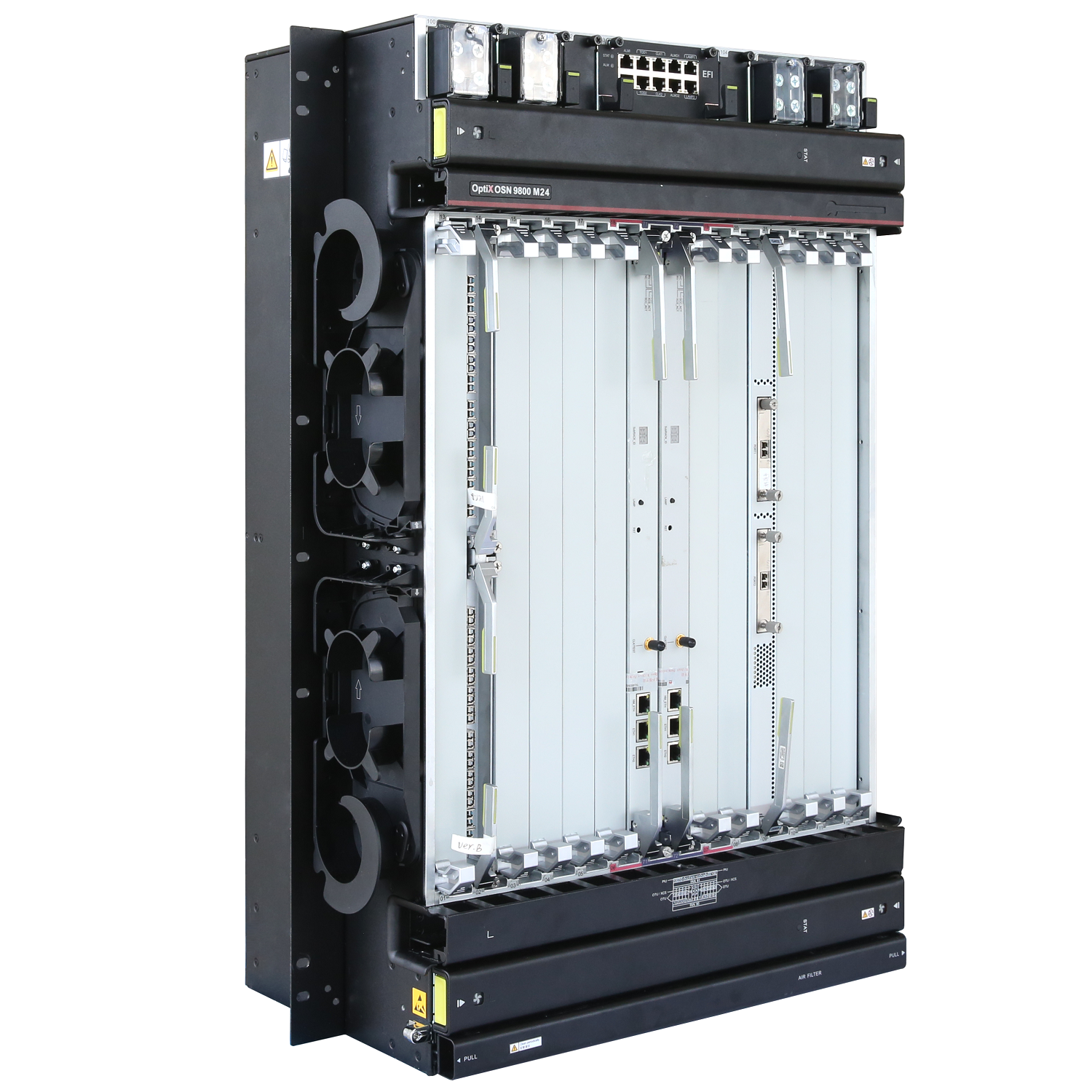

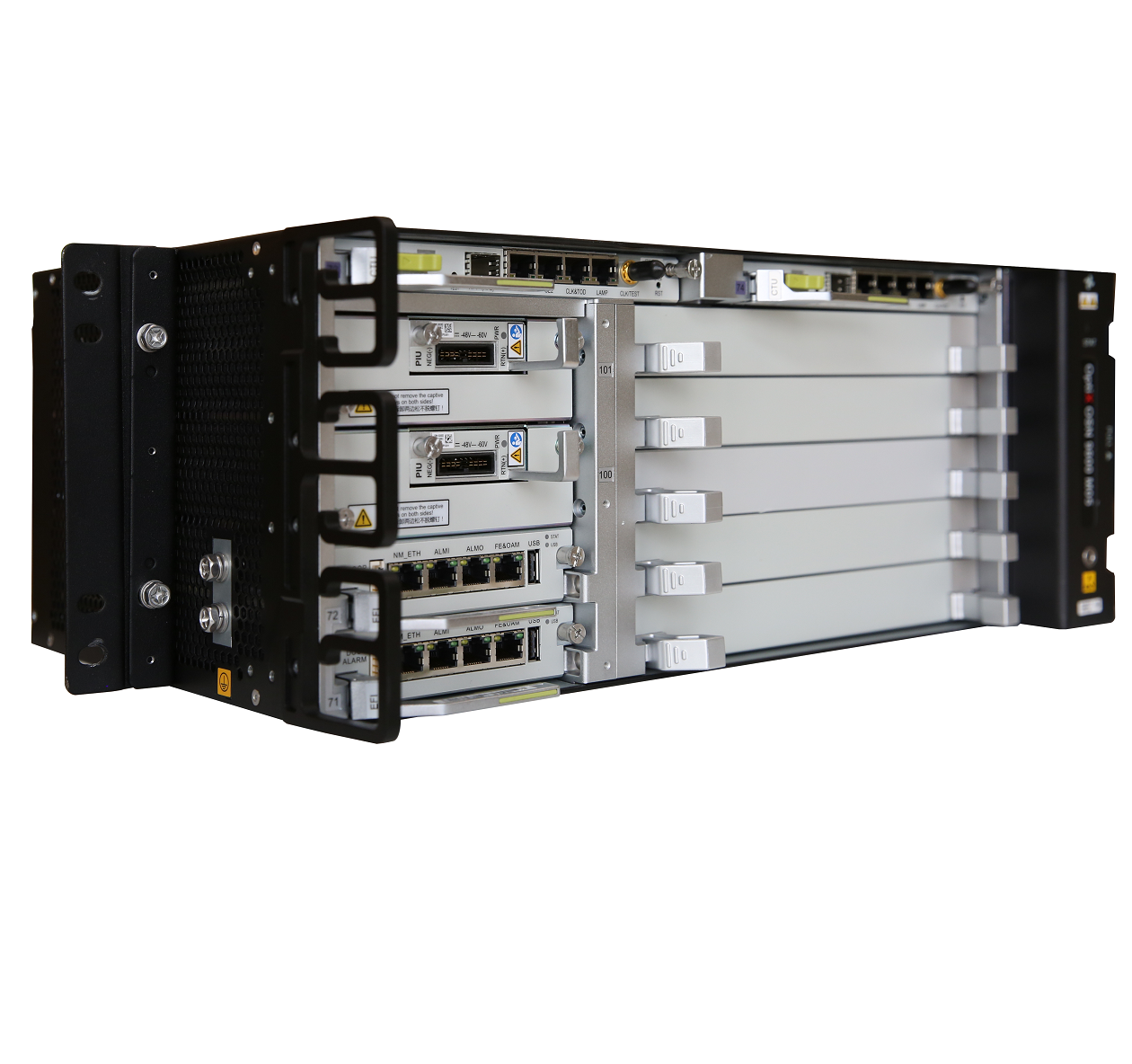

Model: OptiX OSN9800 M05 M24 M12
Description: 20 x 10GE or 2 x 100GE Service Multiplexing into 1 x 200G/100G Programmable Wavelength Conversion Board
Price:
$7,600.00 USD
Get In Touch

OptiX OSN9800 M05 M24 M12 M520SM TNG1M520SM TNG1M520SM01 TNG1M520SM06  20 x 10GE or 2 x 100GE Service Multiplexing into 1 x 200G/100G Programmable Wavelength Conversion Board

TNG1M520SM board has two variants: TNG1M520SM01 and TNG1M520SM06.

Board

Functions and Features

TNG1M520SM06

Bidirectional switching of intra-board 1+1 protection and 200G QPSK are supported.

TNG1M520SM01

Bidirectional switching of intra-board 1+1 protection and 200G QPSK are not supported.



Specifications

Board Item Unit Value
TNG1M520SM Dimensions (H x W x D) mm 237.10×30.50×220.00
Dimensions (H x W x D) in. 9.34×1.20×8.67
Weight kg 2.3
Weight lb. 5.07
Typical Power Consumption (Muxponder mode) W 126
Typical Power Consumption (Muti-function mode) W 135
Maximum Power Consumption (Muxponder mode) W 134
Maximum Power Consumption (Muti-function mode) W 150
 Mapping relationship of the TNG1M520SM01 board

Board

Matching Equipment

Matching System Control Board - Cross-Connect Board

Initial Version of the Matching System Control and Cross-Connect Board

Service Capacity
TNG1M520SM01 9800 M05
  • TME1CTU
  • TME2CTU
 V100R019C10SPC600
  • OTN: 200Gbit/s
TME3CTU V100R020C10SPC300
  • OTN: 200Gbit/s
9800 M12
  • TMF1SCC
  • TMF2SCC
 V100R019C10SPC600
  • OTN: 200Gbit/s
TME3CTU V100R020C10SPC300
  • OTN: 200Gbit/s
9800 M24
  • TNG1CXP (1:1 mode)
  • TNG1CXP-TNG3CXCS01 (1:3 mode)
  • TNG1CXP-TNG3CXCS02 (1:3 mode)
  • TNG3CXP (1:1 mode)
  • TNG3CXP-TNG3CXCS02 (1:3 mode)
 V100R019C10SPC600
  • OTN/OSU: 200Gbit/s
  • TNG4CXP (1:1 mode)
  • TNG4CXP-TNG3CXCS02 (1:3 mode)
 V100R021C00SPC200
  • OTN/OSU: 200Gbit/s

Mapping relationship of the TNG1M520SM06 board

Board

Matching Equipment

Matching System Control Board - Cross-Connect Board

Initial Version of the Matching System Control and Cross-Connect Board

Compatible Version

Service Capacity
TNG1M520SM06 9800 M05
  • TME1CTU
  • TME2CTU
 V100R020C10SPC200 V100R019C10SPC600 and later versions
  • OTN: 200Gbit/s
TME3CTU V100R020C10SPC300 -
  • OTN: 200Gbit/s
9800 M12
  • TMF1SCC
  • TMF2SCC
 V100R020C10SPC200 V100R019C10SPC600 and later versions
  • OTN: 200Gbit/s
TME3CTU V100R020C10SPC300 -
  • OTN: 200Gbit/s
9800 M24
  • TNG1CXP (1:1 mode)
  • TNG1CXP-TNG3CXCS01 (1:3 mode)
  • TNG1CXP-TNG3CXCS02 (1:3 mode)
  • TNG3CXP (1:1 mode)
  • TNG3CXP-TNG3CXCS02 (1:3 mode)
 V100R020C10SPC200 V100R019C10SPC600 and later versions
  • OTN/OSU: 200Gbit/s
  • TNG4CXP (1:1 mode)
  • TNG4CXP-TNG3CXCS02 (1:3 mode)
 V100R021C00SPC200 -
  • OTN/OSU: 200Gbit/s
