Product:
M504S NG2M504S TNG2M504ST33
Model:
OptiX OSN9800 M05 M24 M12
Description:
2 x 100Gbit/s Service Multiplexing Into 1 x 200G Wavelength Conversion Board Description
Price:
Regular price
$7,600.00 USD

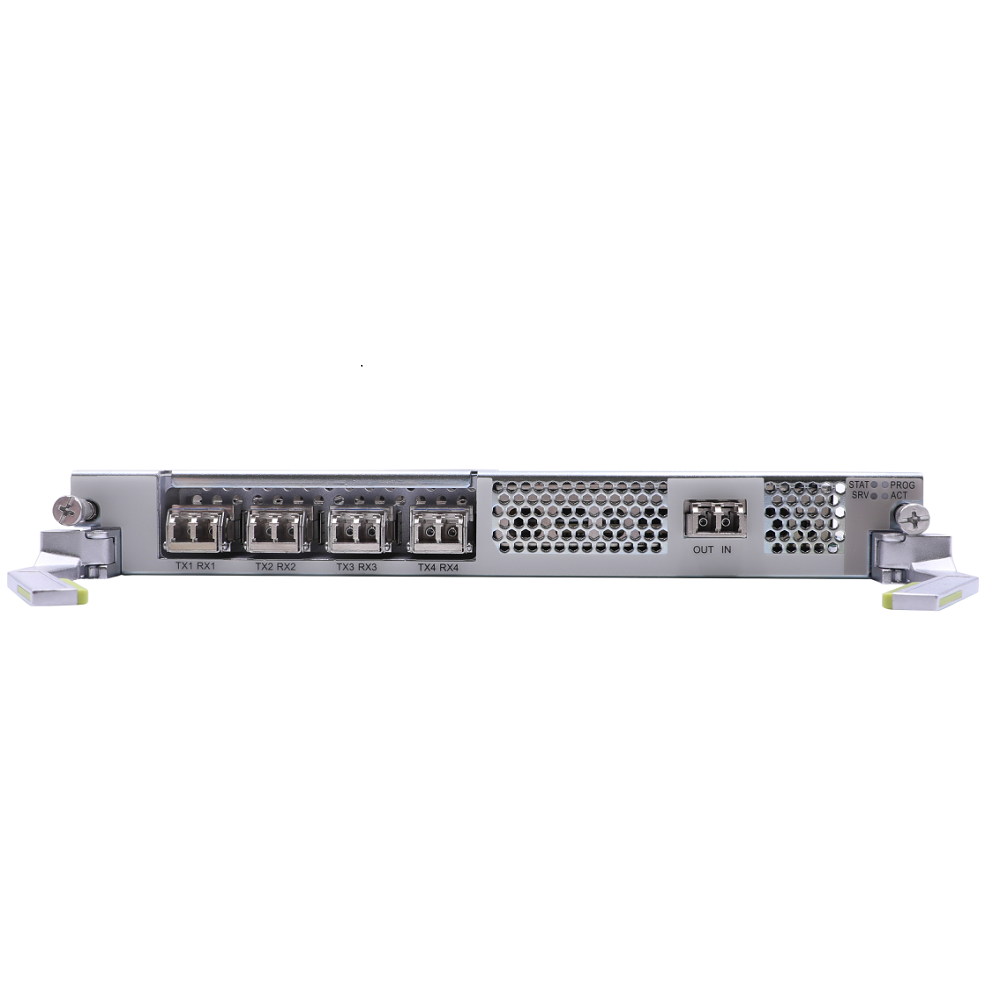

OptiX OSN9800 M05 M24 M12 M504S NG2M504S TNG2M504ST33 2 x 100Gbit/s Service Multiplexing Into 1 x 200G Wavelength Conversion Board
|
Board |
Matching Device |
Matching System Control Board - Cross-Connect Board |
Initial Version of the Matching System Control and Cross-Connect Board |
|---|---|---|---|
| TNG2M504S | 9800 M05 |
|
V100R020C10SPC200 |
| TME3CTU | V100R020C10SPC300 | ||
| 9800 M12 |
|
V100R020C10SPC200 | |
| TME3CTU | V100R020C10SPC300 | ||
| 9800 M24 |
|
V100R020C10SPC200 | |
|
V100R021C00SPC200 |
RTU
| Name | Description | Remarks |
|---|---|---|
| LNSDRTUM01 | Line Capacity RTU for 200G+ MSA Port (Per 100G) | By default, the capacity of each WDM-side port on the board is 100G. One RTU item is required for every 100G capacity increase. |
| LNSDRTUQ01 | Client Port Enable RTU for 100G QSFP Port | By default, no client-side port can be used on the board. One RTU item is required for every client-side 100G QSFP28 port. |
| LNSDRTUQ02 | Client Port Enable RTU for 40G/50G QSFP Port | By default, no client-side port can be used on the board. One RTU item is required for every client-side 40G/50G QSFP port. |
Specifications
| Board | Item | Unit | Value |
|---|---|---|---|
| TNG2M504S | Dimensions (H x W x D) | mm | 237.10×30.50×220.00 |
| Dimensions (H x W x D) | in. | 9.34×1.20×8.67 | |
| Weight | kg | 2.5 | |
| Weight | lb. | 5.51 | |
| Typical Power Consumption | W | 126 | |
| Maximum Power Consumption | W | 134 |
