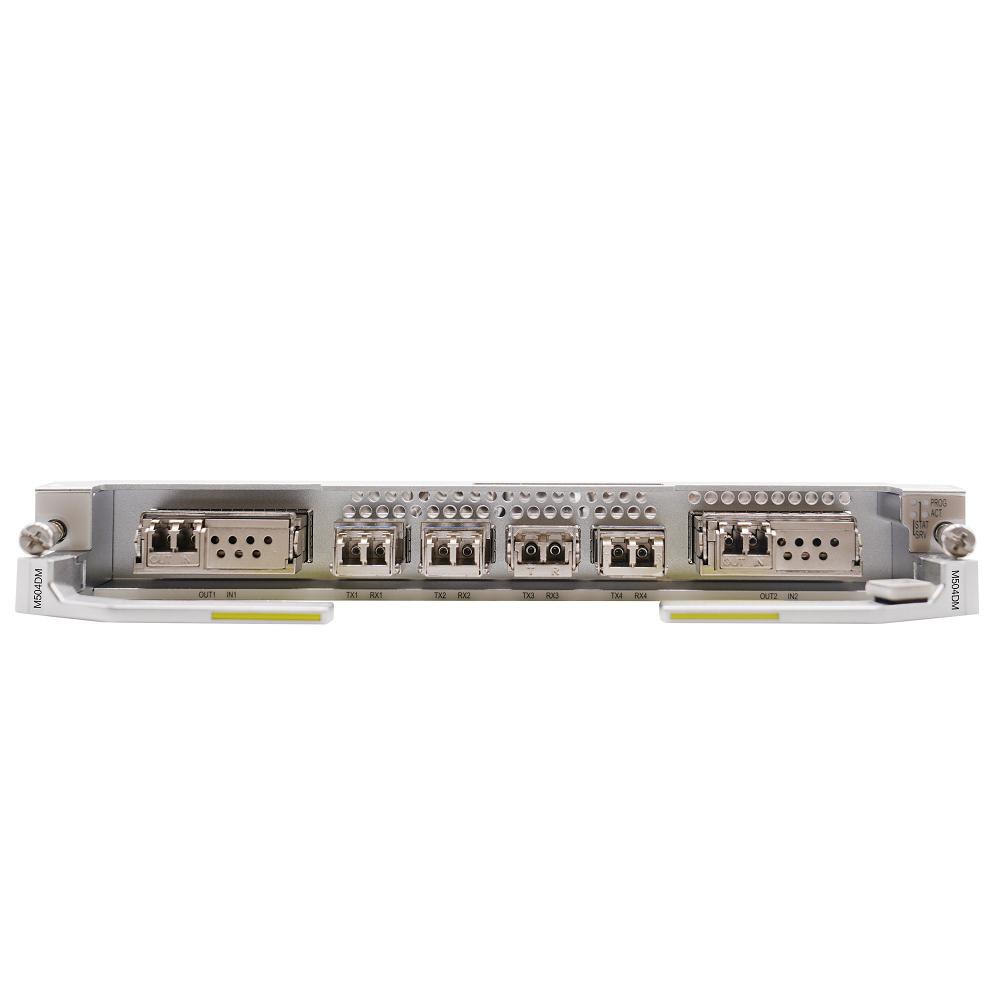

Product: M504DM TNG2M504DM TNG2M504DMC01
Model: OptiX OSN9800 M05 M24 M12
Description: 4 x 100Gbit/s Service Multiplexing Into 2 x 200G/100G Programmable Wavelength Conversion Board Description
Price:
$7,600.00 USD
Get In Touch

OptiX OSN9800 M05 M24 M12 M504DM TNG2M504DM    TNG2M504DMC01

 4 x 100Gbit/s Service Multiplexing Into 2 x 200G/100G Programmable Wavelength Conversion Board

Mapping relationship of the TNG2M504DM board

Board

Matching Device

Matching System Control Board - Cross-Connect Board

Initial Version of the Matching System Control and Cross-Connect Board
TNG2M504DM 9800 M05
  • TME1CTU
  • TME2CTU
  • TME3CTU
 V100R022C00SPC020
9800 M12
  • TME3CTU
  • TMF1SCC
  • TMF2SCC
 V100R022C00SPC020
9800 M24
  • TNG1CXP (1:1 mode)
  • TNG1CXP-TNG3CXCS01 (1:3 mode)
  • TNG1CXP-TNG3CXCS02 (1:3 mode)
  • TNG3CXP (1:1 mode)
  • TNG3CXP-TNG3CXCS02 (1:3 mode)
  • TNG4CXP (1:1 mode)
  • TNG4CXP-TNG3CXCS02 (1:3 mode)
 V100R022C00SPC020

RTU

Name Description Remarks
LNSDRTUC01 Line Port Enable RTU for 200G CFP Port By default, the WDM-sideport cannot be used on the board. Right to use (RTU) allows the usage of the WDM-side port.
LNSDRTUC02 Line Capacity RTU for 200G CFP Port(Per 100G) By default, the capacity of each WDM-side CFP port on the board is 100G. One RTU item is required for every 100G capacity increase.
LNSDRTUQ01 Client Port Enable RTU for 100G QSFP Port By default, no client-side port can be used on the board. One RTU item is required for every client-side 100G QSFP28 port.
LNSDRTUQ02 Client Port Enable RTU for 40G/50G QSFP Port By default, no client-side port can be used on the board. One RTU item is required for every client-side 40G/50G QSFP port.

Substitution

Table 2 TNG2M504DM substitution relationship
Original Board Substitute Board Substitute Type Restriction
TNG1M504DM TNG2M504DM Version substitution
  • During board substitution using the version replacement function, the NE where the TNG1M504DM board resides does not need to be upgraded.
  • The TNG2M504DM board can be created as the logical board of the TNG1M504DM board on the NMS and replace the TNG1M504DM board. The TNG2M504DM board has only the functions of the TNG1M504DM board.
  • During board substitution using the version replacement function, because the TNG1M504DM board and TNG2M504DM board support the same optical modules, the optical modules of the TNG1M504DM board can still be used.

Specifications

Board Item Unit Value
TNG2M504DM Dimensions (H x W x D) mm 237.10×30.50×220.00
Dimensions (H x W x D) in. 9.34×1.20×8.67
Weight kg 2.1
Weight lb. 4.63
Typical Power Consumption W 139
Maximum Power Consumption W 148
