Product: M504D TNG3M504D TNG3M504DC01
Model: OptiX OSN9800 M05 M24 M12
Description: 4 x 100Gbit/s Service Multiplexing Into 2 x 200G/100G Programmable Wavelength Conversion BoardDescription
Price:
$7,600.00 USD
Get In Touch

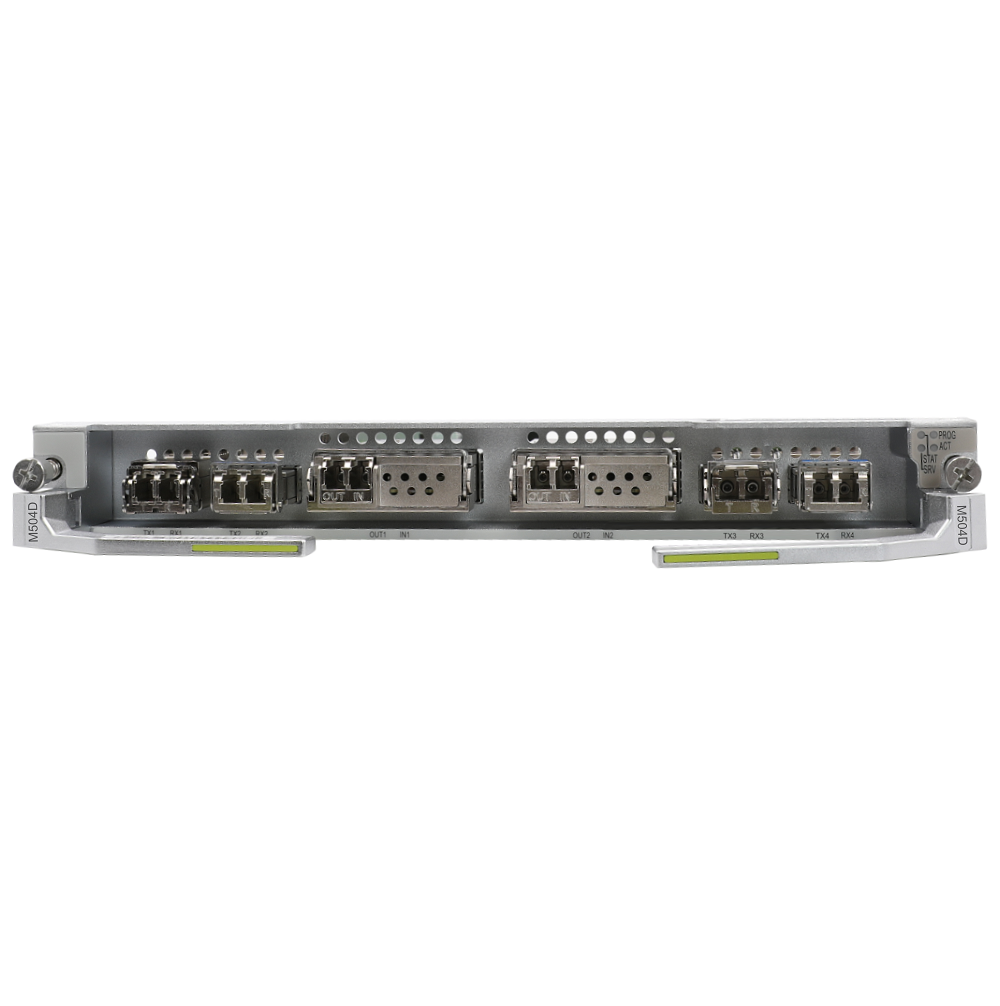

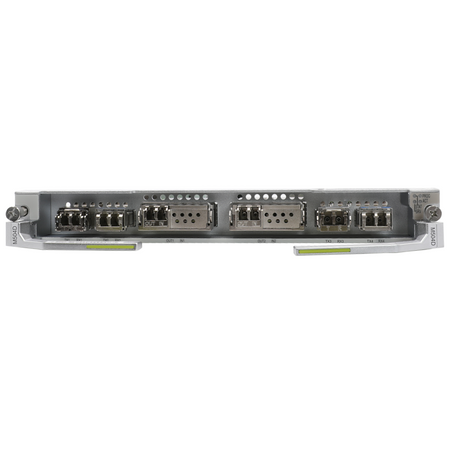

OptiX OSN9800 M05 M24 M12 M504D TNG3M504D TNG3M504DC01 4 x 100Gbit/s Service Multiplexing Into 2 x 200G/100G Programmable Wavelength Conversion Board

Mapping relationship of the TNG3M504D board

Board

Matching Device

Matching System Control Board - Cross-Connect Board

Initial Version of the Matching System Control and Cross-Connect Board
TNG3M504D 9800 M05
  • TME1CTU
  • TME2CTU
  • TME3CTU
 V100R021C10SPC100
9800 M12
  • TME3CTU
  • TMF1SCC
  • TMF2SCC
 V100R021C10SPC100
9800 M24
  • TNG1CXP (1:1 mode)
  • TNG1CXP-TNG3CXCS01 (1:3 mode)
  • TNG1CXP-TNG3CXCS02 (1:3 mode)
  • TNG3CXP (1:1 mode)
  • TNG3CXP-TNG3CXCS02 (1:3 mode)
  • TNG4CXP (1:1 mode)
  • TNG4CXP-TNG3CXCS02 (1:3 mode)
 V100R021C10SPC100

RTU

Name Description Remarks
LNSDRTUQ01 Client Port Enable RTU for 100G QSFP Port By default, no client-side port can be used on the board. One RTU item is required for every client-side 100G QSFP28 port.
LNSDRTUC02 Line Capacity RTU for 200G CFP Port(Per 100G) By default, the capacity of each WDM-side CFP port on the board is 100G. One RTU item is required for every 100G capacity increase.
LNSDRTUC01 Line Port Enable RTU for 200G CFP Port By default, the WDM-sideport cannot be used on the board. Right to use (RTU) allows the usage of the WDM-side port.

pecifications

Board Item Unit Value
TNG3M504D Dimensions (H x W x D) mm 237.10×30.50×220.00
Dimensions (H x W x D) in. 9.34×1.20×8.67
Weight kg 1.54
Weight lb. 3.4
Typical Power Consumption W 108
Maximum Power Consumption W 114
