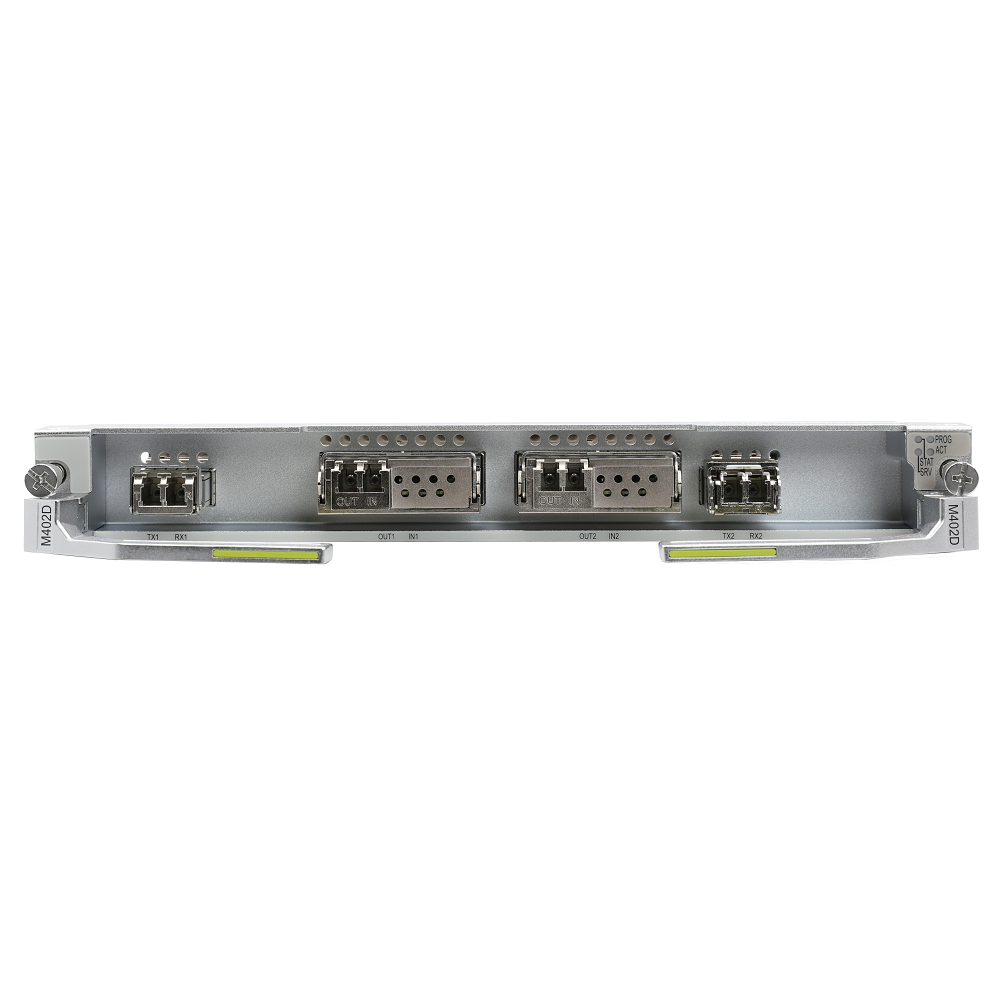

Product: M402D TNG3M402D TNG3M402DC01
Model: OptiX OSN9800 M05 M24 M12
Description: Multiplexes two channels of 100 Gbit/s services into two channels of 100G signals Description
Price:
$7,600.00 USD
Get In Touch



OptiX OSN9800 M05 M24 M12 M402D TNG3M402D TNG3M402DC01 Multiplexes two channels of 100 Gbit/s services into two channels of 100G signals

Mapping relationship of the TNG3M402D board

Board

Matching Device

Matching System Control Board - Cross-Connect Board

Initial Version of the Matching System Control and Cross-Connect Board

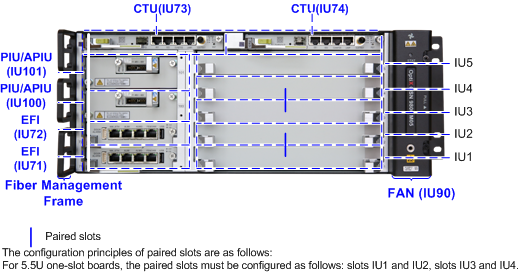

TNG3M402D 9800 M05
  • TME1CTU
  • TME2CTU
  • TME3CTU
 V100R021C10SPC100
9800 M12
  • TME3CTU
  • TMF1SCC
  • TMF2SCC
 V100R021C10SPC100

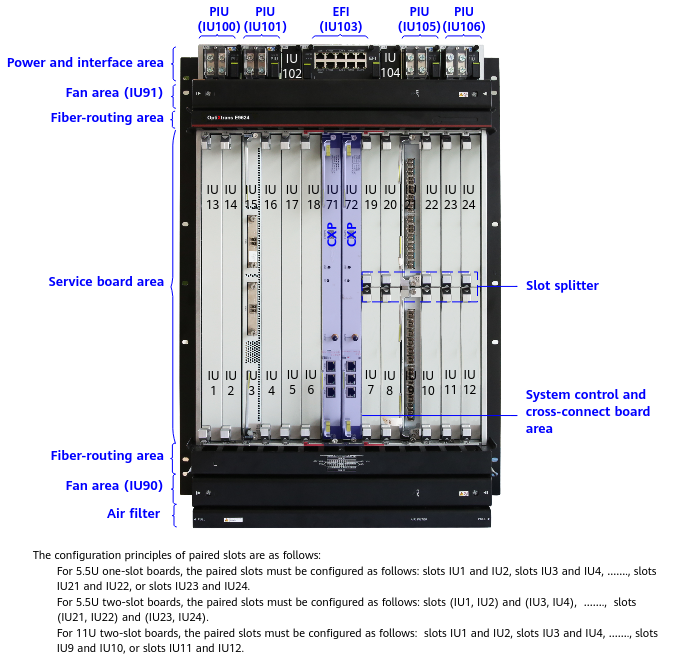

9800 M24
  • TNG1CXP (1:1 mode)
  • TNG1CXP-TNG3CXCS01 (1:3 mode)
  • TNG1CXP-TNG3CXCS02 (1:3 mode)
  • TNG3CXP (1:1 mode)
  • TNG3CXP-TNG3CXCS02 (1:3 mode)
  • TNG4CXP (1:1 mode)
  • TNG4CXP-TNG3CXCS02 (1:3 mode)
 V100R021C10SPC100

RTU

Name Description Remarks
LNSDRTUQ01 Client Port Enable RTU for 100G QSFP Port By default, no client-side port can be used on the board. One RTU item is required for every client-side 100G QSFP28 port.



Board Specifications

Board Item Unit Value
TNG3M402D Dimensions (H x W x D) mm 237.10×30.50×220.00
Dimensions (H x W x D) in. 9.34×1.20×8.67
Weight kg 1.48
Weight lb. 3.26
Typical Power Consumption W 92
Maximum Power Consumption W 97
