Product:
Optix 2500+ Metro3000
Model:
Optix 2500+ Metro3000
Description:

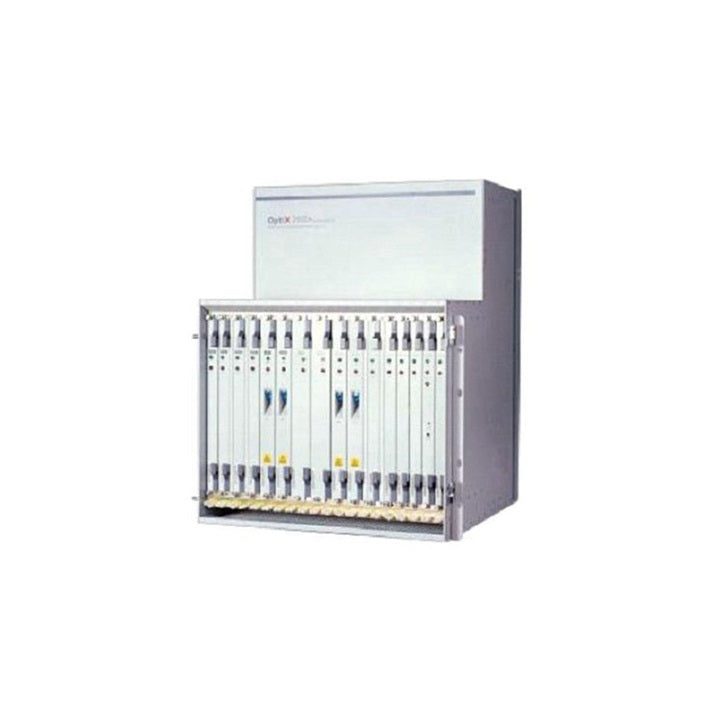

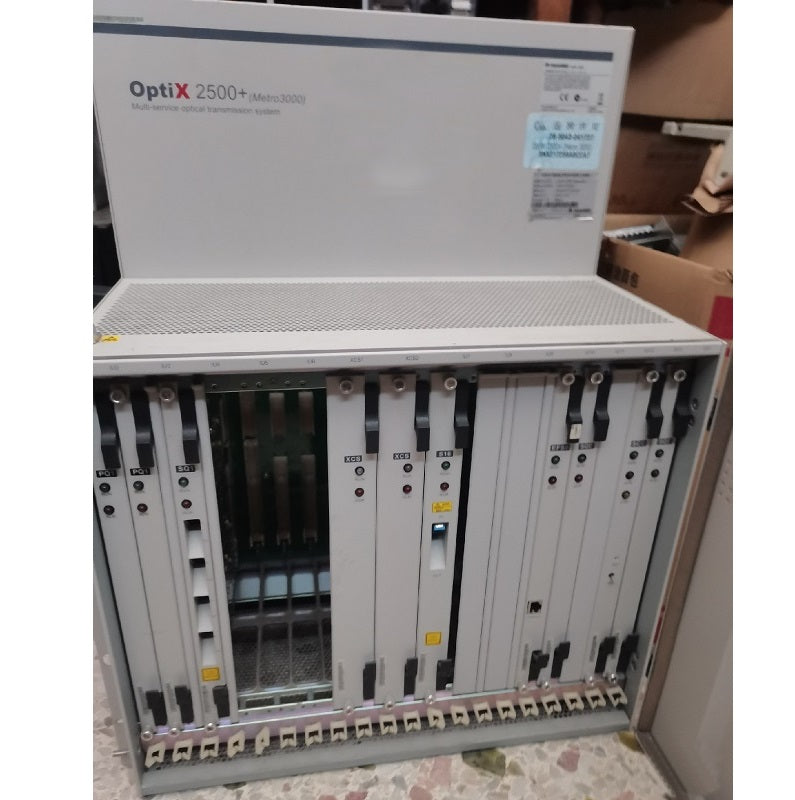

Optix 2500+ Metro3000 STM-16 MADM / MSTP optical transmission system
Price:
Regular price
$1,800.00 USD
OptiX 2500 + (Metro3000) STM-16 MADM / MSTP optical transmission system (hereinafter referred to as the OptiX 2500 +) device is a multi-service transport platform (MSTP) equipment. The device is the SDH / ATM / Ethernet / DWDM technology integration; it not only has SDH equipment and flexible networking and service scheduling capability (MADM), but also can through 2-layers’ data services, achieve ATM / Ethernet service access, processing, transmission and scheduling in a single device multiple services such as voice, data transmission and processing.
| 03032465 OptiX 2500+-SS61PQM01-T1/E1 Electrical interface board |
| 03032147 OptiX 2500+-SS62PL3A01-3xE3 Electrical interface board |
| 03032148 OptiX 2500+-SS62PL3B01-3xT3 Electrical interface board |
| 03032976 OptiX 2500+-SS63SDE01-2xSTM-1 Electrical interface board(75ohm) |
| 03031612 OptiX 2500+-SS61SD1A02-2xSTM-1 optical interface board(S-1.1,SC) |
| 03031317 OptiX 2500+-SS61SQ1A02-4xSTM-1 optical interface board(S-1.1,SC) |
| 03031676 OptiX 2500+-SS61SL4A01-STM-4 optical interface board(S-4.1,SC) |
| 03031898 OptiX 2500+-SS61BA202- Optical Power Amplifier Board (14dBm,SC) |
| 03031825 OptiX 2500+-SS61BA201- Dual Optical Power Amplifier Board (14dBm,SC) |
| 03031900 OptiX 2500+-SS61BA204- Dual Optical Power Amplifier Board (17dBm,SC) |
| 03031826 OptiX 2500+-SS61BPA01- Optical Power and pre-amplifier board (14/ -37dbm,SC) |
| 03031902 OptiX 2500+-SS61BPA02- Optical Power and pre-amplifier board (17/ -37dbm,SC) |
| 03032383 OptiX 2500+-SS61TDA01- Cassette Audio Data interface Board |
| 03031142 OptiX 2500-SS31BA2CAZA0- Dual Optical Power Amplifier Board (14dBm,FC,40mm) |
| 03031145 OptiX 2500-SS31BA2CAZC0- Dual Optical Power Amplifier Board (14/17dBm,FC,40mm) |
| 03031148 OptiX 2500-SS31BA2CCZC0- Dual Optical Power Amplifier Board (17dBm,FC,40mm) |
| 03031151 OptiX 2500-SS31BA2CCZZ0- Optical Power Amplifier Board (17dBm,FC,40mm) |
| 03031152 OptiX 2500-SS31BA2CAZZ0- Optical Power Amplifier Board (14dBm,FC,40mm) |
| 03031155 OptiX 2500-SS32SCC02- Main Control Board (32mm) |
| 03031209 OptiX 2500-SS31RSP0- Regenerative segment Signal Processing Board |
| 03031263 OptiX 2500-SS31BPAC0- Optical power amplifier front amplifier Integrated Board (14dBm,SC) |
| 03031265 OptiX 2500-SS31BPAM0- Optical Amplifier front amplifier Integrated Board (17dBm,SC) |
| 03031643 OptiX 2500-SS32L1606-STM-16 optical interface board(S-16.1,FC) |
| 03031644 OptiX 2500-SS32L1607-STM-16 optical interface board(L-16.1,FC) |
| 03031645 OptiX 2500-SS32L1608-STM-16 optical interface board(L-16.2,FC) |
| 03031646 OptiX 2500-SS32L1609-STM-16 optical interface board(V-16.2,FC) |
| 03031647 OptiX 2500-SS32L1610-STM-16 optical interface board(U-16.2,FC) |
| 03034038 OptiX 2500-SS32L1611-STM-16 optical interface board(Le-16.2,FC) |
SS61PQ1B01 03031662
SS62PQ1B01 03032351
SS62PQM01 03032465
SS62PL3B01 03032148
SS62PL3A01 03032147
SS63SDE 03032976
SS62SQE01 03032362
SS63XCS01 03033926 SS62XCS01 03031925
SS61SCC0 03030984
SS62SCC 03032241
SS61EIPC01 03031836
SS62FB2 03023515
SS61LPDR 03023183
SS61MD201 03033747
SS62FB1 03023279
