Product:
MPUB 03053557 03030NAH WP22MPUB4
Model:

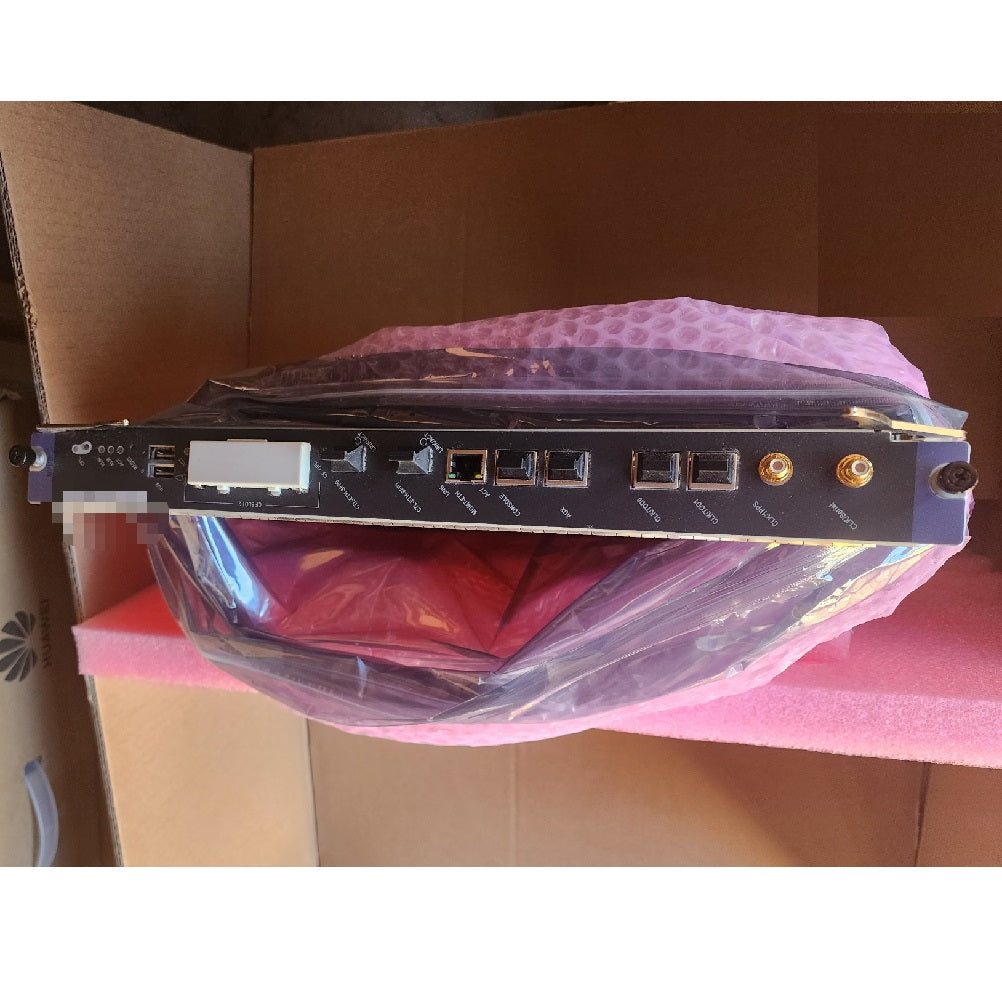

MPU MPUB 03053557 03030NAH WP22MPUB4 Main Processing Unit controls
Description:
MPU MPUB 03053557 03030NAH WP22MPUB4 Main Processing Unit controls
Price:
Regular price
$6,800.00 USD
Enterprise Firewall MPU MPUB 03053557 03030NAH WP22MPUB4 Main Processing Unit controls and manages the system UGW9811 use PGP-16 CoreNetwork
A subrack is a mandatory device and houses UGW9811 boards, including the Switching Route Units (SRUs), Switching Fabric Units (SFUs), Service Processing Units (SPUs), and Line Processing Units (LPUs).
The UGW9811 supports PGP-16, PGP-X8, and PGP-X16 subracks
Main Processing Unit (MPU) controls and manages the system, including route calculation, and device management, maintenance, and monitoring.
The MPUB can be used only in the PGP-X16 subrack.
The MPU can be used only in the PGP-16 subrack.
Technical specifications of MPUB and MPU
|
MPU Type |
Dimensions (Width x Depth x Height) |
Typical power consumption |
Maximum power consumption |
Heat Dissipation |
Weight |
|---|---|---|---|---|---|
|
MPUB |
40 mm x 520 mm x 400 mm (1.57 in. x 20.47 in. x 15.75 in.) |
85 W |
95 W |
95 W |
4 kg (8.82 lb) |
|
MPU |
30 mm x 520 mm x 400 mm (1.18 in. x 20.47 in. x 15.75 in.) |
70 W |
77 W |
77 W |
3.8 kg (8.38 lb) |
|
Item |
Description |
|---|---|
|
BOM |
03053557 03030NAH (03030NAH is an earlier BOM number and identifies the same board as 03053557.) |
|
Dimensions (Width x Depth x Height) |
40 mm x 520 mm x 400 mm (1.57 in. x 20.47 in. x 15.75 in.) |
|
Typical power consumption
NOTE:
It is the power consumption when the ambient temperature is 25°C (77°F) and the service traffic is 50% of the capacity. |
85 W |
|
Maximum power consumption
NOTE:
It is the power consumption when the ambient temperature is 50°C (122°F) and the service traffic is 100% of the capacity. |
95 W |
|
Heat Dissipation |
95 W |
|
Weight |
4 kg (8.82 lb) |
