Product:
LPUF-21 03052276 03030KJY 03030KKU
Model:
LPUF-21 03052276 03030KJY 03030KKU WP21LPUKD0 UGW9811
Description:
LPUF-21 03052276 03030KJY 03030KKU WP21LPUKD0 UGW9811
Price:
Regular price
$6,800.00 USD
LPUF-21 03052276 03030KJY 03030KKU WP21LPUKD0 UGW9811 1-port 10GBase WAN/LAN-XFP flexible card UGW9811 CoreNetwork

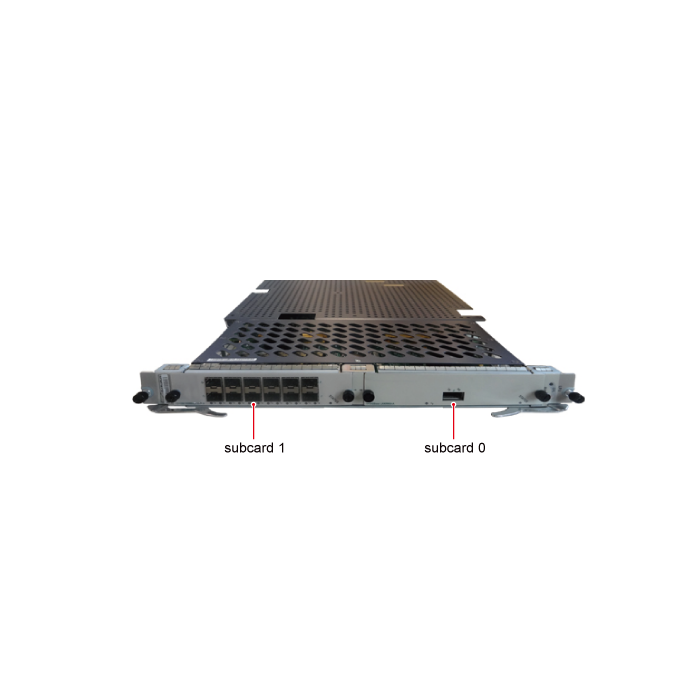

LPUF-21 provides two slots, each of which can hold an FPIC that supports hot swapping.
If no ma-defend policy is configured, users can access O&M services through physical interfaces.
LPUF-21 is used on each subrack of the PGP as a versatile board.
| Interface specifications of the LPUF-21 | ||||
| Type of the LPU | Interface Type | Interface Quantity | Transmission Rate | |
| LPUF-21 | 12-port 100/1000Base-X-SFP flexible card | GE | 12 | 1 Gbit/s |
| 1-Port 10GBase WAN/LAN-XFP Flexible Card | GE | 1 | 10 Gbit/s | |
Provides 10 GE optical interfaces through the 10 GE optical module.
1-port 10GBase WAN/LAN-XFP Flexible Card is used on the LPUF-21
|
Item |
Description |
|---|---|
|
BOM |
03052276 03030KJY (03030KJY is an earlier BOM number and identifies the same board as 03052276.) 03030KKU (03030KKU is an earlier BOM number and identifies the same board as 03052276.) |
|
Dimensions (width x depth x height) |
40 mm x 520 mm x 400 mm (1.57 in. x 20.47 in. x 15.75 in.) |
|
Typical power consumption
NOTE:
It is the power consumption when the ambient temperature is 25°C (77°F) and the service traffic is 50% of the capacity. |
180 W |
|
Maximum power consumption
NOTE:
It is the power consumption when the ambient temperature is 50°C (122°F) and the service traffic is 100% of the capacity. |
200 W |
|
Heat dissipation |
200 W |
|
Weight |
5 kg (11.03 lb) |
