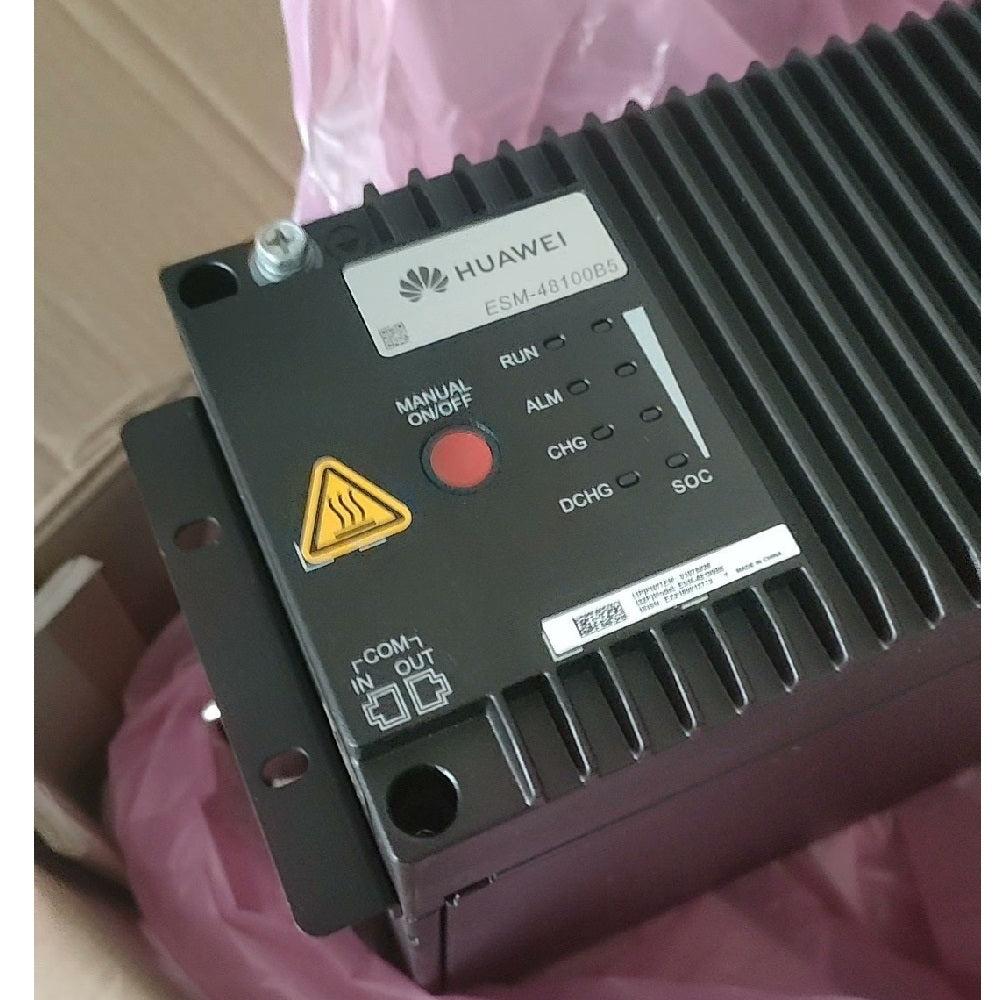

Product: Lithium-ion Battery ESM-48100B5 ESM-48100B1 Power Module
Model: Lithium Battery ESM-48100B5 01075928 ESM-48100B1 01074746 Energy Storage Power Module ESM-4850A2 ESM-4875A1 ESM-48150A1
Description: Lithium-ion Battery ESM-48100B5 01075928 ESM-48100B1 01074746 Energy Storage Power Module ESM-4850A2 ESM-4875A1 ESM-48150A1
Price:
$1,500.00 USD
Get In Touch

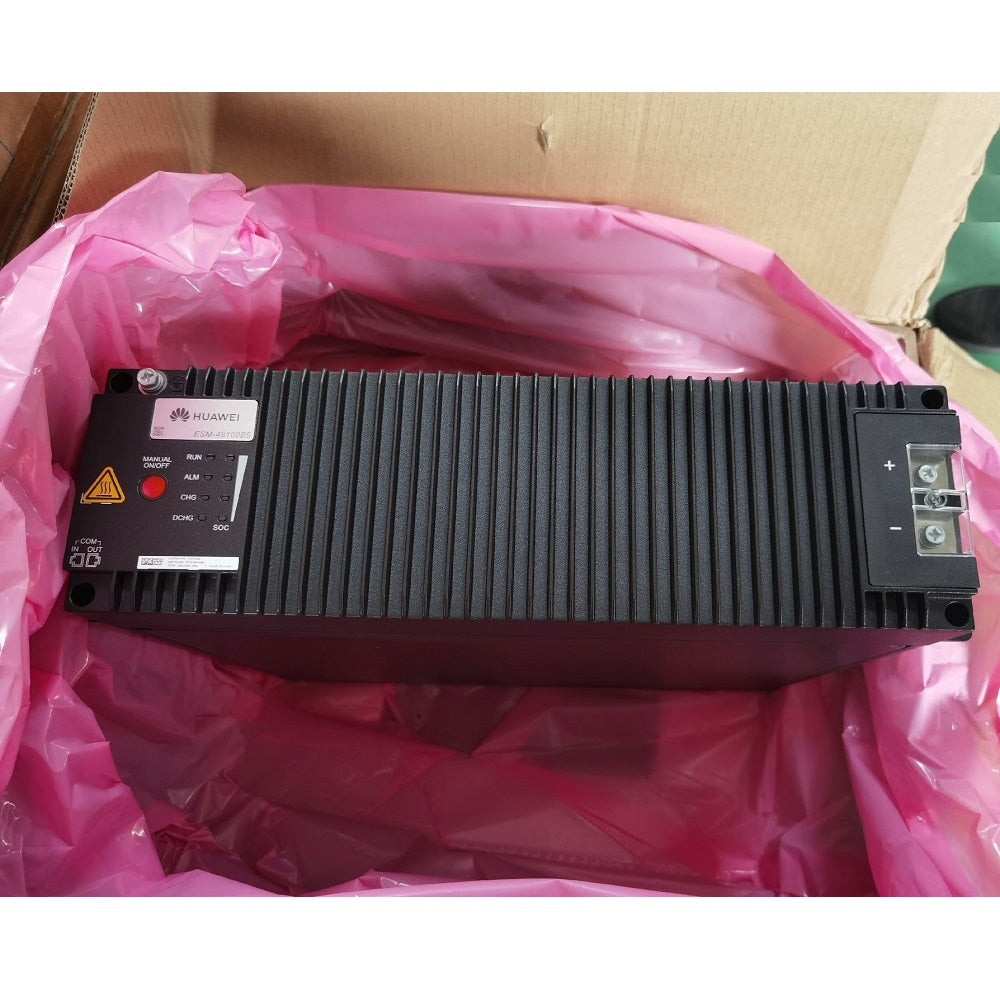

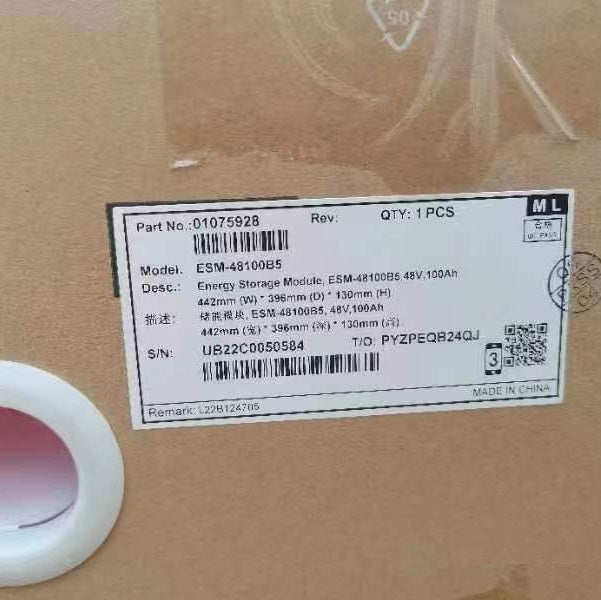

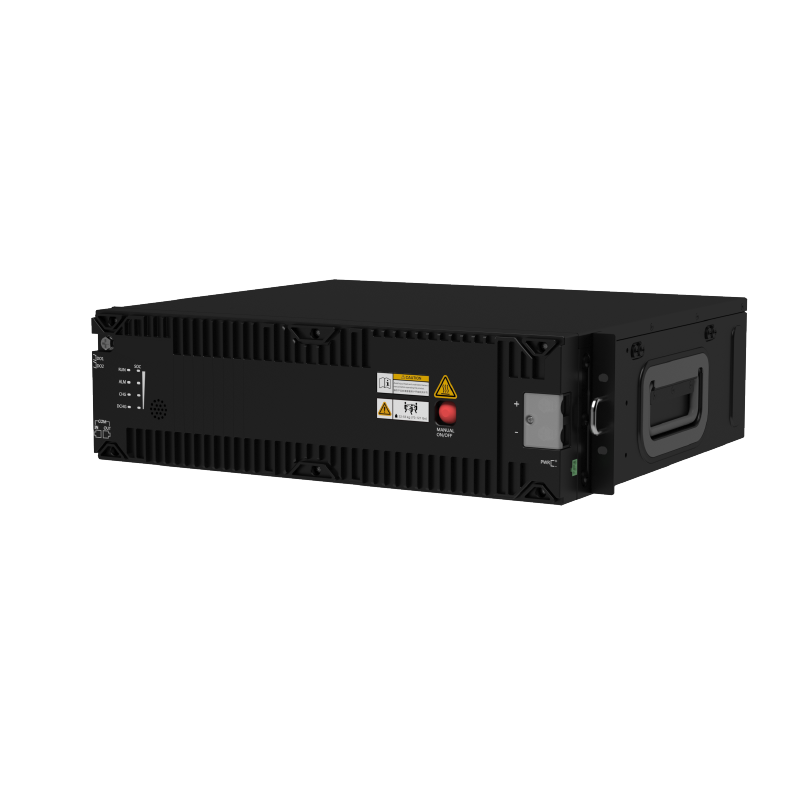

 Energy Storage Power Module Lithium-ion Battery ESM-48100B5 48V 100Ah 442mm(W)*396mm(D)*130mm(H) 01075928 04071557

ESmartLi-48-50-O 01075959-001  user manual

ESmartLi-48-150 01075632-002

ESM-4825B1 01075956

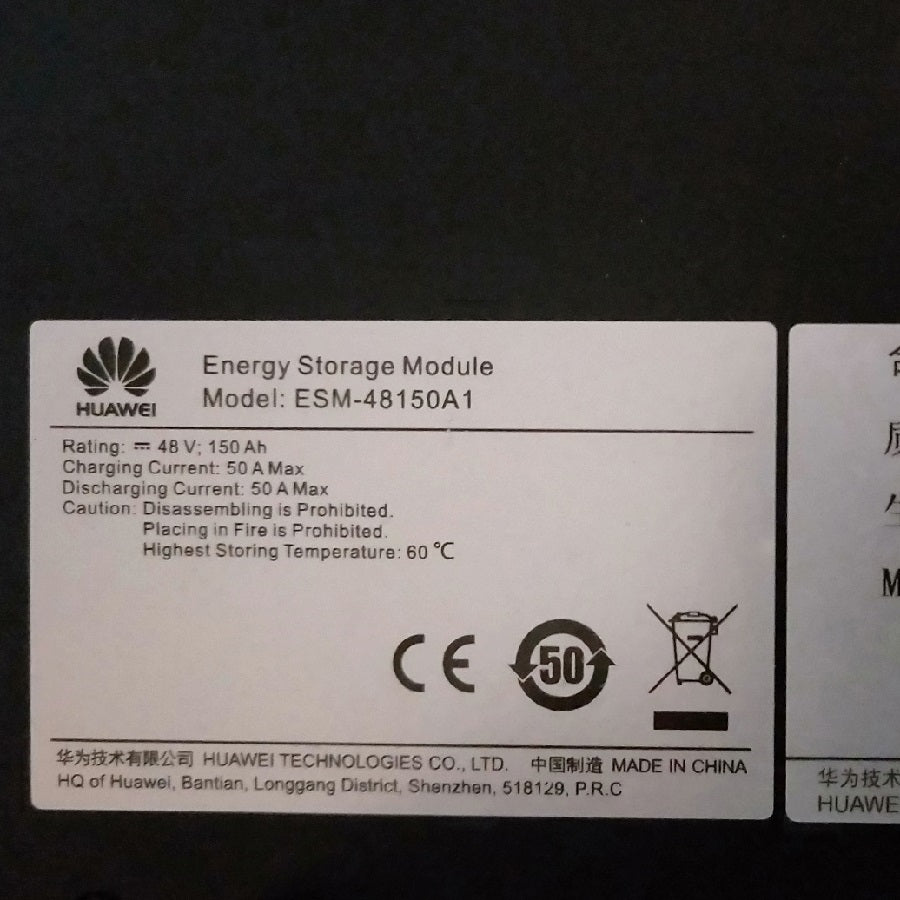

ESM-48150A1 01074121

ESM-48100B1 01074746

Lithium batteries provide backup power. When the mains is normal, the UPS charges batteries. When the mains fails, lithium batteries supply power to the UPS.

ESM-48100B5 datasheet

Item Specifications
Nominal voltage 48 V DC
Equalized charge voltage 56.4 V DC
Float charge voltage 54.5 V DC
Maximum charge/discharge current 100 A/100 A at 35°C
Maximum charge/discharge power 4800 W
Operating ambient temperature Charge: 0°C to 45°C; discharge: –20°C to +45°C
Relative humidity 5% RH–95% RH
Atmospheric pressure 61–113 kPa
Installation mode Installed in a 19-inch rack
Maintenance mode Maintained from the front
Altitude 0–4000 m (When the altitude ranges from 2000 m to 4000 m, the highest operating temperature decreases by 1°C for each additional 200 m.)
Ripple and noise ≤ 200 mV
IP rating IP20+
Dimensions (W x D x H) 442 mm x 396 mm x 130 mm (excluding mounting ears)
482 mm x 396 mm x 130 mm (including mounting ears)
Weight ≤ 43 kg



Lithium Battery ESM-48100B1 technical specifications
Item Specifications
Capacity 100 Ah
Voltage 48 V DC
Dimensions (H x W x D) 130 mm x 442 mm x 396 mm (excluding mounting ears)
Weight (one lithium battery) 43 kg
Maximum charge/discharge current 100 A/100 A@35°C (The actual charge current depends on the UPS charge capability.)
Maximum charge/discharge power 4800 W
Installation mode Rack-mounted
