Product:
Huawei ME0D0LAXXB70 BSUI-100 03054978
Model:
Huawei ME0D0LAXXB70 BSUI-100 03054978 ME60 Boards Datasheet
Description:
Huawei ME0D0LAXXB70 BSUI-100 03054978 ME60 Boards Datasheet
Price:
Regular price
$3,200.00 USD

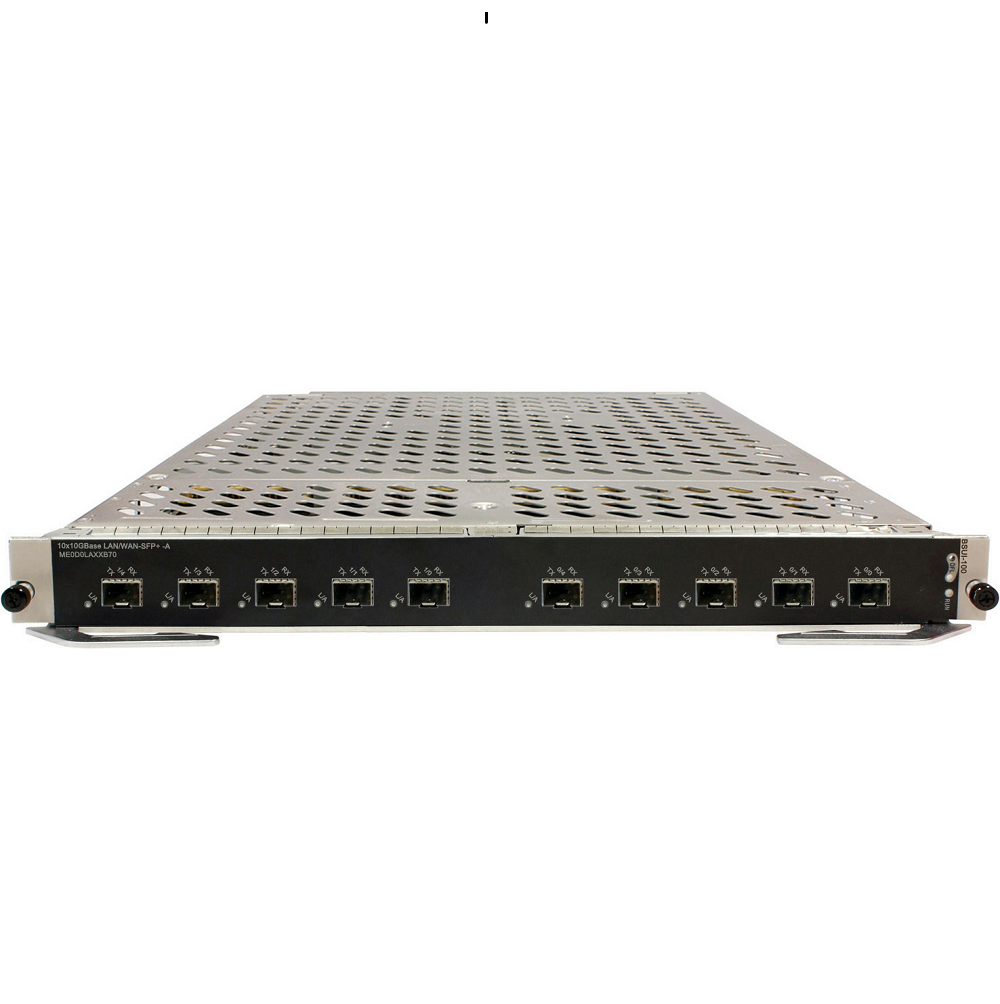

Huawei ME0D0LAXXB70 (10-Port 10GBase LAN/WAN-SFP+ Broadband Service Unit Integrated(BSUI-100))
ME0D0LAXXB70 03054978 (10-Port 10GBase LAN/WAN-SFP+ Broadband Service Unit Integrated(BSUI-100))
ME0D0LAXXE70 (10-Port 10GBase LAN/WAN-SFP+ Broadband Service Unit Integrated E(BSUI-100-E))
Basic information about the ME0D0LAXXB70 Technical specifications
| Item | Details |
|---|---|
| Description | 10-Port 10GBase LAN/WAN-SFP+ Broadband Service Unit Integrated(BSUI-100) |
| Part Number | 03054978 |
| Model | ME0D0LAXXB70 |
| Card type | Fixed Board |
| Silkscreen |
BSUI-100 10x10GBase LAN/WAN-SFP+ -A |
Technical specifications of the ME0D0LAXXB70
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Weight without packaging [kg(lb)] | 8.5 kg (18.74 lb) |
| Typical power consumption [W] | 318 W |
| Typical heat dissipation [BTU/hour] | 1031.73 BTU/hour |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) |
| Short-term operating temperature [°C(°F)] | –5°C to +55°C (23°F to 131°F) |
Basic information about the ME0D0LAXXE70
| Item | Details |
|---|---|
| Description | 10-Port 10GBase LAN/WAN-SFP+ Broadband Service Unit Integrated E(BSUI-100-E) |
| Part Number | 03054636 |
| Model | ME0D0LAXXE70 |
| Card type | Fixed Board |
| Silkscreen |
BSUI-100-E 10x10GBase LAN/WAN-SFP+ -E |
