Product:

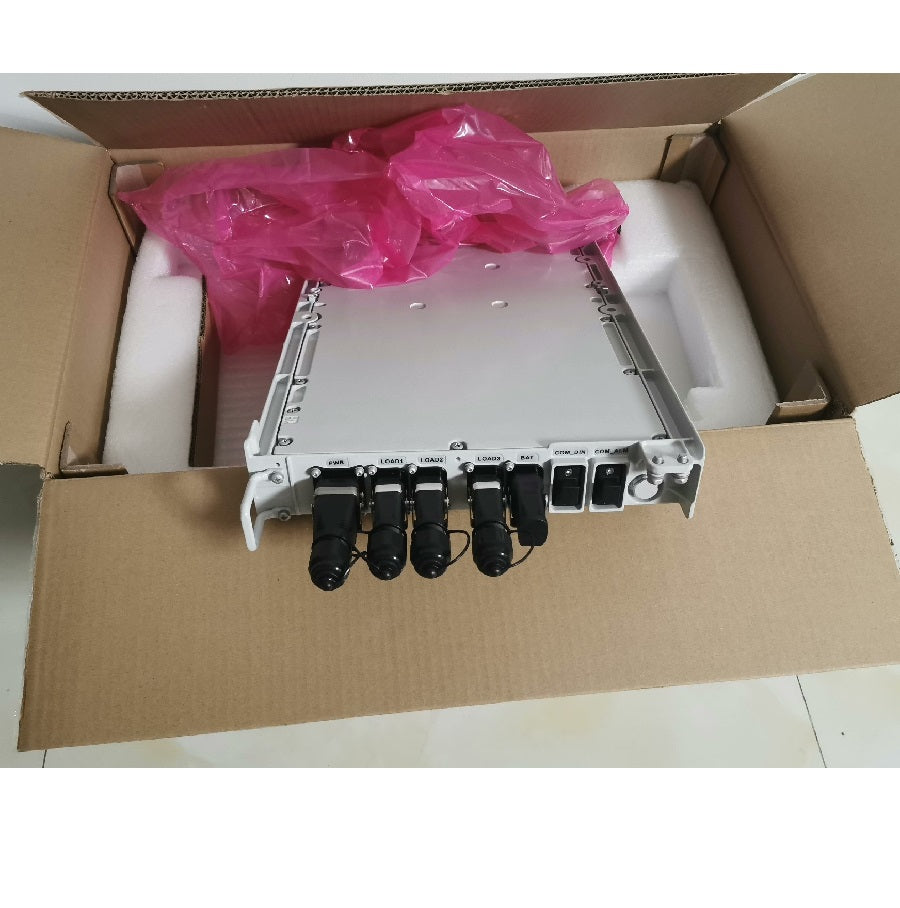

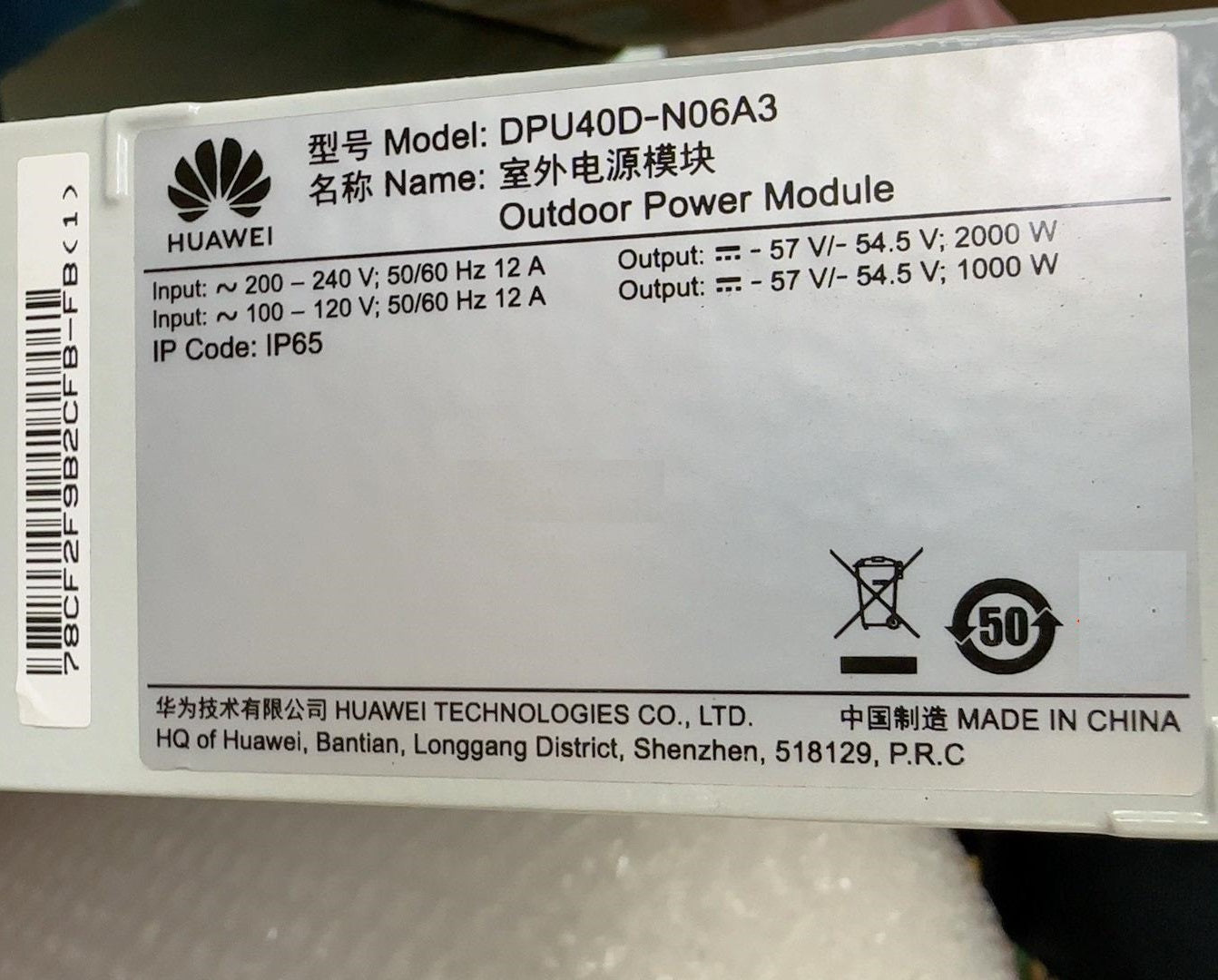

Huawei DPS Blade
Model:
DPU40D-N06A3 DBU50B-N12A1 BU20B-N12A3
Description:
Huawei DPS Blade DPU40D-N06A3 DBU50B-N12A1 BU20B-N12A3
Price:
Regular price
$6,800.00 USD
DPS Blade V100R001C50 products include the power module DPU40D-N06A3, lithiumbattery module DBU50B-N12A1, and DBU20B-N12A3, and they all meet Business Continuity
02312NGM-001/ 02312NGM-016/02312NGM-017 (220 AC to -48V DC )
Function Module DPU40D-N06A3,DPU40D-N06A3-001,2000W DistributedPower DC Unit-Support AC/HVDCInput
Standard Product;The master/slave protocolis used by northbounddefault.
OPM40-003 OPM40M Ver.C 02312NGM-003 MPW2000W48A3
OPM40M Ver.B 02312NGM-002 MPW2000W48A4
01074764
Lithium Battery,DBU50B-N12A1,120mm(W)*300mm(D)*420mm(H),48V,50Ah,Type(0C8920A0809F)
Rated discharge capacity: 3kW
01074797
Lithium Battery,DBU20B-N12A3,120mm(W)*300mm(D)*420mm(H),48V,20Ah,type(0x05091798807F)-XX
Rated discharge capacity:2.2 kW
02313FPY-002 DPU60D-N06A1 3000W DistributedPower DC Unit
01075519-002 DCDB48-300-16B Direct current Distribution unit 16 ourput
04152542 Power Cable,0.2,3*4mm^2,Black,Four-way connector,Electronic|ElectricCable,600V/1000V,ZA-RVV,3x4mm^2,Black(3Cores:Brown,Blue,Yellow/Green),32A,Outdoor Cable,Powersupply
Material list
|
No. |
Material |
Code |
|---|---|---|
|
1 |
Power supply unit (PSU) |
02311LLC |
|
2 |
Energy storage module (ESM) |
01073568 |
|
3 |
Ground cable of the PSU (16 mm2) |
25030429 |
|
4 |
AC input/output power cable |
25030386 |
|
5 |
Signal cable between the UPS and the SACU |
04080342 |
|
6 |
Power cable 650mm,6mm2,Black,PConnect2PIN01,ROV-K 2x6mm^2BELX,PConnect2PIN01 |
04151856 |
|
7 |
Signal cable between the PSU and the ESM |
04080441 |
|
8 |
Ground cable between the PSU and the ESM (10 mm2) |
04151857 |
|
9 |
Wall mounting kit |
21153226 |
|
10 |
Fitting bag (including terminals, labels, tubing, and cable ties) |
02231YSG |
05022SBY Board Software,ENJD00031,Module Equipt Test Software,Load
05022SBLBoard Software,ENJC0000H,System Difference File,Load
05022SBKBoard Software,ENJA0000P,Site Monitor Unit Controlling Software,Load
03025MJVManufactured Board,EN11PWRBK
PartNumber 01074764 DBU50B-N12A1,120mm(W)*300mm(D)*420mm(H),48V,50Ah,Type(0C8920A0809F)),CFG(FFFFFFFFFFFF)
21150763 Pole Mounting Kit Engineering InstallationKit,DKBA4.070.2852,Intergrated MountKit,SRRU,MultifunctionalInstallation,Wall and Pole
21152571-003 6L connecting kit NetworkEnergy,EngineeringinstallaionParts,DKBA41509941.ASM,InstallaionParts,M6*12 Screws ,DPSBlade,Sheetmetal,Screw
21150765-004 12 L hanging kit Engineering InstallationKit,DKBA41509257.ASM,Bracket,Fasting ScrewDemand,MultifunctionalInstallation,Wall andPole-DPS Blade
21154832 Lithium battery bracket ccessories of Cabinet orChassis, DKBA40718849,Other, Sheetmetal,Telecom Energy-BladeLithium Battery AssemblyBoard, DBU50B-N12A1
21205308 C50 lithiumbattery sunshield
21150692 Large-pole Mounting Kit
21153226 Wall-mountinghangingkit
25030386 Electronic|ElectricCable,300V/500V,60227 IEC53(RVV),3x2.5mm^2,Black(3Cores:Brown,Blue,Yellow/Green),27A,OutdoorCable,CCC,CE
25030429/25030640 Electronic|ElectricCable,450V/750V,60227 IEC02(RV),16mm^2,Yellow/Green,85A,CCC,CE 10m
04151857-001 Equipotenti al cable PowerCable,1.6M,10mm^2,Yellow/Green,OT-10mm^2-M6,H07Z-K-10^2G&Y,OT-10mm^2-M6,LSZH
04151856-001 between DPUs PowerCable,1600mm,6mm^2,Black,PConnect2PIN01,ROV-K 2x6mm^2BELX,PConnect2PIN01
04152816 PowerCable,650mm,6mm^2,Black,14191521,ROV-K 2x6mm^2BELX,PConnect2PIN02
04152816-001 PowerCable,1600mm,6mm^2,Black,PConnect2PIN02,ROV-K 2x6mm^2BELX,PConnect2PIN01,XX
04152817 between DPUsand DBUs PowerCable,650mm,16mm^2,Black,PConnect2PIN02,N2XCY &ZRJYVP-2x16mm^2-D,PConnect2PIN02,XX
04152817-001 between DBUsand DBUs PowerCable,1600mm,16mm^2,Black,PConnect2PIN02,N2XCY &ZRJYVP-2x16mm^2-D,PConnect2PIN02,XX
04080454 RJ45-RJ45 betweencascadedlithiumbatteries Monitor&AlarmCable,DBU20B-N12A2Blade Li-battery seriescommunicationwire,1.6M,8-Bit8PIN,Shielded,CrystalModelConnector,CAT5ESFTP 4PR24AWG,8-Bit8PIN,Shielded,CrystalModel Connector
04080441 DB9-RJ45 betweenDPUs andDBUs Monitor&AlarmCable,Li BatteryDBU20B-N12A2RS485&CANComm.with DPSPSU,1.6M,8-Bit8PIN,Shielded,CrystalModelConnector,CAT5ESFTP 4PR 24AWG,DB9ConnectorWaterproof CapSeal(Side Waterproof)
04080335 DB9-DB15 betweencascadedPSUs Monitor&AlarmCable,DPU30D-N06A1Comm. serieswire,1.6M,(DB15M+D15Waterproof CapSeal(SideWaterproof)),CAT5ESFTP 4PR24AWG,(DB9M+DB9Waterproof CapSeal(SideWaterproof),NO
04080336 Monitor&AlarmCable,DPU30D-N06A1comm. with RRUwire,5M,(DB15M+D15Waterproof Cap Seal(SideWaterproof)),(CC8P0.5PB(S)),(DB15M+D15Waterproof Cap Seal(SideWaterproof)),with DBconnector waterproof cap
Used for communicatin with Huawei FDD RRUs through in-band anddry contact networking
04080419 Monitor&AlarmCable,DPU Comm. withTDD RRU wire,5M,D9Male-I+D9 WaterproofPlastic Shell,CAT5E SFTP4PR 24AWG,DB15Connector WaterproofCap Seal(Side Waterproof
04080420 Monitor&AlarmCable,DPU comm. withBBU3900 wire,5M,CAT6Crystal ModelConnector,CAT5E SFTP4PR 24AWG,DB15Connector WaterproofCap Seal(SideWaterproof),Power supply
04080421 Monitor&AlarmCable,DPU and BBU3910Acontactor alarmwire,5M,DB15 ConnectorWaterproof Cap Seal(SideWaterproof),CAT5E SFTP4PR 24AWG,DB15Connector WaterproofCap Seal(Side Waterproof)
04080342 Monitor&AlarmCable,DPU30D-N06A1 Drycontact alarmwire,5m,DB15 ConnectorWaterproof Cap Seal(SideWaterproof),SymmetryTwist Cable,ConductorCross Section 0.25mm^2
Monitoring cables for Huawei RRUsBOM Code
04080336 TDD RRU Dry contact + RS485 5m
04080419 TDD RRU(DC) Dry contact + RS485 5m
04080336 TDD RRU(DC) Dry contact + RS485 5m
04080416 BBU3900 Dry contact 5m
04080420 BBU3900 RS485 5M
04080421 BBU3910A RS485 5M
04080342 Third-partymonitoring Dry contact +5m
