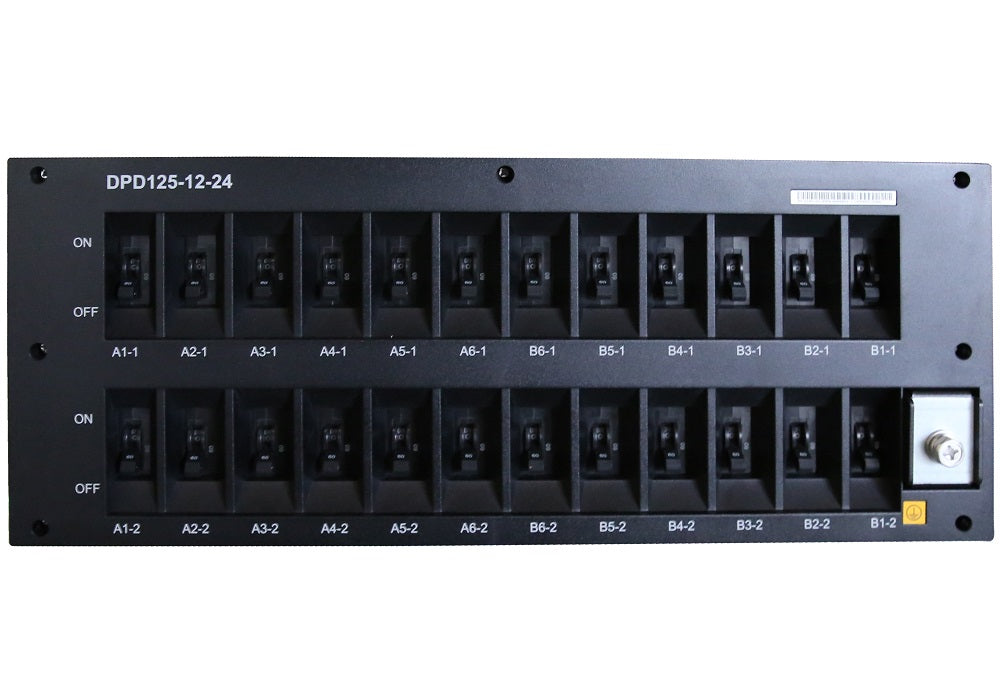

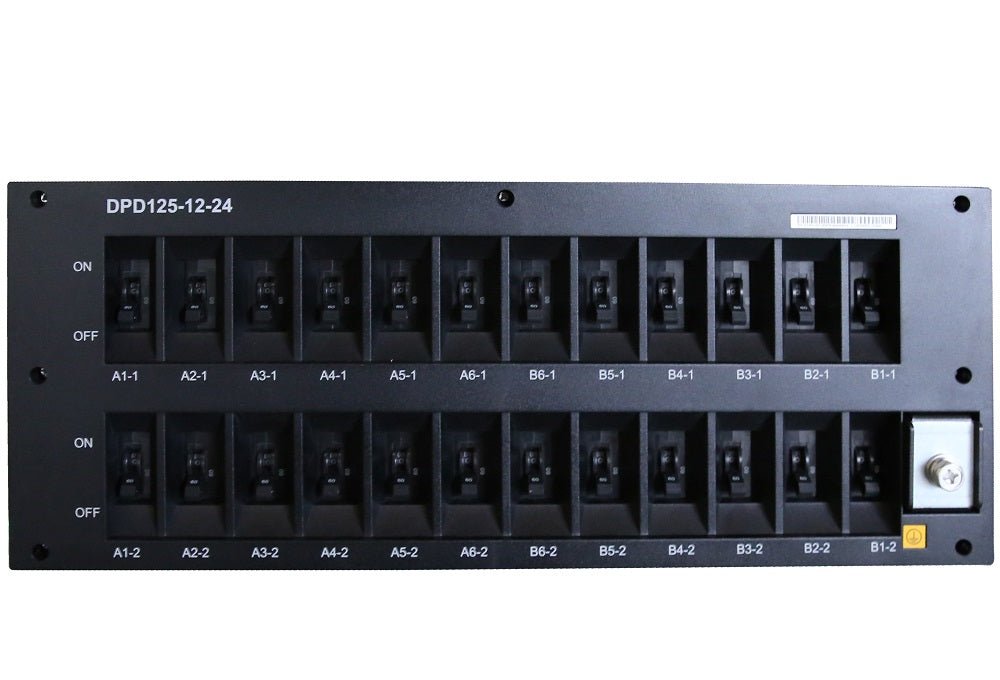

Huawei  DPD125-12-24 DC Power Distribution Box 02122145 CR5MDPD12500

APD32-12-24 (APD32-12-24 AC Power Distribution Unit) APD32-4-24 (APD32-4-24 AC Power Distribution Unit) APD63-2-24 (APD63-2-24 AC Power Distribution Unit) APD63-6-24 (APD63-6-24 AC Power Distribution Unit) CR5MDPD12500 (DPD125-12-24 DC Power Distribution Box) CR8MP2K3PHC0 (Three-phase AC Power Distribution Unit) CR8MP2KHDCC0 (380VDC HVDC and 220V AC Power Distribution Unit)DACS power Distribution Box CR5PPWRBXA70 02351RRJ APD63-4-12 DACS Distribution Box

Benefits

• This product is a 4 U (177.8 mm) power distribution box that complies with the IEC297 standard.
• It can convert 12 DC input lines into 24 DC output lines.
• It includes A and B power distribution areas. Each area has 6 DC input lines and each DC input line is converted into 2 output lines.
• It can be equipped with air breakers whose output current ranges from 60 A. Air breaker ports are pluggable bolts and easy to replace.
• The grounding copper bar in the power distribution box can provide 6 input lines and 24 output lines.
• CR5MDPD12500 Physical parameters

  Item		Description
  Dimensions (H x W x D)		175 mm x 442 mm x 740 mm (6.89 in. x 17.4 in. x 29.13 in.)
  BOM		02122145
  Installation platform		Huawei NE68E, N610E, A68 and A610 cabinet
  Weight		30 kg (60.15 lb)
  DC input voltage	Rated voltage	-48 Vdc/-60 Vdc
  	Maximum voltage range	-40 Vdc to -72 Vdc
  Input	Maximum current	6 x 125 A+6 x 125 A (no copper fitting) 3 x 250 A+3 x 250 A (with copper fitting)
  	Terminal	M6 (no copper fitting) M8 (with copper fitting)
  	Maximum cable diameter	50 mm2 (no copper fitting) 95 mm2 (with copper fitting)
  Output	Maximum current	12×60 A+12×60 A
  	Terminal	M6
  	Maximum cable diameter	16 mm2
  Air breaker	Changeable	60 A (default)
  Ambient temperature	Long term	0°C–45°C
  	Short term	-5°C–55°C
  Storage temperature		-40°C–70°C
  Ambient humidity	Long term	5% RH to 85% RH, no condensing
  	Short term	5% RH to 95% RH, no condensing
  Relative storage humidity		0% RH to 95% RH, no condensing

DPD125-12-24 Technical specifications
