Product:
S5700
Model:
03021JYM ES5D00X4SA00
Description:
4 10 Gig SFP+ interface card(used in S5700HI series)
Price:
Regular price
$1,500.00 USD
Sale price
$1,500.00 USD
Regular price
$2,500.00 USD

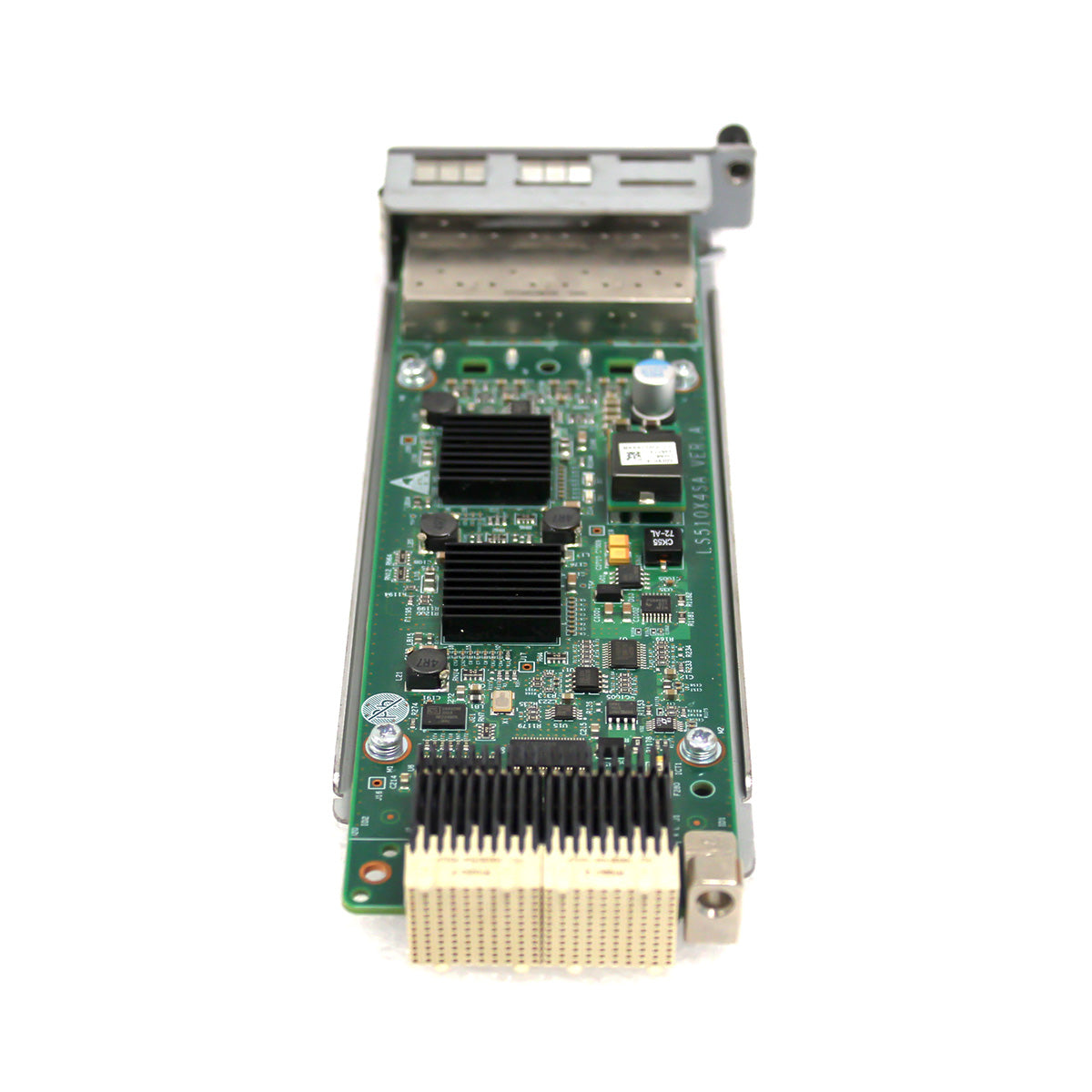

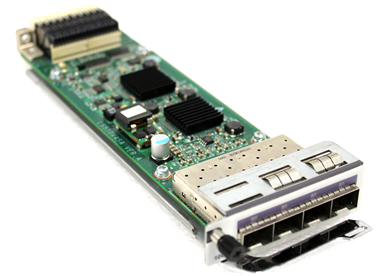

Huawei Campus Switch & WLAN S5700 03021JYM ES5D00X4SA00 (4-Port GE SFP/10GE SFP+ Front Optical Interface Card)
Applicable switch models
|
Card |
Switch Model |
|---|---|
|
ES5D00X4SA00 |
|
Functions
|
Function |
Description |
|---|---|
|
Basic function |
Provides four 10GE SFP+ optical ports respectively for data access and line-rate switching. |
|
Enhanced service |
The S5700-HI powers on or off the ES5D00X4SA00, detects whether the ES5D00X4SA00 is installed or not, and manages PHY chips and optical ports on the ES5D00X4SA00. They provide hardware-based OAM and BFD for the switch. |
|
Hot swapping |
Supported |
|
Service ports for stacking |
The service ports on the ES5D00X4SA00 can be used as stack ports on an S5700-HI switch.
NOTE:
The S5700-HI has supported service port-based stacking since V200R003C00. |
Specifications of the ES5D00X4SA00
|
Item |
Description |
|---|---|
|
Physical specifications |
|
ES5D000X2S00 (2-Port 10GE SFP+ Front Optical Interface Card) ES5D000X4S01 (4-Port 10GE SFP+ Front Optical Interface Card) ES5D000G4S01 (4-Port GE SFP Front Optical Interface Card) ES5D00G4SA01 (4-Port GE SFP Front Optical Interface Card) ES5D00X2SA00 (2-Port GE SFP/10GE SFP+ Front Optical Interface Card) ES5D00X4SA00 (4-Port GE SFP/10GE SFP+ Front Optical Interface Card) ES5D00G4SC00 (4-Port GE SFP Front Optical Interface Card) ES5D21G08S00 (8-Port GE SFP Rear Optical Interface Card) ES5D21G08T00 (8-Port GE Rear Electrical Interface Card) ES5D21X02S00 (2-Port GE SFP/10GE SFP+ Rear Optical Interface Card) ES5D21G16S00 (16-Port GE SFP Front Optical Interface Card) ES5D21G16T00 (16-Port GE Front Electrical Interface Card) ES5D21Q02Q00 (2-Port 40 Gig QSFP+ Rear Interface Card) ES5D21L04Q00 (4-Port 40GE QSFP+ Optical Interface Card) ES5D21Q04Q01 (4-Port 40 Gig QSFP+ Rear Interface Card) ES5D21X04S00 (4-Port 10GE SFP+ Rear Optical Interface Card) ES5D21X04S01 (4-Port 10 GE SFP+ Rear Interface Card) ES5D21X02S01 (2-Port 10 Gig SFP+ Rear Interface Card, Used in S5720-EI Series) ES5D21X02T01 (2-Port 10 Gig RJ45 Rear Interface Card, Used in S5720-EI Series) ES5D21X08S00 (8-Port 10GE SFP+ Rear Optical Interface Card) ES5D21X08T00 (8-Port 10GBASE-T RJ45 Rear Interface Card) S7X08000 (02312URW/02312URW-002: 8-Port 10GE SFP+ or 2-Port 25GE SFP28 Optical Interface Card (Only Ports 1 and 2 Support 25GE)) S7Y08000 (02312URV/02312URV-002: 8-Port 25GE SFP28 Optical Interface Card) S7Q02001 (02313UBW: 2-port 40GE QSFP+ interface card) S7Q02001 (02313UBW-002: 2-port 40GE QSFP+ interface card) S7C02000 (2-port 100GE QSFP28 interface card) ES5D21VST000 (Dedicated Stack Card with 2*QSFP+ Interface) ES5D00ETPC00 (Stack Rear Card) ES5D00ETPB00 (Extended Rear Card)
CX7E1FANA Fan Module FAN-028A-B Fan Module FAN-40EA-B Fan Module FAN-023A-B (Fan Box (B, Fan Panel Side Exhaust)) FAN-031A-B (Fan Box (B, Fan Panel Side Exhaust)) FAN-031A-F (Fan Box (F, Fan Panel Side Intake)) FAN-060B-B (Fan Box (B, Fan Panel Side Exhaust))
PAC-60WA-L (60 W AC Power Module) LS5M100PWA00/ES0W2PSA0150 (150 W AC Power Module) LS5M100PWD00/ES0W2PSD0150 (150 W DC Power Module) PAC-350WA-B (350 W AC Power Module) W0PSA2500 (250 W AC PoE Power Module) W0PSA5000/PAC-500WA-BE (500 W AC PoE Power Module) W2PSA0580 (580 W AC PoE Power Module) PDC-650WA-BE (650 W DC PoE Power Module) PAC1000D5412 (1000 W AC PoE Power Module) W2PSA1150 (1150 W AC PoE Power Module) PAC60S12-AR (60 W AC&240 V DC Power Module) PAC150S12-R (150 W AC Power Module) W0PSA1701 (170 W AC Power Module) ES5M0PSD1700 (170 W DC Power Module) PDC180S12-CR (180 W DC Power Module) PDC-350WA-B (350 W DC Power Module) PAC-600WA-B (600 W AC Power Module) PAC600S12-CB (600 W AC&240 V DC Power Module) PAC600S12-DB (600 W AC&240 V DC Power Module) PAC600S12-EB (600 W AC&240 V DC Power Module) PAC600S56-CB (600 W PoE AC&240 V DC Power Module (Back to Front, Power panel side exhaust)) PAC600S56-EB (600 W PoE AC&240 V DC Power Module (66mm Width Case, Back to Front, Power panel side exhaust)) PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module) PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module) PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module) PAC1000S56-EB (1000 W PoE AC&240 V DC Power Module (66 mm Width Case, Back to Front, Power panel side exhaust)) PDC1000S56-CB (1000 W PoE DC Power Module) PDC1000S12-DB (1000 W DC Power Module) PDC1000S56-EB (1000 W PoE DC Power Module (66 mm Width case, Back to Front, Power panel side exhaust))
PAC240S56-CN (240 W PoE AC&HVDC Power) PAC-260WA-E (260 W AC Power Module) AD-120100B0W (Adapter Power Supply,AD-120100B0W,English-12W,Level 6) AD-120100E0W (Adapter Power-AD-120100E0W-Eurpoe-12W-Erp6-White) AD-120100U0W (Adapter Power-AD-120100U0W-America-12W-DOE6) HW-120100D0D (Adapter,-40degC,55degC,90V,300V,12V/1A,C8 2pin/2.1*5.5*9.5 H Plug,Desktop adapter,black) AD-560090D0D (Adapter Power-AD-560090D0D-Desktop-50.4W-ERPVI) DCADP-56V-1A07 (Adapter Power-56V/1.07A-Desktop-60W-CoC V5 tier2) AD-540278D0D (Adapter Power-AD-540278D0D-Desktop-150W-ErP 6-White) HW-560268D0D (Adapter-HW-560268D0D-Tabletop-150W-ERP6) RPS1800 Redundant Power Supply (6 DC Output Ports, 12V Total Output Power 140W, 48V Total Output Power 1600W) LS5W2PSA0870 (870 W PoE Power Module, Rectifier 15 A)
