DCDU16D-02 02122720 WD2E5DCDU16D2 DCDU16D 02122430 WD2E5DCDU16D DCDU16D BBU RRU PDU DC power distribution unit (PDU)

A direct current distribution unit 16D-02 (DCDU16D-02) provides -48 V DC power for othercomponents in a cabinet. A DCDU16D-02 is 1 U high and can be installed in a 19-inch rack orany of the following cabinets: APM5930, APM30H, TMC11H, BTS3900/BTS3900L,BTS5900/BTS5900L, OMB (Ver.C), IMB03, and IMB05

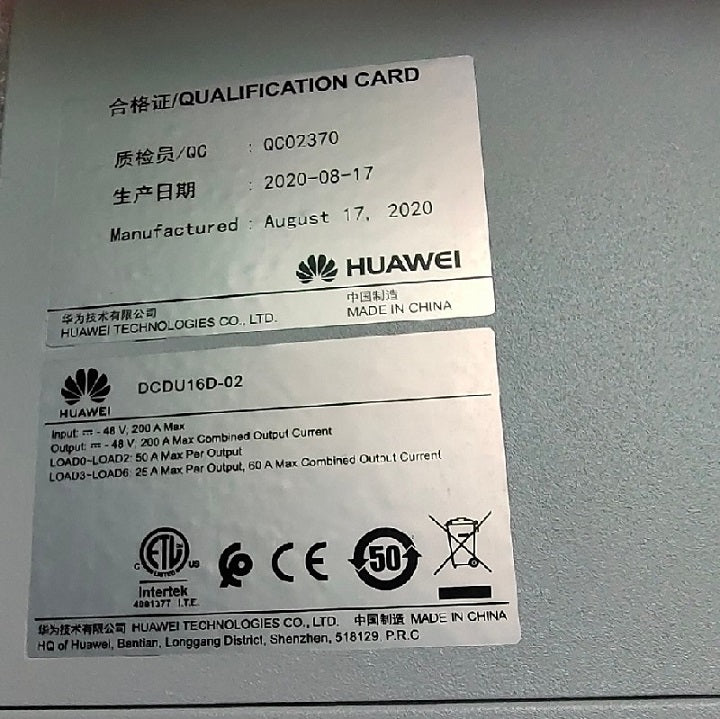

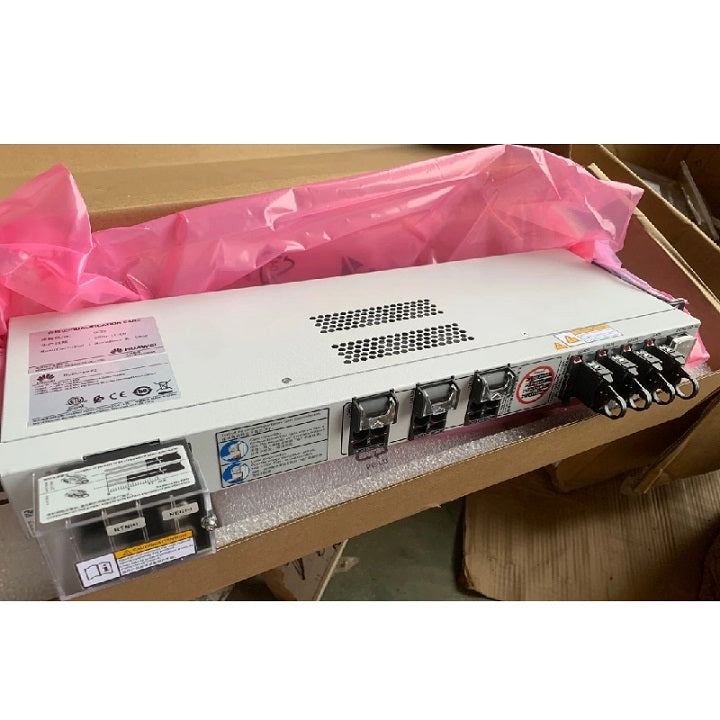

DCDU16D-02 Technical Specifications

The following table lists the technical specifications of a DCDU16D-02.

Technical specifications of a DCDU16D-02 Item Specifications

Dimensions (H x W x D)A DCDU16D-02 is 1 U high with a case structure and can beinstalled in a 19-inch cabinet or rack. The DCDU16D-02dimensions are as follows:43.6 mm x 442 mm x 150 mm (1.72 in. x 17.40 in. x 5.91in.) (without mounting ears)43.6 mm x 482.6 mm x 150 mm (1.72 in. x 19 in. x 5.91 in.)(with mounting ears)

Weight 2 kg (4.41 lb)

Input voltage and current Input voltage: -48 V DC   ,Input current: 200A

-48 V output power:

 3x50 A circuit breakers are used for the power distribution.(The output current of one circuit cannot exceed 50 A.)

4x30 A fuses are used for the power distribution. (Theoutput current of one circuit cannot exceed 25 A, and thetotal current cannot exceed 60 A.)

Operating temperature:  -40°C to +60°C (-40°F to +140°F)

Ingress protection rating :  IP20

Surge protection specifications : Surge voltage on the -48 V DC power port
