Product: 03050602 WCSU SF32WCSU0
Model: MOSOFTX3000 03050602 WCSU SF32WCSU0 UMG8900 ATCA OSTA 2.0 SGSN GGSN
Description: MOSOFTX3000 03050602 WCSU SF32WCSU0 UMG8900 ATCA OSTA 2.0 SGSN GGSN
Price:
$3,800.00 USD
Get In Touch

 CoreNetwork MOSOFTX3000 03050602 WCSU SF32WCSU0 UMG8900 ATCA OSTA 2.0 SGSN GGSN CSOFTX3000 CoreNetwork

CSOFTX3000 MOSOFTX3000  cabinets Full configuration

The CSOFTX3000 adopts Huawei's standard 19-inch N68-22 cabinets.

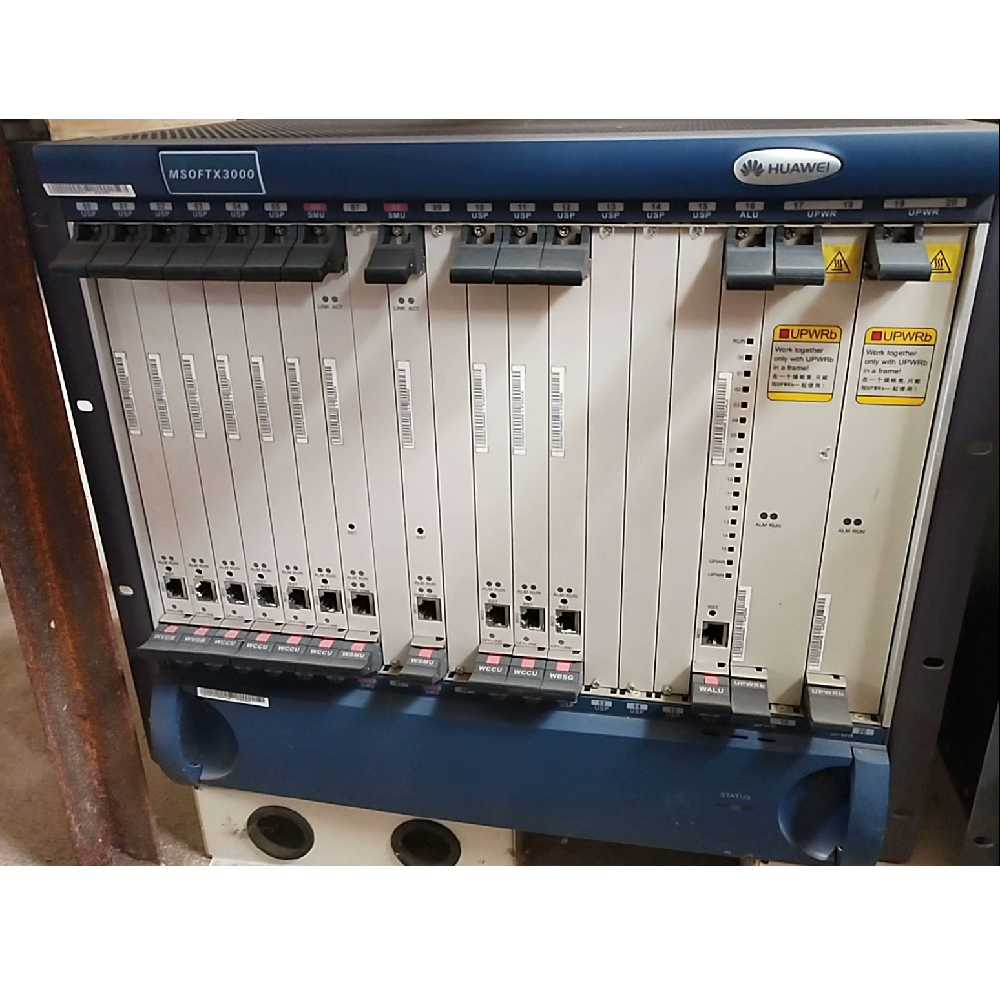

CSOFTX3000 MOSOFTX3000   basic subrack Configuration of boards

CSOFTX3000  MOSOFTX3000  expansion subrack Configuration of boards

The CSOFTX3000 provides a variety of internal and external interfaces.

CSOFTX3000 service processing cabinets Configuration

CSOFTX3000 integrated management cabinet

CSOFTX3000 Logical structure

CSOFTX3000 MOSOFTX3000  Hardware structure

CSOFTX3000 MOSOFTX3000  Boards list:

03050111 WBFI SF31WBFI0
03050145 WHSC SF31WHSC0
03050148 WSIU SF31WWSIU0
03050151 WALU SF31WALU0
03050597 WVDB SF32WVDB0
03050599 WSMU SF32WSMU
03050600 WIFM SF32WIFM0
03050601 WCDB SF32WCDB0
03050602 WCSU SF32WCSU0
03050606 WCCU SF32WCCU0

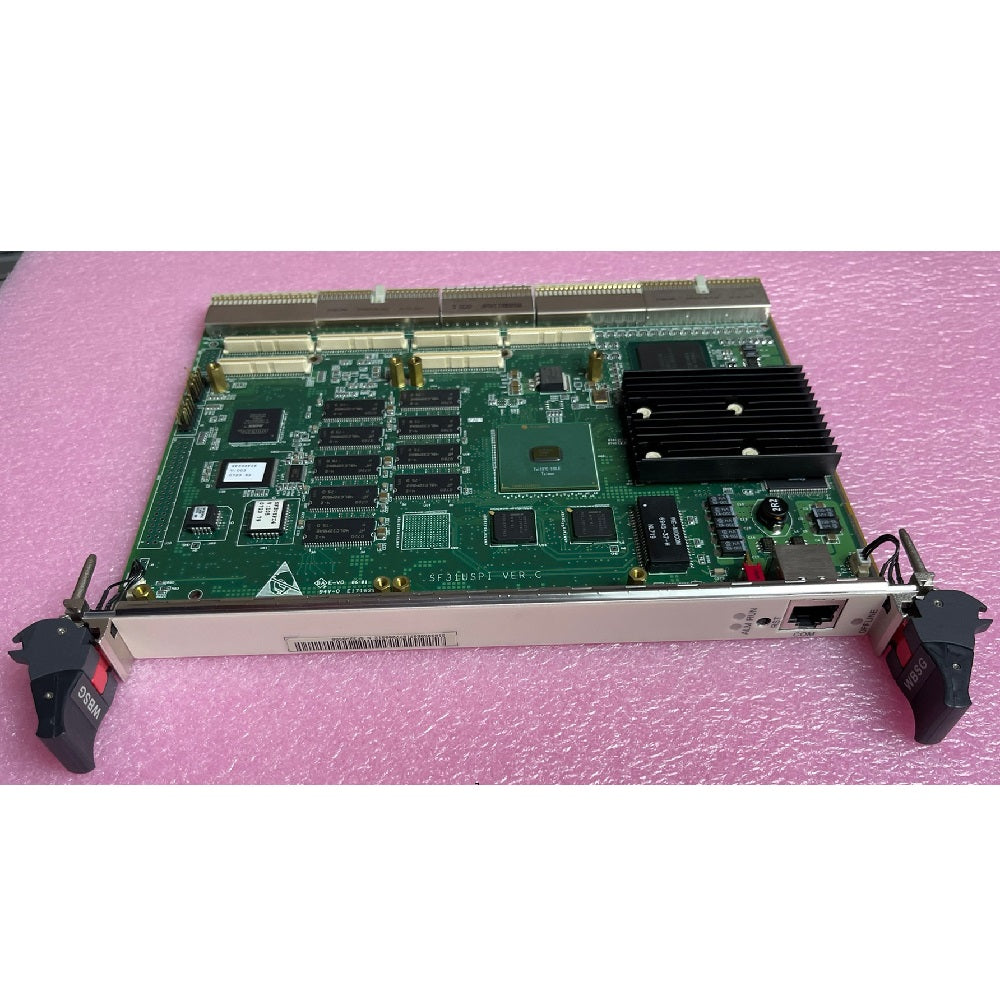

03050607 WBSG SF32WBSG0
03050608 WMGC SF32WMGC0
03050709 WEAM SF32WEAM0
03050932 WEPI SF32EPI0
03050933 WCKI SF32WCKI0
03050955 WEAM SF35WEAMO
03051103 WBFI SF31WBFI0
03051105 WIFMc SF35WIFM0
03051107 WBSGc SF35WBSG0
03051108 WVDBc SF35WVDB0
03051110 WCCUc SF35WCCU0
03052042 WSMUc SF35WSMU0
WSGU WBAI WAFM
02312525 UPWRb K3M3UPWR

Board

Position

Description

Remarks



WCSU



Basic subrack and expansion subrack



Wireless calling control unit and signaling process unit

Front-inset board operating in backup mode

Mandatory



WCCU



Basic subrack and expansion subrack



Wireless calling control unit

Front-inset board operating in backup mode

Optional



WBSG

Basic subrack and expansion subrack



Broadband signaling gateway

Front-inset board Mandatory



WSGU



Basic subrack



Signaling gateway unit

Front-inset board Optional



WCKI



Basic subrack



Clock interface unit

Back-inset board operating in backup mode

Mandatory



WIFM



Basic subrack



IP forward module

Front-inset board operating in backup mode

Mandatory



WAFM



Basic subrack



ATM forward module

Front-inset board operating in backup mode

Optional



WSMU



Basic subrack and expansion subrack



System management unit

Front-inset board operating in backup mode

Mandatory



WCDB



Basic subrack



Central database board

Front-inset board operating in backup mode

Mandatory



WVDB



Basic subrack and expansion subrack



VLR database board

Front-inset board operating in backup mode

Optional



WMGC



Basic subrack



Media gateway control unit

Front-inset board operating in backup mode

Optional



WALU

Basic subrack and expansion subrack



Alarm unit

Front-inset board Mandatory



UPWR



Basic subrack and expansion subrack



PSM power module

Front- and back-inset board operating in 2+2 redundancy

Mandatory



WEPI

Basic subrack and expansion subrack



E1_pool interface unit

Back-inset board Optional



WBFI



Basic subrack



Back insert FE interface unit

Back-inset board Mandatory



WBAI



Basic subrack



Back insert ATM interface unit

Back-inset board Optional



WHSC

Basic subrack and expansion subrack



Hot-swap and control unit

Back-inset board Mandatory



WSIU

Basic subrack and expansion subrack



System interface unit

Back-inset board Mandatory
