BBU5900A Hardware datasheet BTS5900 DBS3900 UMPT UBBP USCUb UPEU UEIU

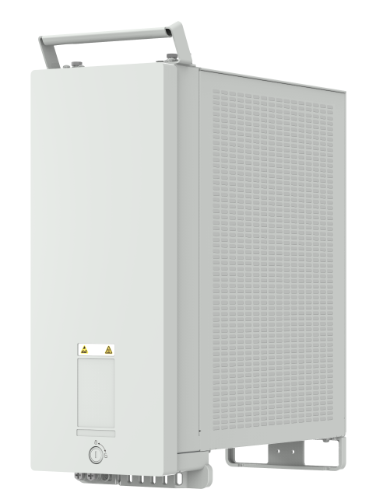

BBU5900A Function
A BBU5900A performs the following functions:
- Provides ports for connecting to the transmission equipment, RF modules, USB devices, external reference clock, and LMT or MAE to transmit signals, perform automatic base station software upgrade, receive reference clock signals, and support BBU maintenance on the LMT or MAE.
- Manages the entire base station system. The management involves uplink and downlink data processing, signaling processing, resource management, and operation and maintenance.
BBU5900 Equipment specifications
| Equipment specifications | |
| DC input power | Input power type: –48 V DC Operating voltage range: –38.4 V DC to –57 V DC |
| AC input power | Input power type: 110 V AC single-phase Operating voltage range: 90 V AC to 135 V AC |
| Input power type: 220 V AC single-phase Operating voltage range: 176 V AC to 290 V AC |
|
| Dimensions (H x W x D) | 400 mm x 160 mm x 380 mm (15.75 in. x 6.30 in. x 14.96 in.) |
| Weight | ≤ 20 kg (44.10 lb) in full configuration |
| Typical power consumption | 210 W |
| Operating temperature | With solar radiation: –40°C to +50°C (–40°F to +122°F) |
| Relative humidity | 5% RH to 100% RH |
| Ingress protection rating | IP55 |
| Altitude | 4000 m (13123.36 ft) Starting from the altitude of 1800 m, the temperature limit degrades 1°C when the altitude increases 100 m. |
| Noise sound power level | ETS 300 753 3.1 |
| ≤ 7.2 bels | |
| Storage time | Installed and used within one year |
| Security standards | IEC/EN/UL60950-1 IEC/EN/UL60950-22 IEC/EN/UL62368-1 |
| Operating environment | ETSI EN 300019-1-4 V2.2.1 (2014-04) Class 4.1: "Non-weatherprotected locations" |
| Storage environment | ETSI EN300019-1-1 V2.2.1 (2014-04) Class1.2 "Weather protected, not temperature-controlled storage locations" NOTE: The validity period is one year. The product can function properly within the validity period if the storage environment meets the preceding standards. |
| Surge protection | IEC 62305-1 Protection against lightning - Part 1: General principles IEC 62305-3 Protection against lightning - Part 3: Physical damage to structures and life hazard IEC 62305-4 Protection against lightning - Part 4: Electrical and electronic systems within structures ITU-T K.35 Bonding configurations and earthing at remote electronic sites ITU-T K.56 Protection of radio base stations against lightning discharges ITU-T K.97 Lightning protection of distributed base stations ETSI EN 300 253 Environmental Engineering(EE): Earthing and bonding configuration inside telecommunications centers YD/T 2324-2011: Lightning protection requirements and test methods for radio base stations GB 50689-2011 Code for design of lightning protection and earthing engineering for telecommunication bureaus (stations) |

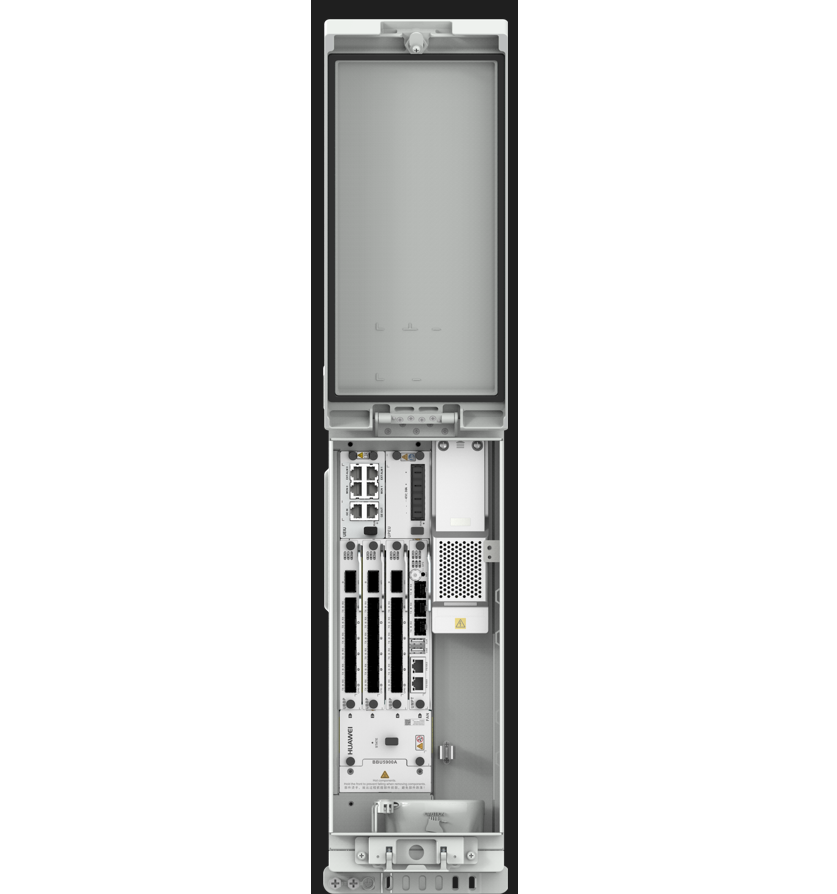

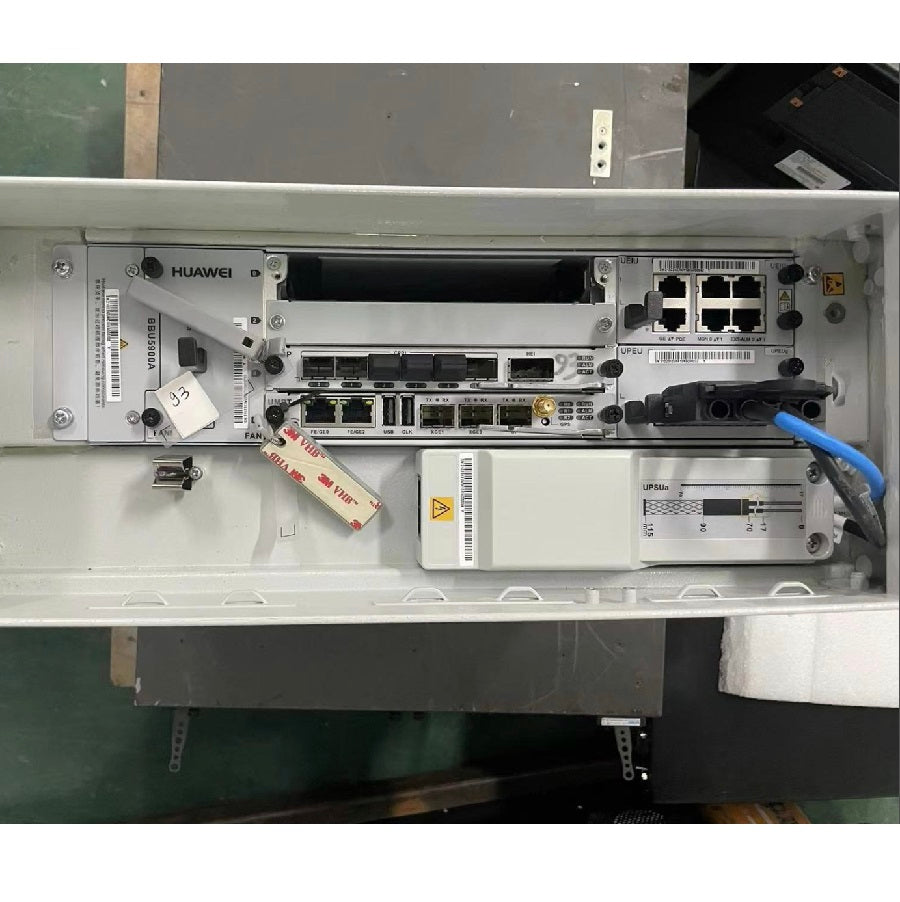

BBU5900A AC Boards supported
| Board Type | Boards Supported by the BBU5900A |
| Main control board | UMPTe (UMPTe1/UMPTe2)a |
| UMPTg (UMPTg1/UMPTg2/UMPTg3) | |
| UMPTga (UMPTga1/UMPTga2/UMPTga3) | |
| Baseband processing unit | UBBPg(UBBPg1/UBBPg1a/UBBPg2/UBBPg2a/UBBPg3b/UBBPg3/UBBPg4) |
| UBBPe (UBBPe1/UBBPe2/UBBPe3/UBBPe4/UBBPe5/UBBPe6/UBBPe18) | |
| UBBPd (UBBPd1/UBBPd2/UBBPd3/UBBPd4/UBBPd5/UBBPd6/UBBPd9) | |
| UBBPem | |
| UBBPf1 | |
| UBBPex2 | |
| UBBPf3 | |
| Fan module | FANf |
| FANh | |
| Power module | UPEUh |
| Environment monitoring unit | UEIUd |
| Power surge protection module | UPSUb |
| a: The UMPTe is applicable only to areas above -20°C (-4 °F). | |
| Board Type | Boards Supported by the BBU5900A DC |
| Main control board | UMPTe (UMPTe1/UMPTe2)a |
| UMPTg (UMPTg1/UMPTg2/UMPTg3) | |
| UMPTga (UMPTga1/UMPTga2/UMPTga3) | |
| Baseband processing unit | UBBPg(UBBPg1/UBBPg1a/UBBPg2/UBBPg2a/UBBPg3b/UBBPg3/UBBPg4) |
| UBBPe (UBBPe1/UBBPe2/UBBPe3/UBBPe4/UBBPe5/UBBPe6/UBBPe18) | |
| UBBPd (UBBPd1/UBBPd2/UBBPd3/UBBPd4/UBBPd5/UBBPd6/UBBPd9) | |
| UBBPem | |
| UBBPf1 | |
| UBBPex2 | |
| UBBPf3 | |
| Fan module | FANf |
| FANh | |
| Power module | UPEUg |
| Environment monitoring unit | UEIUd |
| Power surge protection module | UPSUa |
| a: The UMPTe is applicable only to areas above -20°C (-4 °F). | |
BBU5900A (AC) is installed on a pole, RRUs are remotely installed, and the external AC power distribution equipment supplies power to the BBU5900A (AC)
BBU5900A (DC) and OPM200 are installed on a pole or wall, RRUs are remotely installed, and the OPM200 supplies power to the BBU5900A (DC) and RRUs
BU5900A (DC)+1 OPM200+ RRUs
BBU5900A (DC)+1 OPM200+2 IBBS50Ls+ RRUs
