Product: 03056153 LPUF-202A01 KW5PLPUF2021
Model: LPUF-202A01 LPUF-202 2*100GBase LAN-CFP-A

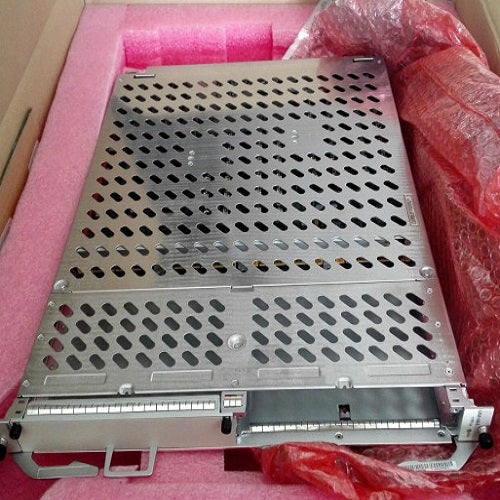

Description: LPUF-202A01 2*100GBase LAN-CFP-A 2-port 100GBase-CFP integrated line processing unit
Price:
$6,800.00 USD
Get In Touch

Enterprise Firewall 03056153 LPUF-202A01 KW5PLPUF2021 LPUF-202 2*100GBase LAN-CFP-A UGW9811 GGSN9811 PGP-X8 PGP-X16  subracks CoreNtwork

The ports of a 2-port 100GBase-CFP integrated line processing unit (LPUF-202A01) can work only in LAN mode and support only 100G CFP optical modules.

The 2-port 100GBase-CFP integrated line processing unit (LPUF-202A01) can be installed only in PGP-X8 and PGP-X16 subracks.

Technical specifications of the 2-Port 100GBase-CFP integrated line processing unit (LPUF-202A01)

Item

Specifications

BOM

03056153

Dimensions (width x depth x height)

40 mm x 532 mm x 400 mm (1.57 in. x 20.94 in. x 15.75 in.)

Typical power consumption

NOTE:

It is the power consumption when the ambient temperature is 25°C (77°F) and the service traffic is 50% of the capacity.

455 W

Maximum power consumption

NOTE:

It is the power consumption when the ambient temperature is 50°C (122°F) and the service traffic is 100% of the capacity.

522.2 W

Heat dissipation

522.2 W

Weight

11.1 kg (24.48 lb)
