Product:
03055316 03030UUQ WP23L2XFC0 LPUF-51
Model:
03055316 03030UUQ WP23L2XFC0 LPUF-51 P51-2-Portx10GBase LAN/WAN-SFP+-A
Description:
03055316 03030UUQ WP23L2XFC0 LPUF-51 P51-2-Portx10GBase LAN/WAN-SFP+-A
Price:
Regular price
$6,800.00 USD
Enterprise Firewall 03055316 03030UUQ WP23L2XFC0 LPUF-51 P51-2-Port 10GBase LAN/WAN-SFP+-A UGW9811 PGP-X8 PGP-X16 subracks CoreNetwork
A subrack is a mandatory device and houses UGW9811 boards, including the Switching Route Units (SRUs), Switching Fabric Units (SFUs), Service Processing Units (SPUs), and Line Processing Units (LPUs).

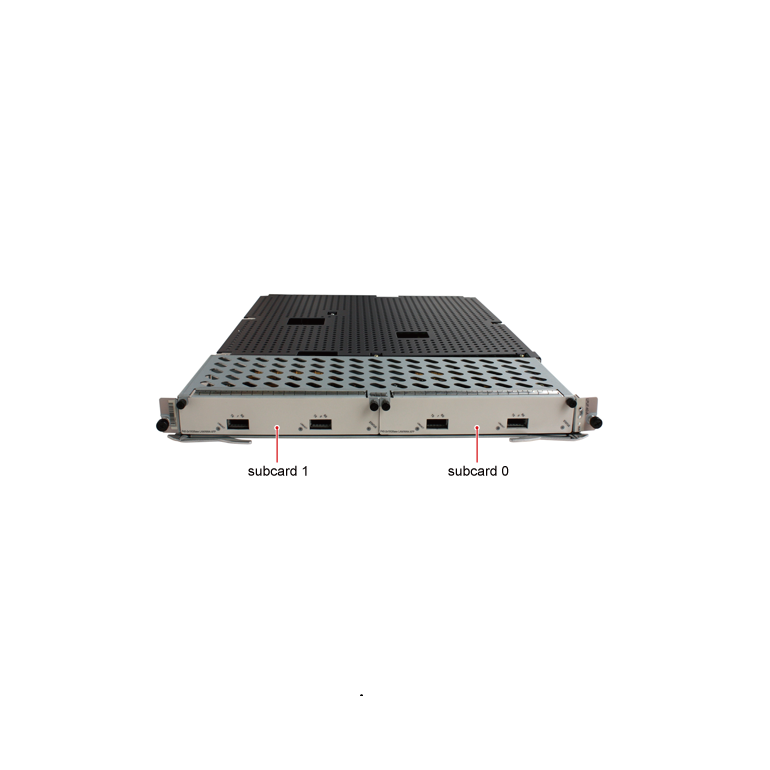

Flexible Card Line Processing Unit(LPUF-51,two sub-slots) which enhances networking flexibi
lity and provides low-cost and customized solutions supports packet forwarding at the line speed. Flexible Card Line Processing Unit(LPUF-51,two sub-slots) provides two 1/2-width slots, and each slot holds one FPIC.
The LPUF-51 supports L3VPN.
An FPIC supports the following functions:
-
Hot swap
-
Automatic recovery of configurations
-
Intermixing with other types of FPICs
If no ma-defend policy is configured, users can access O&M services through physical interfaces.
The LPUF—51 is used on the PGP-X8, PGP-X16 or PGP-16 subracks.
| Interface specifications of the LPUF-51 | ||||
| Type of the LPU | Interface Type | Interface Quantity | Transmission Rate | |
| LPUF-51 | 24-Port 100/1000Base-X-SFP Flexible Card (P51) | GE,FE auto negotiation | 24 | 1 Gbit/s |
| 2-Port 10GBase LAN/WAN-SFP+ Flexible Card (P51) | 10GE | 2 | 10 Gbit/s | |
The two ports of the 2-Port 10GBase LAN/WAN-SFP+ Flexible Card (P51) can be configured to work in LAN or WAN mode (supporting 1588v2) and use SFP+ optical module, This card is used with the Flexible Card Line Processing Unit(LPUF-51,two sub-slots). The 2-Port 10GBase LAN/WAN-SFP+ Flexible Card (P51) occupies one 1/2-width flexible card slot and supports hot swap
2-Port 10GBase LAN/WAN-SFP+ Flexible Card (P51) is used on the LPUF-51.
|
Item |
Specifications |
|---|---|
|
BOM |
03055316 03030UUQ (03030UUQ is an earlier BOM number and identifies the same board as 03055316.) |
|
Dimensions (width x depth x height) |
37.2 mm x 193 mm x 178.65 mm (1.46 in. x 7.60 in. x 7.03 in.) |
|
Typical power consumption
NOTE:
It is the power consumption when the ambient temperature is 25°C (77°F) and the service traffic is 50% of the capacity. |
25 W |
|
Maximum power consumption
NOTE:
It is the power consumption when the ambient temperature is 50°C (122°F) and the service traffic is 100% of the capacity. |
27.5 W |
|
Heat dissipation |
27.5 W |
|
Weight |
0.88 kg (1.94 lb) |
