Product:
03055314 03030PLW LPUF-51 UGW9811
Model:
03055314 03030PLW WP23LPUF50CA00 LPUF-51 P51-2-port x10G p51-24port Flexible Card UGW9811
Description:
03055314 03030PLW LPUF-51 WP23LPUF50CA00 UGW9811
Price:
Regular price
$6,800.00 USD
Enterprise Firewall 03055314 03030PLW LPUF-51 WP23LPUF50CA00 Flexible Card Line Processing Unit UGW9811 PGP-X8 PGP-X16 subracks CoreNetwork
A subrack is a mandatory device and houses UGW9811 boards, including the Switching Route Units (SRUs), Switching Fabric Units (SFUs), Service Processing Units (SPUs), and Line Processing Units (LPUs).

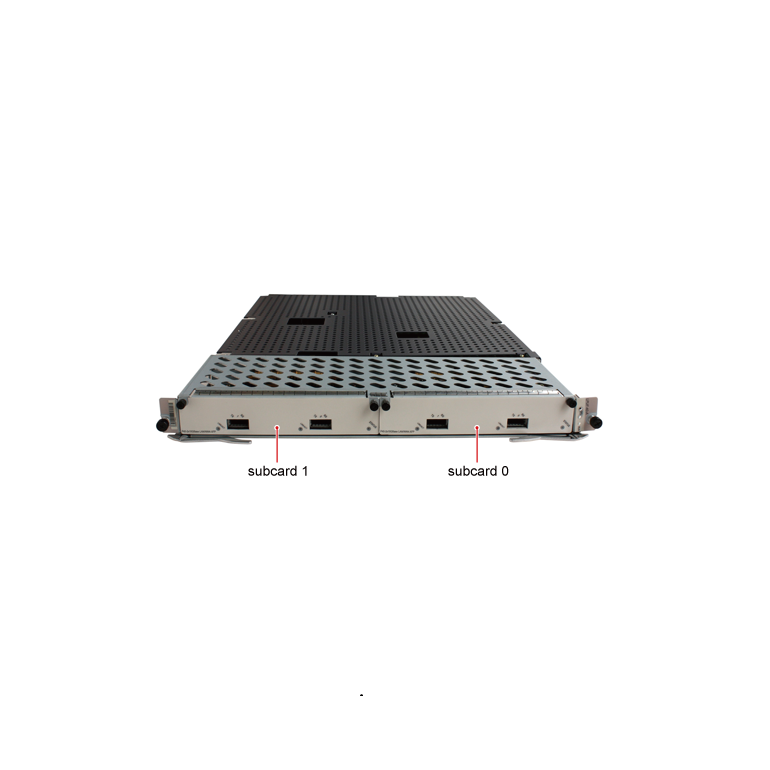

Flexible Card Line Processing Unit(LPUF-51,two sub-slots) which enhances networking flexibility and provides low-cost and customized solutions supports packet forwarding at the line speed. Flexible Card Line Processing Unit(LPUF-51,two sub-slots) provides two 1/2-width slots, and each slot holds one FPIC.
The LPUF-51 supports L3VPN.
An FPIC supports the following functions:
-
Hot swap
-
Automatic recovery of configurations
-
Intermixing with other types of FPICs
If no ma-defend policy is configured, users can access O&M services through physical interfaces.
The LPUF—51 is used on the PGP-X8, PGP-X16 or PGP-16 subracks.
| Interface specifications of the LPUF-51 | ||||
| Type of the LPU | Interface Type | Interface Quantity | Transmission Rate | |
| LPUF-51 | 24-Port 100/1000Base-X-SFP Flexible Card (P51) | GE,FE auto negotiation | 24 | 1 Gbit/s |
| 2-Port 10GBase LAN/WAN-SFP+ Flexible Card (P51) | 10GE | 2 | 10 Gbit/s | |
|
Item |
Description |
|---|---|
|
BOM |
03055314 03030PLW (03030PLW is an earlier BOM number and identifies the same board as 03055314.) |
|
Dimensions (width x depth x height) |
40 mm x 520 mm x 400 mm (1.57 in. x 20.47 in. x 15.75 in.) |
|
Typical power consumption
NOTE:
It is the power consumption when the ambient temperature is 25°C (77°F) and the service traffic is 50% of the capacity. |
180 W |
|
Maximum power consumption
NOTE:
It is the power consumption when the ambient temperature is 50°C (122°F) and the service traffic is 100% of the capacity. |
198 W |
|
Heat dissipation |
198 W |
|
Weight |
6.55 kg (14.44 lb) |
