Product:
03054359 03030PJY WP23LPUF100CA00
Model:
03054359 03030PJY WP23LPUF100CA00 UGW9811 GGSN9811
Description:
03054359 03030PJY WP23LPUF100CA00 UGW9811 GGSN9811
Price:
Regular price
$6,800.00 USD

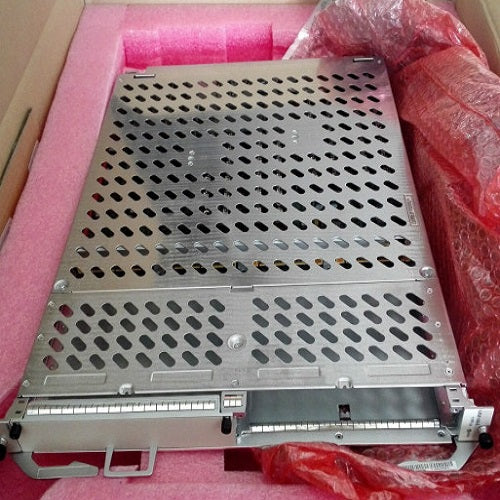

Enterprise Firewall 03054359 03030PJY LPUF-101 WP23LPUF100CA00 Flexible Card Line Processing UGW9811 GGSN9811 PGP-X8 PGP-X16 subracks CoreNetwork
A subrack is a mandatory device and houses UGW9811 boards, including the Switching Route Units (SRUs), Switching Fabric Units (SFUs), Service Processing Units (SPUs), and Line Processing Units (LPUs).
The LPUF-101 which enhances networking flexibility and provides low-cost and customized solutions supports packet forwarding. The LPUF-101 provides two 1/2-width slots, and each slot holds one FPIC.
An FPIC supports the following functions:
-
Hot swap
-
Automatic recovery of configurations
-
Intermixing with other types of FPICs
If no ma-defend policy is configured, users can access O&M services through physical interfaces.
| Interface specifications of the LPUF-101 | ||||
| Type of the LPU | Interface Type | Interface Quantity | Transmission Rate | |
| LPUF-101 | 24-Port 100/1000Base-X-SFP Flexible Card (P101) | GE,FE auto negotiation | 24 | 1 Gbit/s |
| 5-Port 10GBase LAN/WAN-SFP+ Flexible Card (P101) | 10GE | 5 | 10 Gbit/s | |
|
Item |
Description |
|---|---|
|
BOM |
03054359 03030PJY (03030PJY is an earlier BOM number and identifies the same board as 03054359.) |
|
Dimensions (width x depth x height) |
40 mm x 520 mm x 400 mm (1.57 in. x 20.47 in. x 15.75 in.) |
|
Typical power consumption
NOTE:
It is the power consumption when the ambient temperature is 25°C (77°F) and the service traffic is 50% of the capacity. |
260 W |
|
Maximum power consumption
NOTE:
It is the power consumption when the ambient temperature is 50°C (122°F) and the service traffic is 100% of the capacity. |
286 W |
|
Heat dissipation |
286 W |
|
Weight |
6.8 kg (14.99 lb) |
