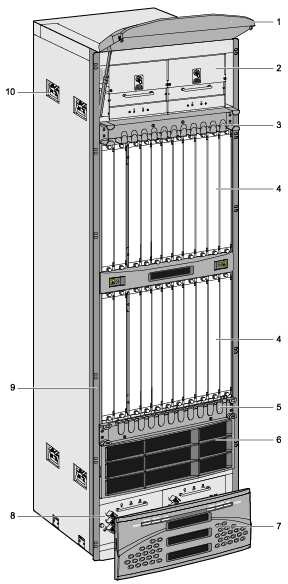

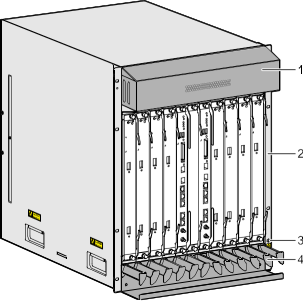

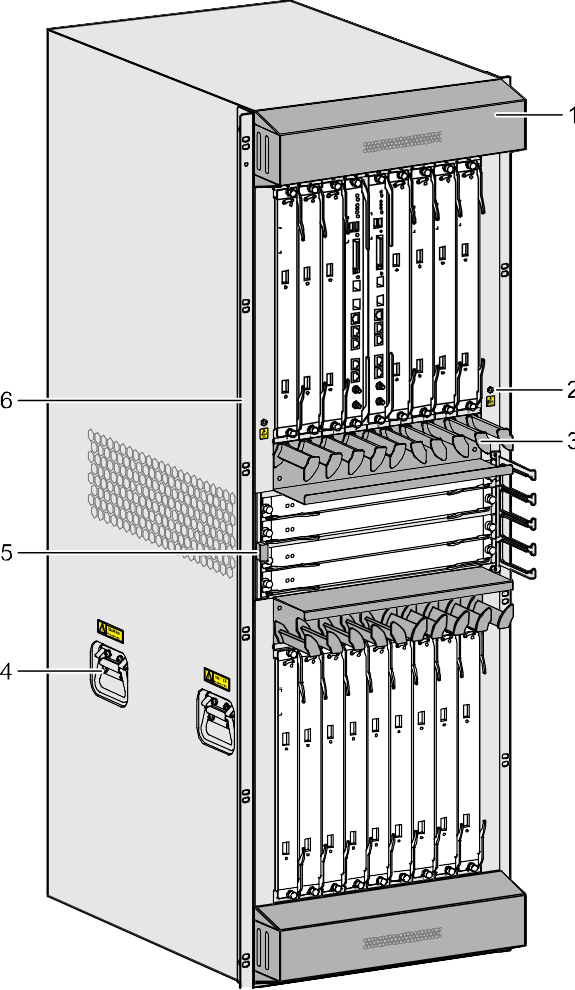

A subrack is a mandatory device and houses UGW9811 boards, including the Switching Route Units (SRUs), Switching Fabric Units (SFUs), Service Processing Units (SPUs), and Line Processing Units (LPUs).

100Base-FX/1000Base-X-SFP Optical Interface LPU provides the following functions:

• Provides GE optical interfaces through the GE optical module.

• Provides FE optical interfaces through the FE optical module.

• Provides 10M/100M/1000M auto-sensing electrical interfaces through the electrical module.

• Supports intermixing of all modules.

• If no ma-defend policy is configured, users can access O&M services through physical interfaces.

  24-port 100Base-FX/1000Base-X-SFP optical interface LPU has 24 interfaces that are used to receive and send 100 or 1000 Mbit/s Ethernet signals, the signal type is depended on the optical or electrical module on the interface. The interface number ranges from 0 to 23 from left to right and from top to bottom.

• 24-port 100Base-FX/1000Base-X-SFP Optical Interface LPU is used on the PGP-8 or PGP-16 subracks.

  Interface attributes of the 24-port 100Base-FX/1000Base-X-SFP optical interface LPU

  Attributes	Description
  Connector type	LC/PC
  Optical interface attributes	Compliant with the selected SFP optical module. For the attributes of SFP modules,
  Working mode	Full-duplex
  Compliant standard	IEEE 802.3-2002
  Frame format	Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
  Network protocol	IP

  Technical specifications of the 10G and 12-port 100Base-FX/1000Base-X-SFP hybrid interface board

  Item	Specifications
  BOM	03052278
  Dimensions (width x depth x height)	40 mm x 520 mm x 400 mm (1.57 in. x 20.47 in. x 15.75 in.)
  Typical power consumption NOTE: It is the power consumption when the ambient temperature is 25°C (77°F) and the service traffic is 50% of the capacity.	180 W
  Maximum power consumption NOTE: It is the power consumption when the ambient temperature is 50°C (122°F) and the service traffic is 100% of the capacity.	200 W
  Heat dissipation	200 W
  Board weight	About 6.69 kg (14.75 lb)
