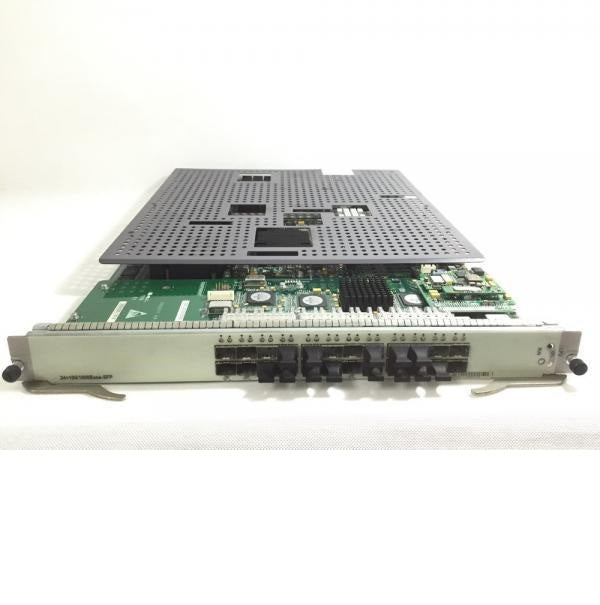

Product: LPU 03052278 WP21EFFFG0
Model: 24-port 100Base-FX/1000Base-X-SFP optical interface LPU
Description: 03052278 WP21EFFFG0 24-port 100Base-FX/1000Base-X-SFP optical interface LPU UGW9811 PGP-8 PGP-16
Price:
$6,800.00 USD
Get In Touch

Enterprise Firewall STEf1s STEf1 03056821 smart traffic explorer f1 UGW9811 PGP-X8 PGP-X16  subracks CoreNetwork  CoreNetwork

A subrack is a mandatory device and houses UGW9811 boards, including the Switching Route Units (SRUs), Switching Fabric Units (SFUs), Service Processing Units (SPUs), and Line Processing Units (LPUs).

The 24-port 10Base-T/100Base-TX-RJ45 electrical interface LPU has 24 RJ45 interfaces that are used to receive and send 10 or 100 Mbit/s Ethernet electrical signals. The interface number ranges from 0 to 23 from left to right and from top to bottom.

The 100Base-FX/1000Base-X-SFP Optical Interface LPU is used on the PGP-8 or PGP-16 subracks.

10Gand 12-port 100Base-FX/1000Base-X-SFP hybrid interface board  Technical specifications

Item

Specifications

BOM

03052278

Dimensions (width x depth x height)

40 mm x 520 mm x 400 mm (1.57 in. x 20.47 in. x 15.75 in.)

Typical power consumption

NOTE:

It is the power consumption when the ambient temperature is 25°C (77°F) and the service traffic is 50% of the capacity.

180 W

Maximum power consumption

NOTE:

It is the power consumption when the ambient temperature is 50°C (122°F) and the service traffic is 100% of the capacity.

200 W

Heat dissipation

200 W

Board weight

About 6.69 kg (14.75 lb)



Interface attributes of the 24-port 10Base-T/100Base-TX/1000Base-T-RJ45 electrical interface LPU

Attributes

Description

Connector type

RJ45

Working mode

10M/100M/1000M auto-sensing, half-duplex and full-duplex

Cable specification

  • When the interface works at 10 Mbit/s or 100 Mbit/s, category 5 unshielded twisted pair (UTP) cable is recommended.

  • When the interface works at 1000 Mbit/s, super category 5 shielded twisted pair (STP) cable is recommended.

Compliant standard

IEEE 802.3-2002

Frame format

Ethernet_II, Ethernet_SAP, and Ethernet_SNAP

Network protocol

IP



 Interface attributes of the 24-port 100Base-FX/1000Base-X-SFP optical interface LPU

Attributes

Description

Connector type

LC/PC

Optical interface attributes

Compliant with the selected SFP optical module. For the attributes of SFP modules, see 1.25 Gbit/s SFP/eSFP Optical Module

Working mode

Full-duplex

Compliant standard

IEEE 802.3-2002

Frame format

Ethernet_II, Ethernet_SAP, and Ethernet_SNAP

Network protocol

IP
